Question

Three particles having equal masses are placed at the three corners of an equilateral triangle of side a. Find the moment of inertia of the system relative to the axis passing through any one particle and perpendicular to the plane of the triangle.

✓

Answer

Let the mass of each particle at the vertex of the equilateral traingle be. The moment of inertia of a particle at a vertex through which the required axis is passing will be zero because its distance from the axis is zero. And there will be moment of inertia due to the particles on the remaining two vertices since the particles placed at the other two vertices have equal mass and are at equal distances from the axis, the moment of inertia of both the particles will be equal. Moment of inertia of one particle $=m(a)^2=m a^2$

Moment of inertia of both particles $=2 ma ^2$ Hence, moment of inertia of the system
$=0+2 m a^2=2 m a^2 .\quad \text { Ans. }$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from PART - 1 CH - 6 System of Particles and Rotational Motion→PART - 1 CH - 6 System of Particles and Rotational Motion — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

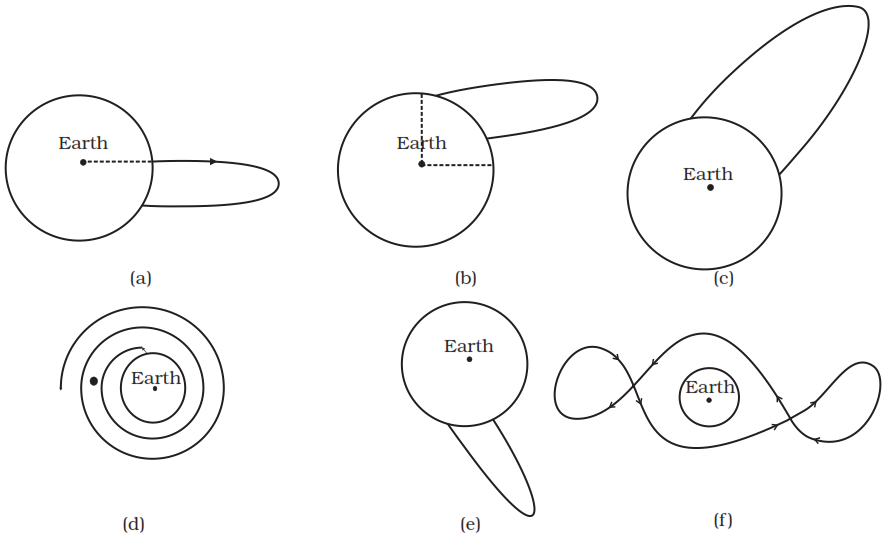

Shown are several curves. Explain with reason, which ones amongst them can be possible trajectories traced by a projectile (neglect air friction).

Estimate the speed of vertically falling raindrops from the following data. Radius of the drops $=0.02 \mathrm{~cm}$, viscosity of air $=1.8 \times 10^{-4}$ poise, $g=9.9 \mathrm{~m} / \mathrm{s}^2$ and density of water $=1000 \mathrm{~kg} / \mathrm{m}^3$.

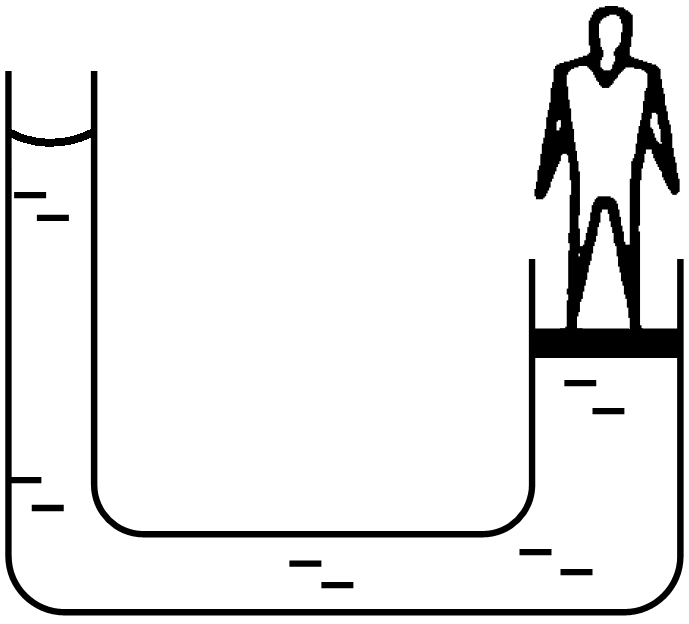

The area of cross-section of the wider tube shown in is $900cm^2$. If the boy standing on the. Piston weighs $45kg$, find the difference in the levels of water in the two tubes.
