Geometrical Optics — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsGeometrical Optics1 Mark
Question
Total internal reflection can take place only if:
  1. Light goes from optically rarer medium (smaller refractive index) to optically denser medium.
  2. Light goes from optically denser medium to rarer medium.
  3. The refractive indices of the two media are close to each other.
  4. The refractive indices of the two media are widely different.
✓

Answer

  1. Light goes from optically denser medium to rarer medium.

Explanation:

T.I.R. (Total Internal reflection)

i < C (condition for T.I.R.)

By Snell's Law

$\text{n}_1\sin\text{i}=\text{n}_2\sin90^{\circ}$

$\sin\text{i}=\frac{\text{n}_2}{\text{n}_1}=\sin\text{C}$

$\text{þ} \ \text{C}=\sin^{-1}$

$\because \ -1\leq\sin\text{i}\leq1$

n1 > n2 (so we can conclude that light goes from optically denser medium to rarer medium & incident angle is greater than the critical angle.)

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from Geometrical Optics→Geometrical Optics — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

In Young’s double slit experiment, distance between two sources is 0.1 mm. The distance of screen from the sources is 20 cm. Wavelength of light used is 5460 Å. Then angular position of the first dark fringe is

(a) 0.08°

(b) 0.16°

(c) 0.20°

(d) 0.313°
→
Nature of electron beam travelling in same direction with same velocity is:
→

Resistors of 1, 2, 3 ohm are connected in the form of a triangle. If a 1.5 volt cell of negligible internal resistance is connected across 3 ohm resistor, the current flowing through this resistance will be

(a) 0.25 amp

(b) 0.5 amp

(c) 1.0 amp

(d) 1.5 amp
→
Which of the following statements is incorrect?
→

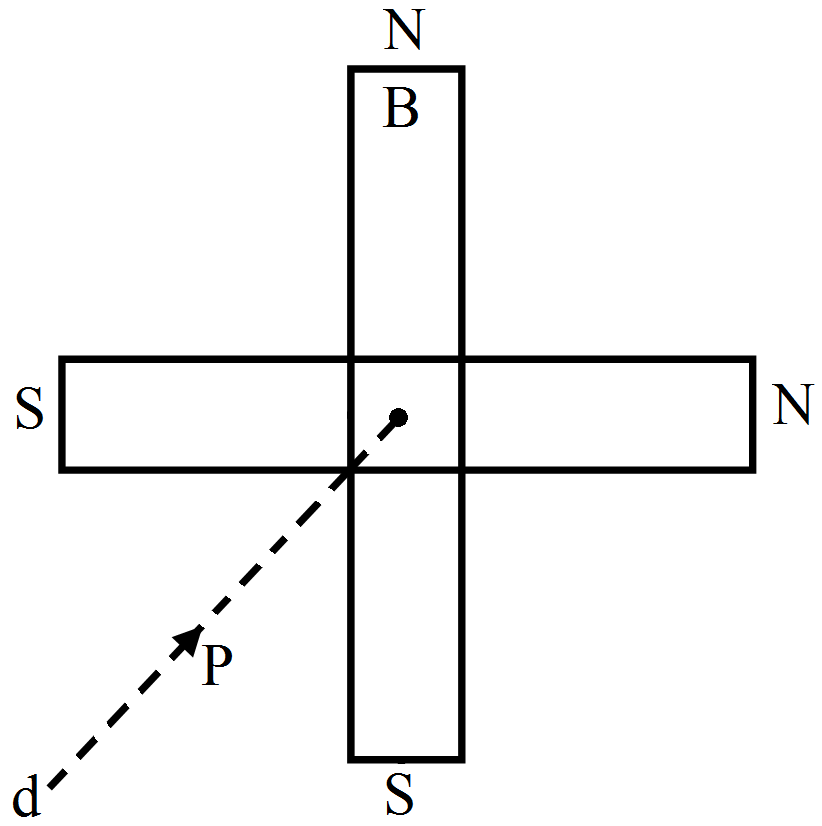

Two short magnets of equal dipole moments M are fastened perpendicularly at their centre (figure). The magnitude of the magnetic field at a distance d from the centre on the bisector of the right angle is:

→
Let E1​ and E2​ be the binding energies of two nuclei A and B. It is observed that two nuclei of A combine together to form a B nucleus. This observation is correct only if:
→

Assertion  :   The surface charge densities of two spherical conductors of different radii are equal. Then the electric field intensities near their surface are also equal.

Reason    : Surface charge density is equal to charge per unit area.

(a) If both assertion and reason are true and the reason is the correct explanation of the assertion.

(b) If both assertion and reason are true but reason is not the correct explanation of the assertion.

(c) If assertion is true but reason is false.

(d) If the assertion and reason both are false.
→
The distinction between conductors, insulators and semiconductors is largely concerned with:
→
When a distant object is viewed through an astronomical telescope, its image will be :
→

An X-ray machine has an accelerating potential difference of 25,000 volts. By calculation the shortest wavelength will be obtained as  (h = 6.63 ; e =  coulomb)

(a) 0.25 Å

(b) 0.50 Å

(c) 1.00 Å

(d) 2.50 Å
→
