Two identical thin rings, each of radius $R $ meter are coaxially placed at distance $R$ meter apart. If $Q_1$ and $Q_2$ coulomb are respectively the charges uniformly spread on the two rings, the work done in moving a charge $q$ from the centre of one ring to that of the other is
Diffcult
Download our app for free and get started
work done $W=q\left(V_{1}-V_{2}\right)$

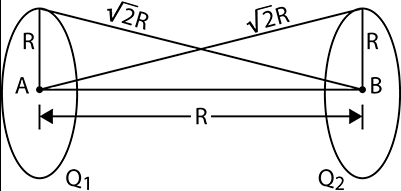

potential at $A$ is
$V_{1}=\frac{1}{4 \pi \varepsilon_{0}}\left(\frac{Q_{1}}{R}+\frac{Q_{2}}{\sqrt{2} R}\right)$
potential at $\mathrm{B}$ is
$V_{2}=\frac{1}{4 \pi \varepsilon_{0}}\left(\frac{Q_{2}}{R}+\frac{Q_{1}}{\sqrt{2} R}\right)$
$W=q\left(V_{1}-V_{2}\right)$
$W=\frac{q}{4 \pi \varepsilon_{0}}\left[\left(\frac{Q_{1}}{R}+\frac{Q_{2}}{\sqrt{2} R}\right)-\left(\frac{Q_{2}}{R}+\frac{Q_{1}}{\sqrt{2} R}\right)\right]$
$W=\frac{q\left(Q_{1}-Q_{2}\right)(\sqrt{2}-1)}{4 \pi \varepsilon_{0} \sqrt{2} R}$
