Two identical uniform rectangular blocks (with longest side $L$ ) and a solid sphere of radius $R$ are to be balanced at the edge of a heavy table such that the centre of the sphere remains at the maximum possible horizontal distance from the vertical edge of the table without toppling as indicated in the figure. If the mass of each block is $M$ and of the sphere is $M / 2$, then the maximum distance $x$ that can be achieved is

✓
$8 L / 15$
B
$5 L / 6$
C
$(3 L / 4+R)$
D
$(7 L / 15+R)$

✓

Answer

Correct option: A.

$8 L / 15$

a
(a)

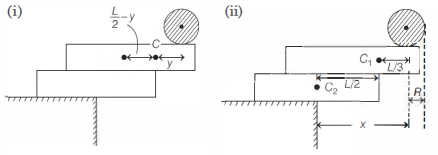

For system to be in equilibrium without toppling, following conditions must be fulfilled.

$(i)$ Centre of mass $C_1$ of sphere and upper block must lie inside the edge of lower block.

Taking origin of axes choosen at $C$, we have

$\frac{M}{2} \times y=M\left(\frac{L}{2}-y\right)$

$\Rightarrow \frac{y}{2}+y=\frac{L}{2} \text { or } y=\frac{L}{3}$

$(ii)$ Centre of mass of both of block and sphere must lie inside the edge of table.

So, again taking centre of mass $C_2$ as origin,

$\frac{3 M}{2}\left(x-\frac{L}{3}\right)+M\left(x-\frac{L}{3}-\frac{L}{2}\right)=0$

$\Rightarrow \frac{3 x}{2}-\frac{L}{2}+x-\frac{L}{3}-\frac{L}{2}=0$

$\Rightarrow \frac{5 x}{2}=\frac{4 L}{3}$

$\Rightarrow x =\frac{8 L}{15}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

NEET STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

An asteroid is moving directly towards the centre of the earth. When at a distance of $10 \mathrm{R}$ ($R$ is the radius of the earth) from the earths centre, it has a speed of $12 \;\mathrm{km} / \mathrm{s}$. Neglecting the effect of earths atmosphere, what will be the speed of the asteroid when it hits the surface of the earth (escape velocity from the earth is $11.2 \;\mathrm{km} / \mathrm{s}$ ) $?$

Give your answer to the nearest integer in $km/s$

A black body radiates $ 20\,W$ at temperature ${227^o}C$. If temperature of the black body is changed to ${727^o}C$ then its radiating power will be ..... $W$

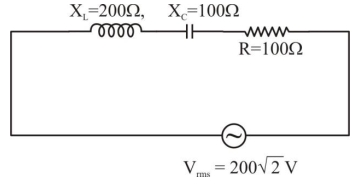

In the given circuit, rms value of current $\left( I _{ rms }\right)$ through the resistor $R$ is :$..........\,A$
