Two infinite length wires carries currents 8A and 6A respectively and placed along X and Y-axis. Magnetic field at a point P,(0,,0,,d),m will be

Q: Two infinite length wires carries currents $8A$ and $6A$ respectively and placed along $X$ and $Y$-axis. Magnetic field at a point $P\,(0,\,0,\,d)\,m$ will be

d (d) Magnetic field at $P$ due to wire $1$, ${B_1} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{2\,(8)}}{d}$ and due to wire $2$, ${B_2} = \frac{{{\mu _0}}}{{4\pi }}.\frac{{2\,(6)}}{d}$ $==>$ ${B_{net}} = \sqrt {B_1^2 + B_2^2} = \sqrt {{{\left( {\frac{{{\mu _0}}}{{4\pi }}.\frac{{16}}{d}} \right)}^2} + {{\left( {\frac{{{\mu _0}}}{{4\pi }}.\frac{{12}}{d}} \right)}^2}} $ $ = \frac{{{\mu _0}}}{{4\pi }} \times \frac{2}{d} \times 10 = \frac{{5{\mu _0}}}{{\pi d}}$

SECTION - A [PHYSICS - MCQ]

GSEB - English Medium

Two infinite length wires carries currents $8A$ and $6A$ respectively and placed along $X$ and $Y$-axis. Magnetic field at a point $P\,(0,\,0,\,d)\,m$ will be

A$\frac{{7{\mu _0}}}{{\pi d}}$
B$\frac{{10{\mu _0}}}{{\pi d}}$
C$\frac{{14{\mu _0}}}{{\pi d}}$
D$\frac{{5{\mu _0}}}{{\pi d}}$

Diffcult

STD 11 Science
NEET
STD 12 - 4. Moving charges and magnetism
Physics

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Download App

Similar Questions

1
An infinitely long wire carrying current $I$ is along $Y$ axis such that its one end is at point $A(0, b)$ while the wire extends upto $+ \infty .$ The magnitude of magnetic field strength at point $(a, 0)$
View Solution
2
A charged particle moves through a magnetic field perpendicular to its direction. Then
View Solution
3

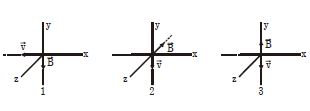

The figure shows three situations when an electron with velocity $\vec v$ travels through a nuniform magnetic field $\vec B$ . In each case, what is the direction of magnetic force on the electron?
