Question

Two statements are given-one labelled Assertion (A) and the other labelled Reason (R). Select the correct answer to these questions from thecodes(a), (b), (c) and (d) as given below.
  1. Both A and R are true and R is the correct explanation of A.
  2. Both A and R are true but R is not the correct explanation of A.
  3. A is true but R is false.
  4. A is false and R is also false.
Assertion: V - I characteristic of p-n diode is same as that of any other conductor.
Reason: p-n diode behave as conductor at room temperature.
✓

Answer

  1. A is false and R is also false.
Explanation:
The V - I characteristic of p-n di ode depends whether the junction is forward biased or reverse biased. This can be showed by graph between voltage and current.

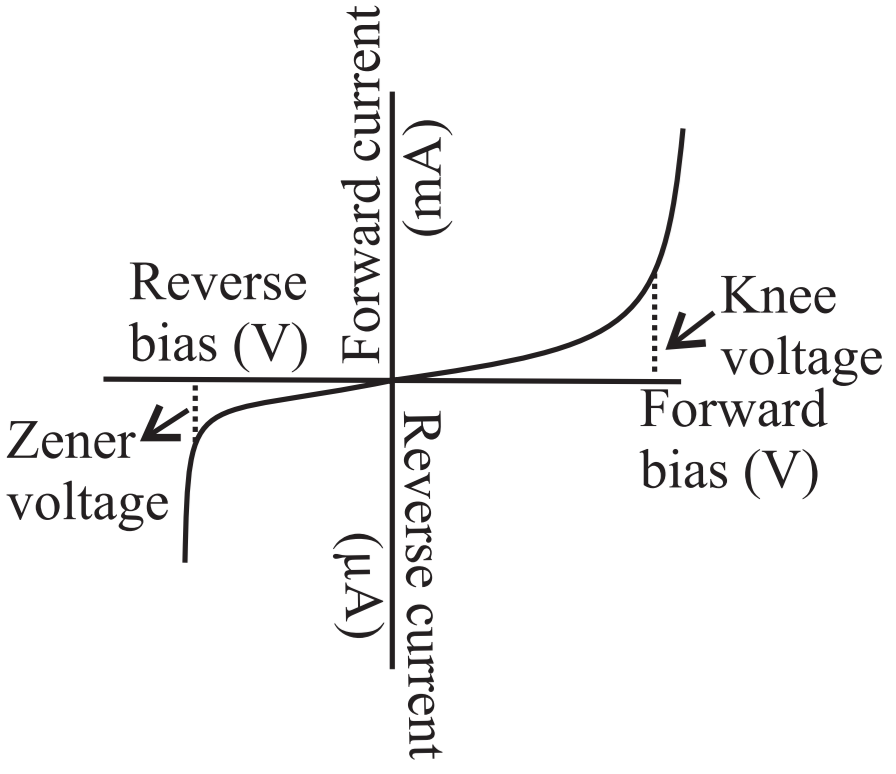

In the given graph knee voltage is a voltage at which forward bias becomes greater than the potential barrier, the forward current increases almost linearly, where as zener voltage is a voltage at which reverse current increases suddenly. From this graph we can verify that p-n diode characteristics are very different from that of conductor which obey's Ohm's law.
