6. system of particles and rotational motion — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics6. system of particles and rotational motion1 Mark
MCQ
Two uniform rods of equal length but different masses are rigidly joined to form an $L$ -shaped body, which is then pivoted as shown. If in equilibrium the body is in the shown configuration, ratio $M/m$ will be:
  • A
    $2$
  • B
    $3$
  • C
    $\sqrt 2 $
  • ✓
    $\sqrt 3 $
✓

Answer

Correct option: D.
$\sqrt 3 $
d
Taking Moments about point $'O'$

clockwise moments $=$ Anticlockwise moments, $M g \times \frac{l}{2} \sin \left(30^{\circ}\right)=m g \times \frac{l}{2} \sin \left(60^{\circ}\right)$

$\Rightarrow \frac{M}{2}=m \frac{\sqrt{3}}{2}$

$\therefore \frac{M}{m}=\sqrt{3}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 6. system of particles and rotational motion→6. system of particles and rotational motion — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The period of oscillation of a simple pendulum is $T =2 \pi \sqrt{\frac{ L }{ g }} .$ Measured value of $ L $ is $1.0\, m$ from meter scale having a minimum division of $1 \,mm$ and time of one complete oscillation is $1.95\, s$ measured from stopwatch of $0.01 \,s$ resolution. The percentage error in the determination of $g$ will be ..... $\%.$
→
A simple pendulum is oscillating without damping. When the displacement of the bob is less than maximum, its acceleration vector $\vec a$ is correctly shown in
→
A satellite orbits around the earth in a circular orbit with a speed $v$ and orbital radius $r.$ If it losses some energy, then $v$ and $r$ changes as:
→
A tuning fork produces 4 beats $/ sec$. with 50 cm and 40 cm of a stretched wire, of a sonometer. The frequency of fork is:
→
The following three objects $(1)$ a metal tray, $(2)$ a block of wood and $(3)$ a woolen cap are left in a closed room overnight. Next day, the temperature of each is recorded as $T_1, T_2$ and $T_3$, respectively. The likely situation is
→
A soft plastic bottle, filled with water of density $1 gm / cc$, carries an inverted glass test-tube with some air (ideal gas) trapped as shown in the figure. The test-tube has a mass of $5 gm$, and it is made of a thick glass of density $2.5 gm / cc$. Initially the bottle is sealed at atmospheric pressure $p_0=10^5 Pa$ so that the volume of the trapped air is $v_0=3.3 cc$. When the bottle is squeezed from outside at constant temperature, the pressure inside rises and the volume of the trapped air reduces. It is found that the test tube begins to sink at pressure $P_0+\Delta p$ without changing its orientation. At this pressure, the volume of the trapped air is $v_0-\Delta v$.

Let $\Delta v=X$ cc and $\Delta p=Y \times 10^3 Pa$.

($1$) The value of $X$ is

($2$) The value of $Y$ is

Give the answer or quetion ($1$) and ($2$)

→

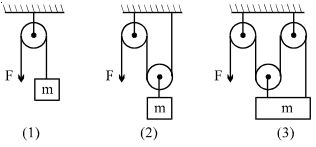

Equal force $F ( > mg)$ is applied to string in all the $3$ cases. Starting from rest, the point of application of force moves a distance of $2 m$ down in all cases. In which case the block has maximum kinetic energy?
→
