Question
Using $\text{B}=\mu_0\text{H},$ find the ratio $\frac{\text{E}_0}{\text{H}_0}$ for a plane electromagnetic wave propagating through vacuum. Show that it has the dimensions of electric resistance. This ratio is a universal constant called the impedance of free space.
✓

Answer

$\text{B}=\mu_0\text{H}$$\text{H}=\frac{\text{B}}{\mu_0}$
$\frac{\text{E}_0}{\text{H}_0}=\frac{\frac{\text{B}_0}{(\mu_0\epsilon_0\text{C})}}{\frac{\text{B}_0}{\mu_0}}=\frac{1}{\epsilon_0\text{C}}$
$=\frac{1}{8.85\times10^{-12}\times3\times10^8}$
$=376.6\Omega=377\Omega$
$\text{Dimension}\frac{1}{\epsilon_0\text{C}}=\frac{1}{\big[\text{LT}^{-1}\big]\big[\text{M}^{-1}\text{L}^{-3}\text{T}^{4}\text{A}^2\big]}$
$=\frac{1}{\text{M}^{-1}\text{L}^{-2}\text{T}^{3}\text{A}^2}=\text{M}^1\text{L}^2\text{T}^{-3}\text{A}^{-2}=[\text{R}]$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Electromagnetic Waves→Electromagnetic Waves — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

obtain the frequency of revolution of the electron in its circular orbit. Does the answer depend on the speed of the electron? Explain.
→

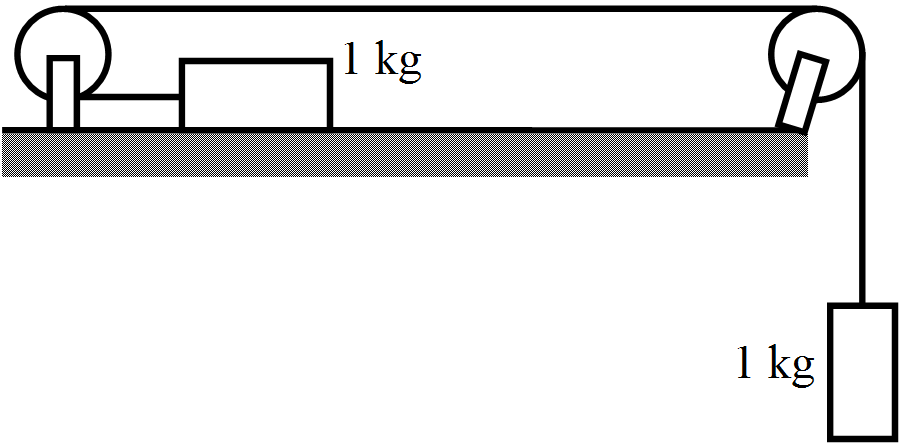

Calculate the tension in the string shown in figure. The pulley and the string are light and all surfaces are frictionless. Take $g = 10m/s^2.$
→
