Question
What are the rules concerning the lines of force?
✓
Answer
i. Magnetic lines of force originate from the north pole and end at the south pole.
ii. The magnetic lines of force of a magnet or a solenoid form closed loops. This is in contrast to the case of an electric dipole, where the electric lines of force originate from the positive charge and end on the negative charge.
iii. The direction of the net magnetic field $\vec{B}$ at a point is given by the tangent to the magnetic line of force at that point.
iv. The number of lines of force crossing per unit area decides the magnitude of magnetic field $\vec{B}$
v. The magnetic lines of force do not intersect. This is because had they intersected, the direction of magnetic field would not be unique at that point.
ii. The magnetic lines of force of a magnet or a solenoid form closed loops. This is in contrast to the case of an electric dipole, where the electric lines of force originate from the positive charge and end on the negative charge.
iii. The direction of the net magnetic field $\vec{B}$ at a point is given by the tangent to the magnetic line of force at that point.
iv. The number of lines of force crossing per unit area decides the magnitude of magnetic field $\vec{B}$
v. The magnetic lines of force do not intersect. This is because had they intersected, the direction of magnetic field would not be unique at that point.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Draw a diagram showing different types of EM waves.
A position dependent force $f = 7 – 2x + 3x^2$ newton acts on a small body of mass $2 \ kg$ and displaces from $x = 0 m$ to $x = 5 m,$ calculate the work done.
→A rubber band originally 30cm long is stretched to a length of 32cm by certain load. What is the strain produced?
As per recent development, what is the nature of light? Wave optics and particle nature of light are used to explain which phenomena of light respectively?
Find the work done when a point charge of $2.0 \ pC$ is moved from a point at a potential of $-10 V$ to a point at which the potential is zero.

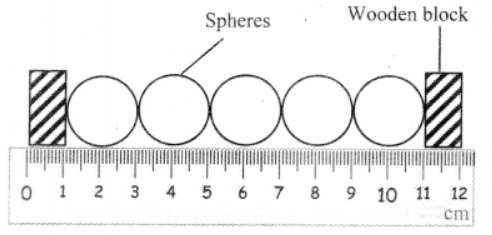

→A factory owner kept five identical spheres between two wooden blocks on a ruler as shown in figure. He called all his workers and told them to take reading, to check their efficiency and knowledge.
