Question
What is natural frequency of a system ? What is resonance? - Explain using a simple example.
###
What is resonance ? Explain using an appropriate example.
###
What is resonance ? Explain using an appropriate example.
✓
Answer
→Natural Frequency : "When a system capable of oscillating is given some initial displacement from its equilibrium position and left free, it begins to oscillate. Thus the oscillations performed by the system in the absence of any type of resistive forces are known as natural (free) oscillations."
→If such a system is driven by an energy source at a frequency that is near the natural frequency, the amplitude of the oscillations is found to be large. This phenomenon is known as resonance.
→Example : A familiar example of this phenomenon is a child on a swing. The swing has a natural frequency for swinging back and forth like a pendulum. If the child pulls on the rope at regular intervals and the frequency of the pulls is almost the same as frequency of swinging, the amplitude of the swinging will be large.
→If such a system is driven by an energy source at a frequency that is near the natural frequency, the amplitude of the oscillations is found to be large. This phenomenon is known as resonance.
→Example : A familiar example of this phenomenon is a child on a swing. The swing has a natural frequency for swinging back and forth like a pendulum. If the child pulls on the rope at regular intervals and the frequency of the pulls is almost the same as frequency of swinging, the amplitude of the swinging will be large.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Find the dimensions of:
→- The specific heat capacity c.
- The coefficient of linear expansion a.
- The gas constant R.
$\text{Q = mc(T}_2-\text{T}_1),\text{l}_{\text{t}}=\text{l}_0[1+\alpha(\text{T}_2-\text{T}_1)]$ and $\text{PV = nRT}.$
A body slipping on a rough horizontal plane moves with a deceleration of 4.0m/s2. What is the coefficient of kinetic friction between the block and the plane?
Using the formula $\overrightarrow{\text{F}}=\text{q}\overrightarrow{\text{v}}\times\overrightarrow{\text{B}}$ and $\text{B}=\frac{\mu_0\text{i}}{2\pi\text{r}},$ show that the SI units of the magnetic field B and the permeability constant $\mu_0$ may be written as N/A-m and NA2 respectively.
→A current I is flowing in an infinitely long conductor bent into the shape shown in Fig. If the radius of the curved part is R, find the magnetic field at the centre O.
Show that the radius of the orbit in hydrogen atom varies as n2, where n is the principal quantum number of the atom.
Derive the equation of P.E. (Potential Energy) of an electric dipole in uniform electric field.
Briefly discuss different theories (or models) about light given by different scientists.
A lamp is connected in series with a capacitor. Predict your observations for dc and ac connections. What happens in each case if the capacitance of the capacitor is reduced?
Can a plane mirror ever form a real image?

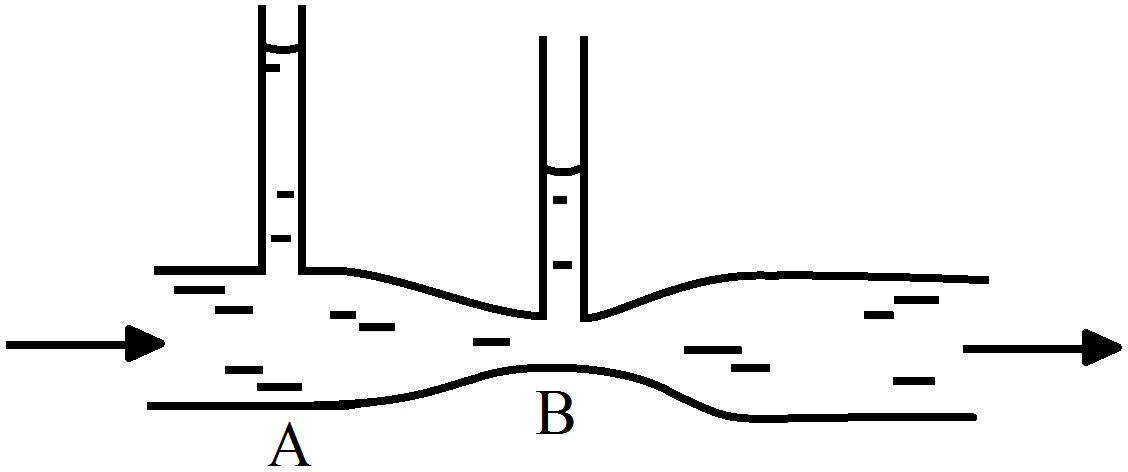

Water flows through a horizontal tube as shown in If the difference of heights of water column in the vertical tubes is 2cm, and the areas of cross-section at A and B are 4cm2 and 2cm2 respectively, find the rate of flow of water across any section.
