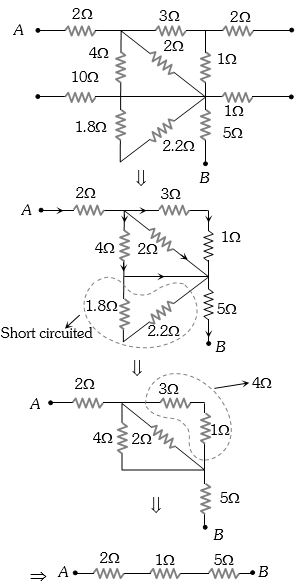

What is the equivalent resistance between the points $A$ and $B$ of the network .................. $\Omega$
