Reflection of Light — Science STD 10 — Question

Maharashtra BoardEnglish MediumSTD 10ScienceReflection of Light3 Marks
Question
When an object is placed 20cm from a concave mirror, a real image magnified three times is formed. Find:
  1. The focal length of the mirror.
  2. Where must the object be placed to give a virtual image three times the height of the object?
✓

Answer

Given:u = -20cm, m = -3cm, for the real image
  1. We know that
$\text{m}=-\frac{\text{m}}{\text{u}}$
$\therefore \text{m}=-3=-\frac{\text{v}}{(-20)}$
$\Rightarrow\text{v}= -60\text{cm}$
We have
$\frac{1}{\text{v}}+\frac{1}{\text{u}}=\frac{1}{\text{f}}$
$\Rightarrow \frac{1}{(-60)}+\frac{1}{(-20)}=\frac{1}{\text{f}}$
$\frac{1}{\text{f}}=-\frac{1}{60}-\frac{1}{20}=\frac{-1-3}{60}=\frac{1}{15}$
$\text{f}=-15\text{cm}$
  1. For virtual image m = 3 , and f = 15cm
$\text{m}=-\frac{\text{v}}{\text{u}}$
$\therefore \text{m}=-3=-\frac{\text{v}}{(-20)}\Rightarrow \text{v}=-3\text{u}$
We have
$\frac{1}{\text{v}}+\frac{1}{\text{u}}=\frac{1}{\text{f}}$
$\Rightarrow \frac{1}{\text{(3u)}}+\frac{1}{\text{u}}=\frac{1}{(-15)}$
$\Rightarrow \frac{-1+3}{\text{3u}}=-\frac{1}{15}$
$\Rightarrow \text{u}=-\frac{2\times15}{3}=-10\text{cm}$
So object should be placed 10cm from the concave mirror.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Answer the following questions: [3 M]" from Reflection of Light→Reflection of Light — all question types→Science STD 10 question papers→Maharashtra Board STD 10 question papers→Maharashtra Board question paper generator→

Similar questions

Observe the figure and name the ray AB , ray CD, ray GH:
→
 Combination reaction
→
What is a spherical mirror? Distinguish between a concave mirror and a convex mirror.
→
Explain the terms total internal reflection and critical angle.
→
Explain how, geothermal energy is used to generate electricity.
→

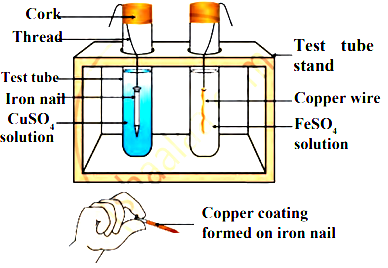

Observe the following diagram and identify the type of reaction and write observation.
→
