When light of wavelength is incident on an equilateral prism kept… - Vidyadip

MCQ

When light of wavelength $\lambda $ is incident on an equilateral prism kept in its minimum deviation position, it is found that the angle of deviation equals the angle of the prism itself. The refractive index of the material of the prism for the wavelength $\lambda $ is, then

✓
$\sqrt 3 $
B
$\frac{{\sqrt 3 }}{2}$
C
$2$
D
$\sqrt 2 $

✓

Answer

Correct option: A.

$\sqrt 3 $

a
( a)$\mu = \frac{{\sin \,\left( {\frac{{A + {\delta _m}}}{2}} \right)}}{{\sin \frac{A}{2}}}$ $ = \frac{{\sin \,\left( {\frac{{60^\circ + 60^\circ }}{2}} \right)}}{{\sin \,\left( {\frac{{60^\circ }}{2}} \right)}} = \sqrt 3 $

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 9. Ray optics abd optical instruments→9. Ray optics abd optical instruments — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

Magnetic field inside a solenoid is:

$A$ light ray is incident on a transparent sphere of index $= \sqrt 2 $ , at an angle of incidence $= 45^o$. What is the deviation of $a$ tiny fraction of the ray, which enters the sphere, undergoes two internal reflections, and then refracts out into air ?......$^o$

An elementary particle of mass $m$ and charge $ + e$ is projected with velocity $v$ at a much more massive particle of charge $Ze,$ where $Z > 0.$What is the closest possible approach of the incident particle

In a step up transformer, $220 \,V$ is converted into $200\,V$. The number of turns in primary coil is $600$. What is the number of turns in the secondary coil

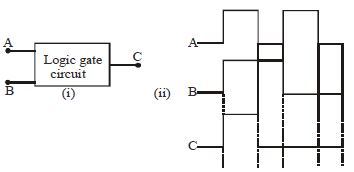

The following figure $(i)$ shows a logic gate circuit with two inputs $A$ and $B$ output $C$. The voltage waveforms of $A,B$ and $C$ are as shown in the figure $(ii)$ given below The logic circuit gate is
