Question
Why do semiconductors obey Ohm's law for only low fields?
✓
Answer
The drift velocity of a charge carrier is proportional to electric field $E.$
$v=\frac{e E}{m} \tau$
i.e., $v \propto E$
But $v$ cannot be increased indefinitely by increasing $E.$
At high speeds, relaxation time $\tau$ begins to decrease due to the increase in collision frequency.
So drift velocity saturates at the thermal velocity $\left( v _{ th }=10^5 ms^{-1}\right)$ and becomes independent of the electric field at higher values of $E.$ At $300 K ,$
$v_{t h}=\left(\frac{3 k_B T}{m}\right)^{1 / 2}$
$=10^5 ms^{-1}$
$\tau=10^{-12} s$
An electric field of $10^6 Vm ^{-1}$ causes saturation of drift velocity.
Hence semiconductors obey Ohm's law for low electric fields $(E <10^6 Vm ^{-1}$ ) and above this field, $I$ become independent of $V.$
$v=\frac{e E}{m} \tau$
i.e., $v \propto E$
But $v$ cannot be increased indefinitely by increasing $E.$
At high speeds, relaxation time $\tau$ begins to decrease due to the increase in collision frequency.
So drift velocity saturates at the thermal velocity $\left( v _{ th }=10^5 ms^{-1}\right)$ and becomes independent of the electric field at higher values of $E.$ At $300 K ,$
$v_{t h}=\left(\frac{3 k_B T}{m}\right)^{1 / 2}$
$=10^5 ms^{-1}$
$\tau=10^{-12} s$
An electric field of $10^6 Vm ^{-1}$ causes saturation of drift velocity.
Hence semiconductors obey Ohm's law for low electric fields $(E <10^6 Vm ^{-1}$ ) and above this field, $I$ become independent of $V.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Find the amount of silver liberated at cathode if 0.500A of current is passed through $AgNO_3$ electrolyte for 1 hour. Atomic weight of silver a 107.9 g/mole.
A beam of electrons enters crossed region of electric field of intensity $E$ and magnetic field of intensity B. For what speed of electrons, the electron beam will remain unaffected?
→At what temperature will the speed of sound be double of its value at $0^\circ C?$
→As the wavelength is increased from violet to red, the luminosity:
- Continuously increases.
- Continuously decreases.
- Increases then decreases.
- Decreases then increases.
Using Rutherford model of the atom, derive the expression for the total energy of the electron in hydrogen atom. What is the significance of total negative energy possessed by the electron?
What is interference ? Write the types of interference.
In which situation is there a displacement current, but no conduction current?

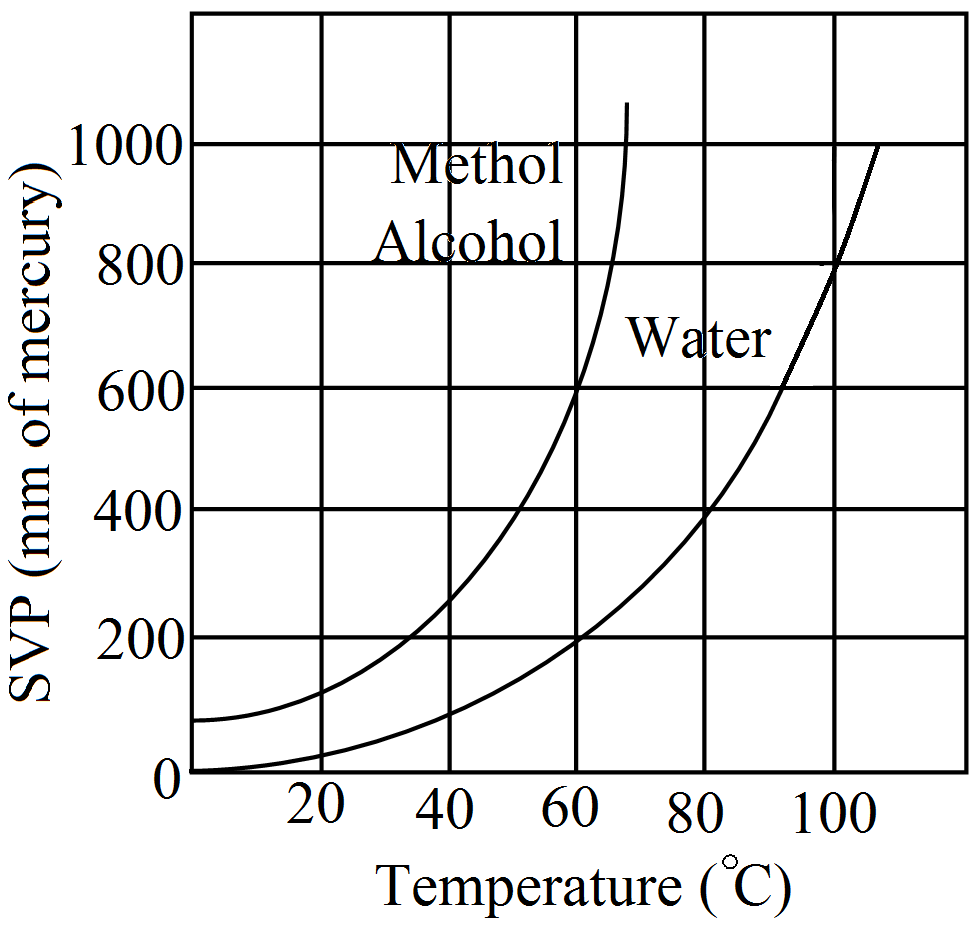

Using figure. of the text, find the boiling point of methyl alcohol at 1atm (760mm of mercury) and at 0.5atm.
