Question
Write relation between conductivity and mobility of metal.
✓
Answer
Ratio of drift velocity and electric field inside the conductor is constant at a given temperature. This constant quantity is known as mobility ( $\mu$ ) of charge carrier (electron)
Mobility $(\mu)=\frac{\text { Drift velocity }}{\text { Electric field }}$
$=\frac{v_d}{ E }=\frac{\left(\frac{e E }{m}\right) \tau}{ E }=\frac{e \tau}{m}$
$\mu=\frac{e \tau}{m}$
Conductivity of the substance
$\sigma=\frac{n e^2 \tau}{m}$
$\sigma=n e\left[\frac{e \tau}{m}\right]$
On putting the value from equation (1) in (2)
$\sigma=n e(\mu)$
Hence, conductivity of metal $\sigma=n e \mu $
Mobility $(\mu)=\frac{\text { Drift velocity }}{\text { Electric field }}$
$=\frac{v_d}{ E }=\frac{\left(\frac{e E }{m}\right) \tau}{ E }=\frac{e \tau}{m}$
$\mu=\frac{e \tau}{m}$
Conductivity of the substance
$\sigma=\frac{n e^2 \tau}{m}$
$\sigma=n e\left[\frac{e \tau}{m}\right]$
On putting the value from equation (1) in (2)
$\sigma=n e(\mu)$
Hence, conductivity of metal $\sigma=n e \mu $
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
An electric current of 2.0A passes through a wire of resistance $25\Omega$. How much heat will be developed in 1minute?
→Define the phenomenon of total internal reflection.
Define the ionisation energy. What is the value of it for hydrogen atom?
The electric foree between two electric charges in a medium is F . The distance between them is $d$. At what distance were they placed from each other
so that the electric foree becomes (i) 3 F (ii) $\frac{ F }{4}$ ?
→so that the electric foree becomes (i) 3 F (ii) $\frac{ F }{4}$ ?
In a Michelson experiment for measuring speed of light, the distance travelled by light between two reflections from the rotating mirror is 4.8km. The rotating mirror has a shape of a regular octagon. At what minimum angular speed of the mirror (other than zero) the image is formed at the position where a non-rotating mirror forms it?
Using lens maker’s formula, derive the thin lens formula $\frac{1}{\text{f}}=\frac{1}{\text{v}}-\frac{1}{\text{u}}$ for a biconvex lens.
→In a potentiometer arrangement, a cell of emf 1.25 V gives a balance point at 35.0 cm length of the wire. If the cell is replaced by another cell and the balance point shifts to 63.0 cm, what is the emf of the second cell?

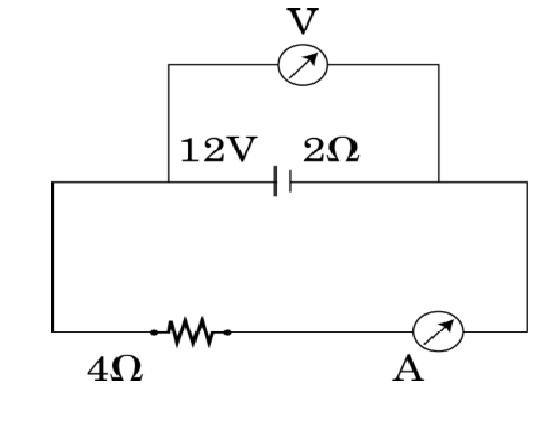

A battery of emf 12V and internal resistance 2 $\Omega$ is connected to a 4 $\Omega$ resistor as shown in the figure.
