Question
Write the expression for the force on a charge moving in a magnetic field.
Use this expression to define the SI unit of magnetic field.
✓
Answer

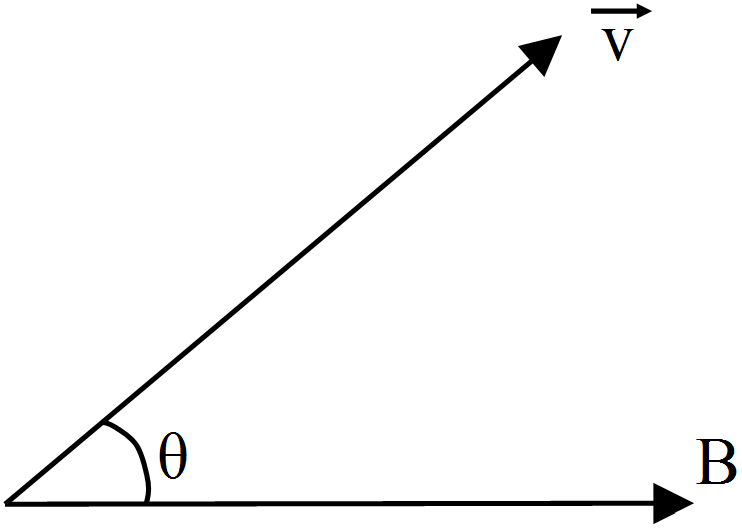

Force on a charge (q) moving in a magnetic field B with velocity $\vec{\text{v}}$ making an angle $\theta$ (with the direction of magnetic field $(\vec{\text{B}})$ is given by,
$\text{F}_\text{m}=\text{qvB}\sin\theta$
when $\theta=90^\circ\Rightarrow\sin\theta=1,$so
$\text{F}_\text{m}=\text{qvB}$
$\text{or}\ \text{B}=\frac{\text{F}_\text{m}}{\text{q}^\text {v}}$
$\text{If}\ \text{v}=1\ \text{m/s},\text{B}=\frac{\text{F}_\text{m}}{\text{q}}\ \text{newton/ coulomb}$
SI unit of magnetic field is telsa.
Thus, 1 tesla is the magnetic field in which a charged particle moving with velocity 1m/ s perpendicular to velocity experiences a force of 1 newton/ coulomb.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A metallic rod of length l is rotated at a constant angular speed $\omega , $ normal to a uniform magnetic field B. Derive an expression for the current induced in the rod, if the resistance of the rod is R.
→- Write the principle of working of a metre bridge.
- In a metre bridge, the balance point is found at a distance $l_1$ with resistances R and S as shown in the figure.
An unknown resistance X is now connected in parallel to the resistance S and the balance point is found at a distance $l_2$. Obtain a formula for X in terms of $l_1$, $l_2$ and S.
Show that $\text{AB} + \overline{\text{AB}}$ is always 1.
→What is the area of the plates of a 2F parallel plate capacitor, given that the separation between the plates is 0.5 cm? [You will realise from your answer why ordinary capacitors are in the range of μF or less. However, electrolytic capacitors do have a much larger capacitance (0.1F) because of very minute separation between the conductors.]
Three charges are arranged on the vertices of an equilateral triangle as shown in figure. Find the dipole moment of the combination.
Get the electric field due to on infinitely long straight uniformly changed wire.

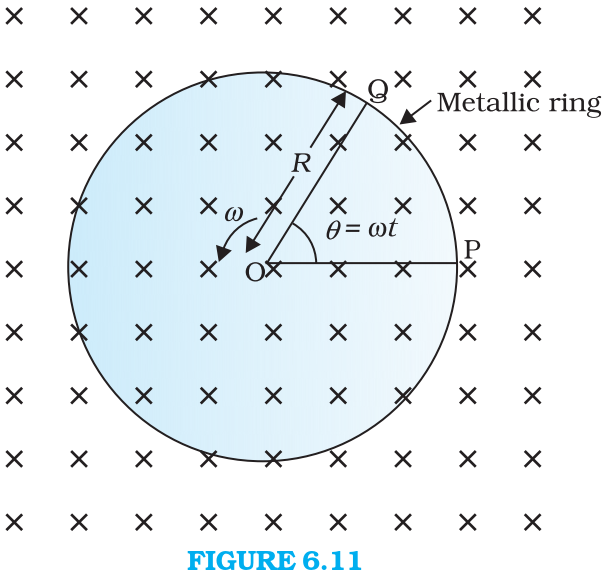

A metallic rod of $1 m$ length is rotated with a frequency of $50 rev / s$, with one end hinged at the centre and the other end at the circumference of a circular metallic ring of radius $1 m$, about an axis passing through the centre and perpendicular to the plane of the ring (Fig. 6.11). A constant and uniform magnetic field of $1 T$ parallel to the axis is present everywhere. What is the emf between the centre and the metallic ring?
→A 600 pF capacitor is charged by a 200 V supply. It is then disconnected from the supply and is connected to another uncharged 300 pF capacitor. Calculate how much electrostatic energy is lost in the process. What is the source of energy loss?

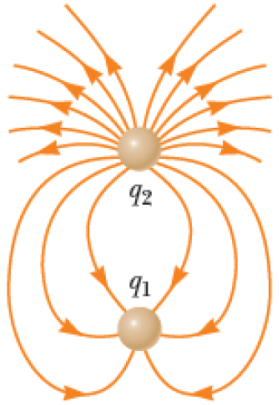

Consider the situation shown in figure. What are the signs of q1 and q2? If the lines are drawn in proportion to the charge, what is the ratio $\frac{\text{q}_1}{\text{q}_2}?$
→
