Question
Write the expression for the magnetic force acting on a charged particle moving with velocity n in the presence of magnetic field B.

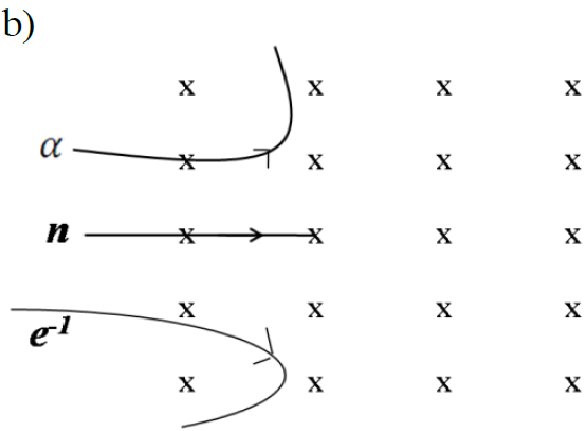

A neutron, an electron and an alpha particle moving with equal velocities, enter a uniform magnetic field going into the plane of the paper as shown. Trace their paths in the field and justify your answer.

✓

Answer

$\overrightarrow{\text{F}} = \text{q}(\overrightarrow{\text{v}}\times\overrightarrow{\text{B}})$
$\text{F}= \text{qvB}\sin\theta$ and Force (F) acts perpendicular to the plane containing $\overrightarrow{\text{v}} \text{and} \overrightarrow{\text{B}}$

Justification: Direction of force experienced by the particle will be according to the Fleming’s Left-hand rule.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Moving Charges and Magnetism→Moving Charges and Magnetism — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

An inductor 200 mH, capacitor 500 µF, resistor 10Ω are connected in series with a100 V, variable frequency a.c. source. Calculate the
  1. Frequency at which the power factor of the circuit is unity.
  2. Current amplitude at this frequency.
  3. Q-factor.
→
Write the expression for the magnetic moment ($\overrightarrow{\text{m}}$) due to a planar square loop of side ‘l’ carrying a steady current I in a vector form.

 In the given figure this loop is placed in a horizontal plane near a long straight conductor carrying a steady current I1 at a distance l as shown. Give reasons to explain that the loop will experience a net force but no torque. Write the expression for this force acting on the loop.

→
A p-n photodiode is fabricated from a semiconductor with band gap of 2.8 eV. Can it detect a wavelength of 6000 nm?
→
A circular coil of radius 8 cm and 20 turns is rotated about its vertical diameter with an angular speed of $50 rad s ^{-1}$ in a uniform horizontal magnetic field of magnitude $3 \times 10^{-2} T$. Obtain the maximum and average emf induced in the coil. If the coil forms a closed loop of resistance $10 \Omega$, calculate the maximum value of current in the coil.
→
An electric bulb of volume 250cc was sealed during manufacturing at a pressure of 10-3mm of mercury at 27°C. Compute the number of air molecules contained in the bulb. Avogadro constant = 6 × 1023mol-1, density of mercury = 13600kg/ m-3 and g = 10ms-2.
→
Explain the construction of refracting telescope by figure and obtain the equation of magnification.
→

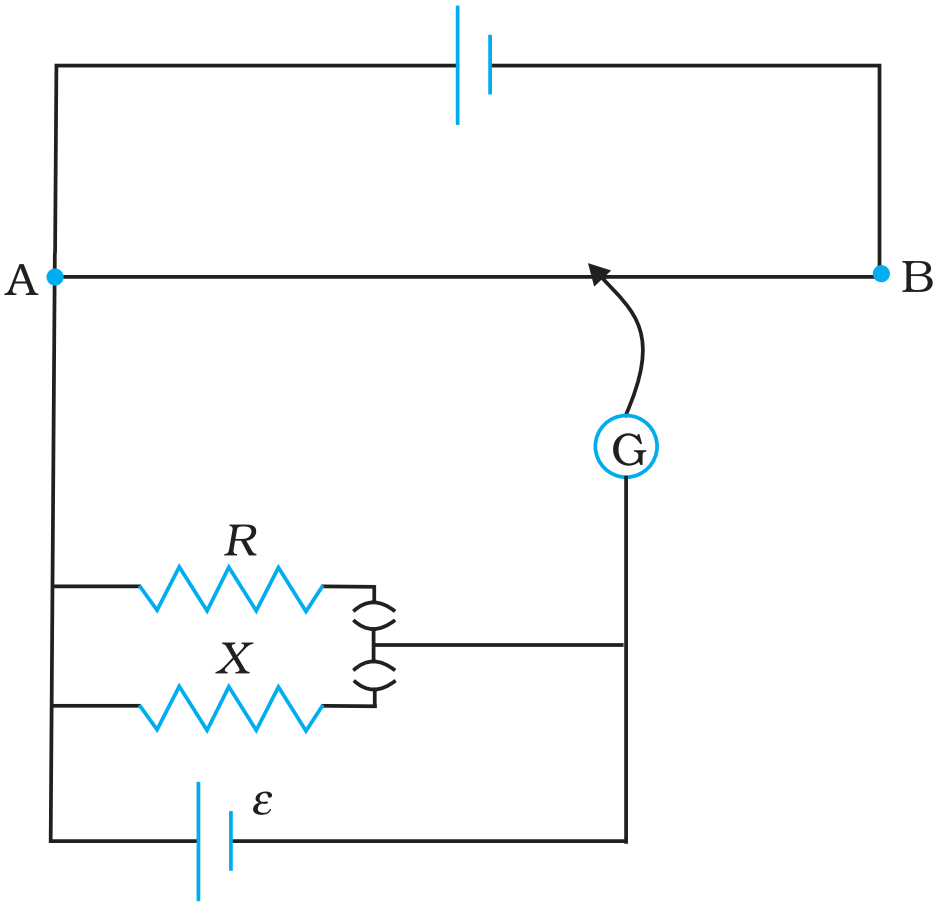

Figure shows a potentiometer circuit for comparison of two resistances. The balance point with a standard resistor $\text{R}=10.0\ \Omega$ is found to be 58.3 cm, while that with the unknown resistance X is 68.5 cm. Determine the value of X. What might you do if you failed to find a balance point with the given cell of emf $\varepsilon?$

→
