Question

Write the expression for the magnetic force acting on a charged particle moving with velocity n in the presence of magnetic field B.

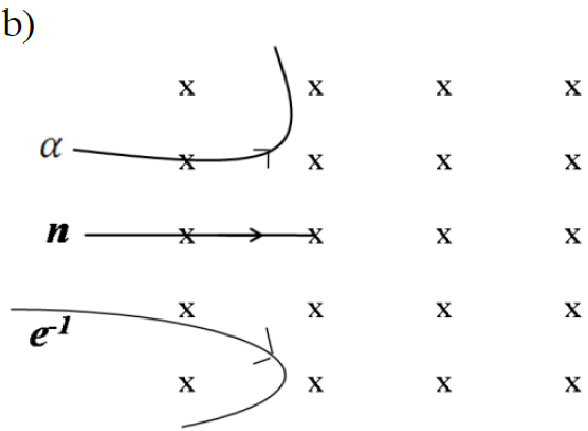

A neutron, an electron and an alpha particle moving with equal velocities, enter a uniform magnetic field going into the plane of the paper as shown. Trace their paths in the field and justify your answer.

✓

Answer

$\overrightarrow{\text{F}} = \text{q}(\overrightarrow{\text{v}}\times\overrightarrow{\text{B}})$
$\text{F}= \text{qvB}\sin\theta$ and Force (F) acts perpendicular to the plane containing $\overrightarrow{\text{v}} \text{and} \overrightarrow{\text{B}}$

Justification: Direction of force experienced by the particle will be according to the Fleming’s Left-hand rule.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Moving Charges and Magnetism→Moving Charges and Magnetism — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

A resistance R and a capacitor C are connected in series to a source $\text{V}=\text{V}_0\sin\omega\text{t}.$
Find:

The peak value of the voltage across the (i) resistance and (ii) capacitor.
The phase difference between the applied voltage and current. Which of them is ahead?

A coil of cross-sectional area A lies in a uniform magnetic field B with its plane perpendicular to the field. In this position the normal to the coil makes an angle of 0° with the field. The coil rotates at a uniform rate to complete one rotation in time T. Find the average induced emf in the coil during the interval when the coil rotates:
i. from $0^{\circ}$ to $90^{\circ}$ position
ii. from $90^{\circ}$ to $180^{\circ}$ position
iii. from $180^{\circ}$ to $270^{\circ}$ and
iv. from $270^{\circ}$ to $360^{\circ}$

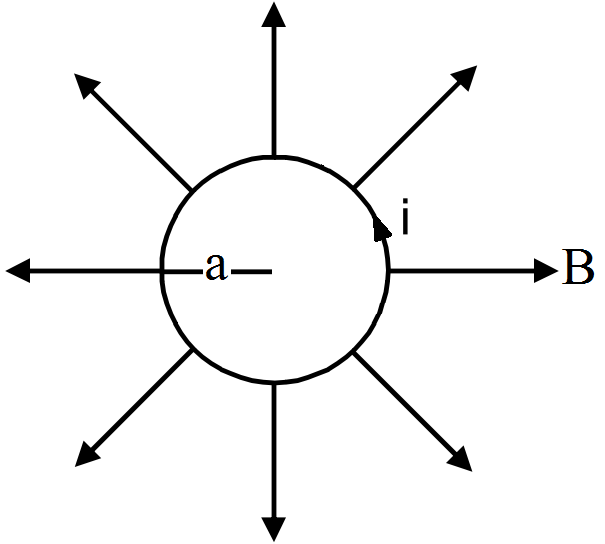

A circular loop of radius a, carrying a current i, is placed in a two-dimensional magnetic field. The centre of the loop coincides with the centre of the field The strength of the magnetic field at the periphery of the loop is B. Find the magnetic force on the wire.
