Question

You are riding in an automatic vehicle of mass 3000 kg . Assume that you are testing the oscillatory characteristics of the suspension system of this vechicle when the entire vehicle is placed on it, the suspended is inclined by 15 cm . Also, the amplitude of oscillation decreases by $50 \%$ in the period of one complete oscillation. Estimate the value of the following
(a) spring constant, and
(b) for the shock absorber system of a spring and $a$ wheel damping constant $b$.
Assume that each wheel carries a mass of 750 kg is.

✓

Answer

Given :
(a) Mass of the vehicle
$\begin{aligned}M & =3000 kg \\m & =\text { Mass carried by each wheel } \\m & =750 kg \\y & =15 cm=15 \times 10^{-2} m=0.15 m \\a & =\text { Acceleration }=g \\k & =\text { Spring constant }=? \\\frac{m}{k} & =\frac{y}{a}=\frac{y}{g} \\m g & =k y \\k & =\frac{m g}{y} \\\text {Putting value}\quad k & =\frac{750 \times 9.8}{0.15} \\& =4.9 \times 10^4 N / m \\& \simeq 5 \times 10^4 N / m\end{aligned}$
(b) Recession constant

Time period $T =2 \pi \sqrt{\frac{m}{k}}$
$ \begin{aligned} & =2 \times 3.14 \times \sqrt{\frac{750}{4.9 \times 10^4}} \\ & =\frac{2 \times 3.14 \times 86.60}{700} \\ T & =0.776 \text { second } \end{aligned} $
Amplitude is halved in one cycle
$ A=A_0 e^{\frac{-b t}{2 m}} $
$\begin{aligned} t= T \text { in } A & =\frac{ A _0}{2} \text { putting value } \\ \frac{ A _0}{2} & = A _0 e ^{\frac{-b T}{2 m}} \\ 2 & = e ^{\frac{b T}{2 m}} \\ \frac{b T}{2 m} & =\log _{ e } 2=0.693\end{aligned}$
Damping constant $b=\frac{2 m \times 0.693}{T}$
$\begin{aligned} & =\frac{2 \times 750 \times 0.693}{0.77} \\ & =1350 kg / sec . \\ b & =1350 kg / s \end{aligned}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from PART - 2 CH - 13 Oscillations→PART - 2 CH - 13 Oscillations — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The heavier block in an Atwood machine has a mass twice that of the lighter one. The tension in the string is 16.0N when the system is set into motion. Find the decrease in the gravitational potential energy during the first second after the system is released from rest.

A sitar wire is replaced by another wire of same length and material but of three times the earlier radius. If the tension in the wire remains the same, by what factor will the frequency change?

Establish the relationship between angular velocity and linear velocity. Also write its vector relation.

The free surface of oil in a tanker, at rest, is horizontal. If the tanker starts accelerating the free surface will be titled by an angle $\theta.$ If the acceleration is a m $s^{-2}$, what will be the slope of the free surface?

What amount of heat must be supplied to $2.0 \times 10^{-2} \mathrm{~kg}$ of nitrogen (at room temperature) to raise its temperature by $45^{\circ} \mathrm{C}$ at constant pressure? (Molecular mass of $\mathrm{N}_2=28 ; \mathrm{R}=8.3 \mathrm{~J} \mathrm{~mol}^{-1} \mathrm{~K}^{-1}$.)

A geyser heats water flowing at the rate of $3.0$ litres per minute from $27°C$ to $77°C$. If the geyser operates on a gas burner, what is the rate of consumption of the fuel if its heat of combustion is $4.0 × 104J/g$?

A body of mass m makes an elastic collision with another identical body at rest. Show that if the collision is not head-on, the bodies go at right angle to each other after the collision.

What are the three forms of energy possessed by a flowing fluid? Find their expressions.

When a proton is released from rest in a room, it starts with an initial acceleration $a_0$ towards west. When it is projected towards north with a speed $v_0$, it moves with an initial acceleration $3a_0$ towards west. Find the electric field and the maximum possible magnetic field in the room.

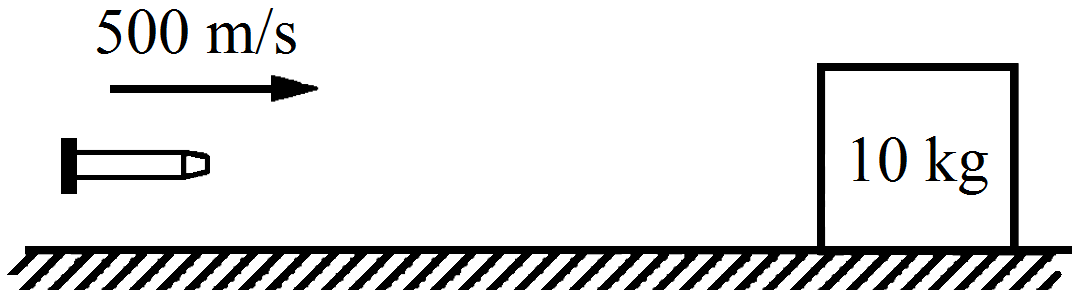

A bullet of mass $20g$ travelling horizontally with a speed of 500m/s passes through a wooden block of mass $10.0kg$ initially at rest on a level surface. The bullet emerges with a speed of $100m/s$ and the block slides $20cm$ on the surface before coming to rest. Find the friction coefficient between the block and the surface.
