Questions · Page 2 of 2

1 Marks Question

Question 511 Mark
State the condition under which the terminal pd across a battery and its emf are equal.
Answer
The terminal pd across a battery is equal to its emf when battery is in open circuit, i.e., when no current is being drawn from the cell.
View full question & answer
Question 521 Mark
Would you prefer a voltmeter or a potentiometer to measure the emf of a battery?
Answer
Because potentiometer doesn't draw any current for itself from the primary circuit and hence gives more accurate measurement thereby acting as an ideal voltmeter. It uses null method to measure.
View full question & answer
Question 531 Mark
We often say, "A current is going through the wire." What goes through the wire, the charge or the current?
Answer
Only charge goes from the wire, rate of flow of charge is known as current.
View full question & answer
Question 541 Mark
A steady current is flowing in a cylindrical conductor. Does electric field exist within the conductor?
Answer
Yes, electric field exists within the conductor because it is the electric field which imparts acceleration to electrons for the flow of current.
View full question & answer
Question 551 Mark
Though we specify the direction of direct current by putting an arrow, why is it not considered a vector quantity?
Answer
Current is a scalar quantity because it does not obey the laws of vector addition.
View full question & answer
Question 561 Mark
When a straight wire of resistance R is bent into U-shape, does its resistance change?
Answer
No, the resistance remains same, because length and cross-sectional area of the wire remain unchanged.
View full question & answer
Question 571 Mark
The drift speed is defined as $\text{v}_\text{d}=\frac{\Delta\text{l}}{\Delta\text{t}}$ where $\Delta\text{l}$ is the distance drifted in a long time $\Delta\text{t}.$ Why don't we define the drift speed as the limit of $\frac{\Delta\text{l}}{\Delta\text{t}}\ \text{as}\ \Delta\text{t}\rightarrow0?$
Answer
As electron doesn't travel linearly so we need to calculate average time thus we need to consider drift distance for long time. That can not be calculated in case of t → 0.
View full question & answer
Question 581 Mark
Do the electrodes in an electrolytic cell have fixed polarity like a battery?
Answer
Yes, polarity of electrolytic cell is fixed.
View full question & answer
Question 591 Mark

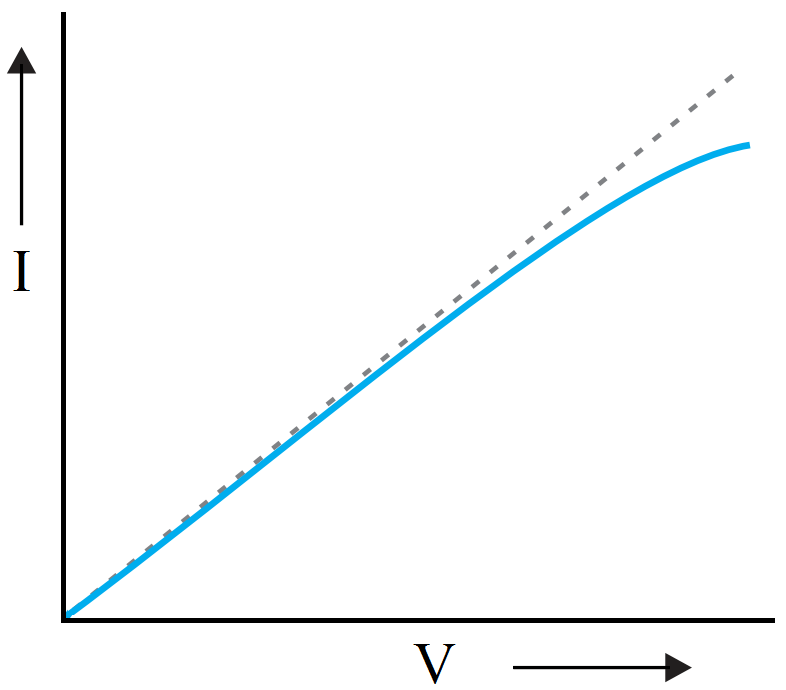

The I-V characteristics of a resistor are observed to deviate from a straight line for higher values of current as shown in the adjoining figure why?

Answer
At higher value of current, sufficient heat is produced which raises the temperature of resistor and so causes increase in resistance.
View full question & answer
