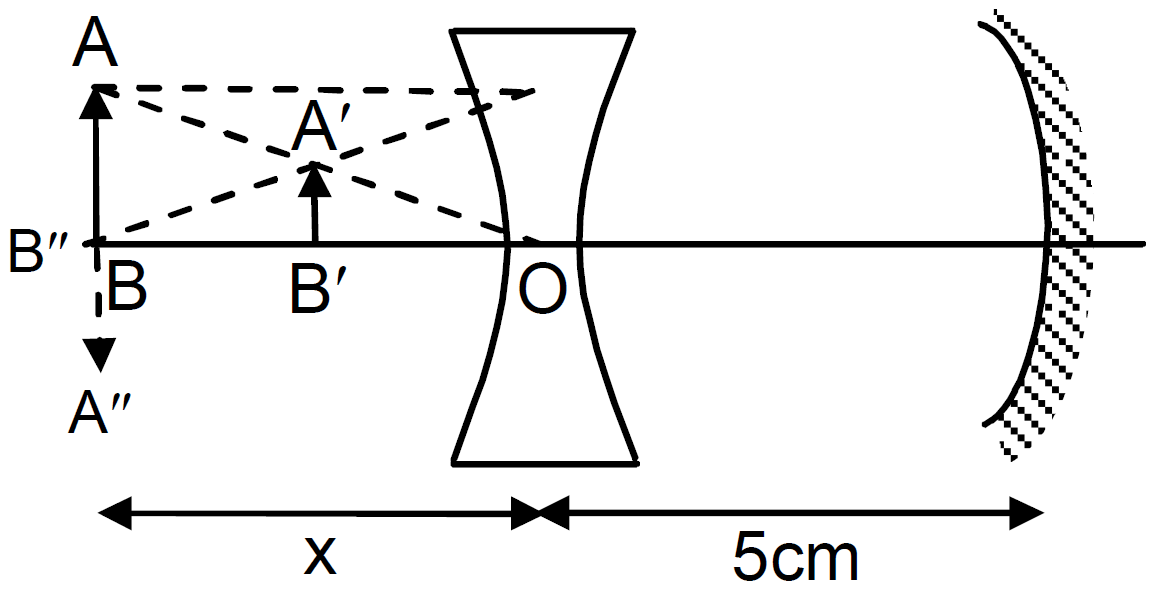

Let the object to placed at a distance x from the lens further away from the mirror.

For the concave lens (1^st refraction)

u = -x, f = -20cm

From lens formula,

$\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}\Rightarrow\frac{1}{\text{v}}=\frac{1}{-20}+\frac{1}{-\text{x}}$

$\Rightarrow\text{v}=-\Big(\frac{20\text{x}}{\text{x}+20}\Big)$

So, the virtual image due to fist refraction lies on the same side as that of object. (A'B')

This image becomes the object for the concave mirror.

For the mirror,

$\Rightarrow\text{u}=-\Big(5+\frac{20\text{x}}{\text{x}+20}\Big)=-\Big(\frac{25\text{x}+100}{\text{x}+20}\Big)$

$\text{f}=-10\text{cm}$

From mirror equation,

$\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}\Rightarrow\frac{1}{\text{v}}=\frac{1}{-10}+\frac{\text{x}+20}{25\text{x}+100}$

$\Rightarrow\text{v}=\frac{50(\text{x}+4)}{3\text{x}-20}$

So, this image is formed towards left of the mirror.

Again for second refraction in concave lens,

$\text{u}=-\Big[5-\frac{50(\text{x}+4)}{3\text{x}-20}\Big]$ (assuming that image of mirror is formed between the lens and mirro 3x -20)

$\text{v}=+\text{x}$ (Since, the final image is produced on the object A"B")

Using lens formula,

$\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}$

$\Rightarrow\frac{1}{\text{x}}+\frac{1}{\frac{5-50(\text{x}+4)}{3\text{x}-20}}=\frac{1}{-20}$

$\Rightarrow 25\text{x}^2-1400\text{x}-6000=0$

$\Rightarrow\text{x}^2-56\text{x} -240=0$

$\Rightarrow (\text{x}-60)(\text{x}+4)=0$

So, $\Rightarrow\text{x}=60\text{cm}$

The object should be placed at a distance 60cm from the lens further away from the mirror. So that the final image is formed on itself.
