4 Marks Questions

🎯

Test yourself on this topic

47 questions · timed · auto-graded

Question 14 Marks

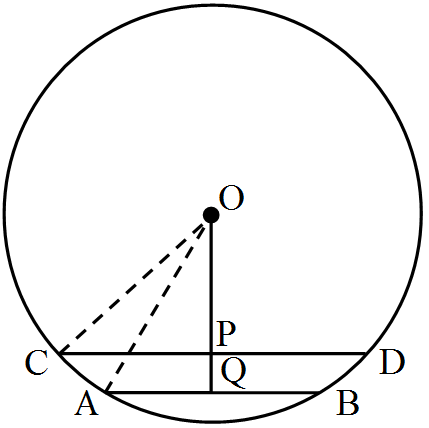

Two chords AB, CD of lengths 5cm, 11cm respectively of a circle are parallel. If the distance between AB and CD is 3cm, find the radius of the circle.

Answer

Let AB and CD be two parallel chord of the circle with center o such that AB = 5cm and CD = 11cm.let the radius of the circle be r cm.

Draw $\text{OP}\perp\text{AB}$ and $\text{OQ}\perp\text{CD}$ as well as point O, Q and P are collinear.
Clearly, PQ = 3cm
Let OQ = x then OP = x + 3
In $\triangle\text{OAP}$ and $\triangle\text{OCQ}$ we have
$\text{OA}^2=\text{OP}^2+\text{AP}^2$
$\Rightarrow\text{r}^2=(\text{x}+3)^2+\Big(\frac{5}{2}\Big)^2\dots(1)$
And
$\text{OC}^2=\text{OQ}^2+\text{CQ}^2$
$\Rightarrow\text{r}^2=\text{x}^2+\Big(\frac{11}{2}\Big)^2\dots(2)$
From (1) and (2) we get
$(\text{x}+3)^2+\Big(\frac{5}{2}\Big)^2=\text{x}^2+\Big(\frac{11}{2}\Big)^2$
$\Rightarrow\text{x}^2+\text{6x}+9+\frac{25}{4}=\text{x}^2+\frac{121}{4}$
$\Rightarrow\text{6x}+\frac{61}{4}=\frac{121}{4}$
$\Rightarrow\text{6x}=\frac{121-61}{4}$
$\Rightarrow\text{6x}=\frac{60}{4}$
$\Rightarrow\text{x}=\frac{5}{2}$
Putting the value of x in (2) we get,
$\text{r}^2=\Big(\frac{5}{2}\Big)^2+\Big(\frac{11}{2}\Big)^2$
$=\frac{25}{4}+\frac{121}{4}$
$=\frac{146}{4}$
$\Rightarrow\text{r}=\sqrt{\frac{146}{4}}$
$\text{r}=\sqrt{\frac{146}{4}}\text{cm}$

View full question & answer→

Question 24 Marks

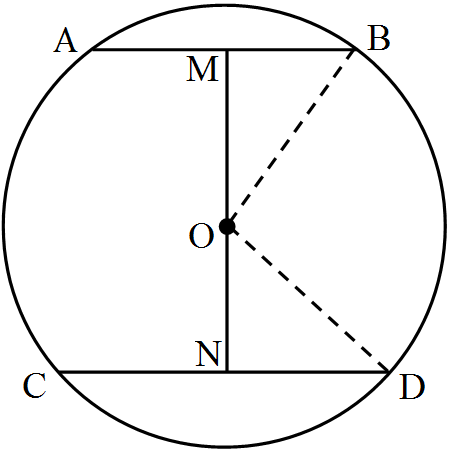

Two chords AB and CD of lengths 5cm and 11cm respectively of a circle are parallel to each other and are opposite side of its centre. If the distance between AB and CD is 6cm, find the radius of the circle.

Answer

Draw $\text{OM}\perp\text{AB}$ and $\text{ON}\perp\text{CD}.$

Join OB and OD.

$\text{BM}=\frac{\text{AB}}{2}=\frac{5}{2}$ [Perpendicular from the centre bisects the chord]

$\text{ND}=\frac{\text{CD}}{2}=\frac{11}{2}$

Let ON be x, so OM will be 6 - x.

$\triangle\text{MOB}$

$\text{OM}^2+\text{MB}^2=\text{OB}^2$

$(6-\text{x})^2+\Big(\frac{5}{2}\Big)^2+\text{OB}^2$

$36+\text{x}^2-12\text{x}+\frac{25}{4}=\text{OB}^2\dots(\text{i})$

In $\triangle\text{NOD}$

$\text{ON}^2+\text{ND}^2=\text{OD}^2$

$\text{x}^2+\Big(\frac{11}{2}\Big)^2=\text{OD}^2$

$\text{x}^2+\frac{121}{4}=\text{OD}^2\dots(\text{ii})$

We have OB = OD. [Radii of same circle]

So, from equation (i) and (ii).

$36+\text{x}^2-\text{12x}+\frac{25}{4}=\text{x}^2+\frac{121}{2}$

$\Rightarrow\text{12x}=36+\frac{25}{4}-\frac{121}{4}$

$=\frac{144+25-121}{4}$

$=\frac{48}{4}=12$

$\text{x}=1$

From equation (ii)

$(1)^2+\Big(\frac{121}{4}\Big)=\text{OD}^2$

$\text{OD}^2=1+\frac{121}{4}=\frac{125}{4}$

$\text{OD}=\frac{5\sqrt{5}}2{}$

So, the radius of the circle is found to be $55\sqrt{2}\text{cm}.$

View full question & answer→

Question 34 Marks

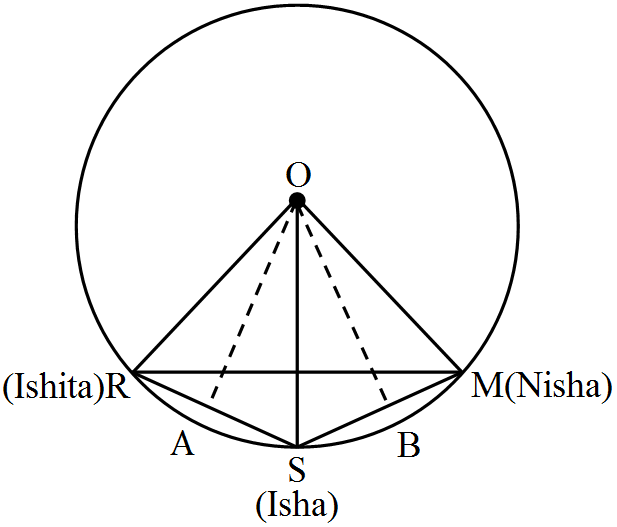

Three girls Ishita, Isha and Nisha are playing a game by standing on a circle of radius 20m drawn in a park. Ishita throws a ball to Isha, Isha to Nisha and Nisha to Ishita. If the distance between Ishita and Isha and between Isha and Nisha is 24m each, what is the distance between Ishita and Nisha.

Answer

Let R, S and M be the position of Ishita, Isha and Nisha respectively.

$\text{AR}=\text{AS}=\frac{24}{2}=12\text{cm}$

OR = OS = OM = 20 cm [Radii of circle]

In $\triangle\text{OAR,}$

OA² + AR² = OR²

OA² + 12² = 20²

OA² = 400 - 144 = 256m²

OA = 16m

We know that, in an isosceles triangle altitude divides the base.

So in $\triangle\text{RSM},\angle\text{RCS}=90^\circ$ and RC = CM

Area of $\triangle\text{ORS}=\frac{1}{2}\times\text{OA}\times\text{RS}$

$\Rightarrow\frac{1}{2}\times\text{RC}\times\text{OS}$

$=\frac{1}{2}\times16\times24$

$\Rightarrow\text{RC}\times20=16\times24$

$\Rightarrow\text{RC}=19.2$

$\Rightarrow\text{RM}=2(19.2)=38.4\text{m}$

So, the distance between Ishita and Nisha is 38.4m.

View full question & answer→

Question 44 Marks

The lengths of two parallel chords of a circle are 6cm and 8cm. If the smaller chord is at a distance of 4cm from the centre, what is the distance of the other chord from the centre?

Answer

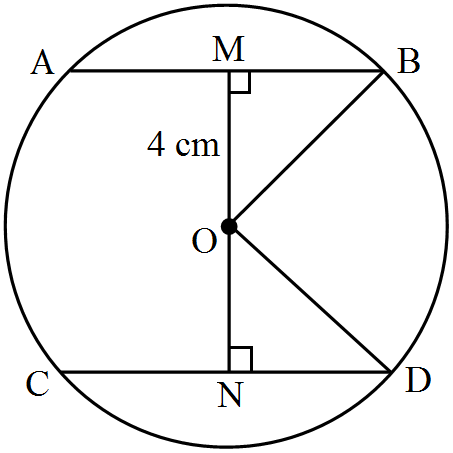

Distance of smaller chord AB from centre of circle = 4cm, OM = 4cm

$\text{MB}=\frac{\text{AB}}2{}=\frac{6}{2}=3\text{cm}$

In $\triangle\text{OMB }$

OM² + MB² = OB²

4² + 9² = OB²

16 + 9 = OB²

$\text{OB}=\sqrt{25}$

OB = 5cm

In $\triangle\text{OND }$

OD = OB = 5cm [Radii of same circle]

$\text{ND}=\frac{\text{CD}}{2}=\frac{8}{2}=4\text{cm}$

ON² + ND² = OD²

ON² + 4² = 5²

ON² = 25 - 16

$\text{ON}=\sqrt{9}$

ON = 3cm

So, the distance of bigger chord from the circle is 3cm.

View full question & answer→

Question 54 Marks

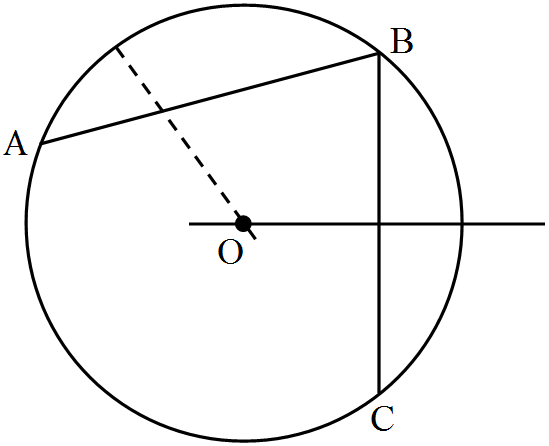

Suppose you are given a circle. Give a construction to find its centre.

Answer

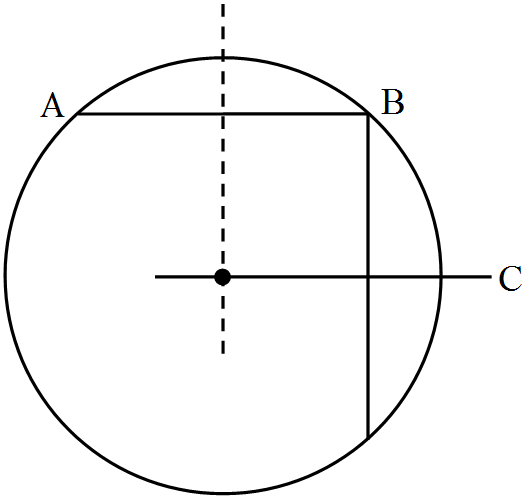

Steps of Construction:

Take three points A, B and C on the given circle.
Join AB and BC.
Draw the perpendicular bisectors of chord AB and BC which intersect each other at O.
Point O will be the required centre of the circle because we know that the perpendicular bisector of the chord always passes through the centre.

View full question & answer→

Question 64 Marks

Prove that the line segment joining the mid-point of the hypotenuse of a right triangle to its opposite vertex is half of the hypotenuse.

Answer

Let $\triangle\text{ABC}$ be a right triangle right angled at B. Let P be the mid-point of hypotenuse AC.
Draw a circle with centre at P and AC as a diameter.
Since, $\angle\text{ABC}=90^\circ.$ Therefore, the circle passes through B.
$\therefore$ BP = Radius
Also, AP = CP = Radius
$\therefore$ AP = BP = CP
Hence, $\text{BP}=\frac{1}2{}\text{AC}$

View full question & answer→

Question 74 Marks

Prove that the line joining the mid-point of a chord to the centre of the circle passes through the mid-point of the corresponding minor arc.

Answer

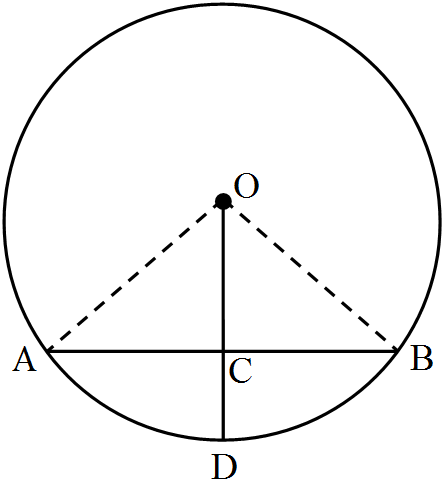

Given:

C is the mid-point of chord AB.
To prove: D is the mid-point of arc AB.
Proof:
In $\triangle\text{OAC}$ and $\triangle\text{OBC}$
OA = OB [Radius of circle]
OC = OC [Common]
AC = BC [C is the mid-point of AB]
Then $\triangle\text{OAC}\cong\triangle\text{OBC}$ [By SSS condition]
$\therefore\angle\text{AOC}=\angle\text{BOC}$
$\Rightarrow\text{m}\overline{\text{A}}\text{D}\cong\text{m}\overline{\text{B}}\text{D}$
$\Rightarrow\overline{\text{A}}\text{D}\cong\overline{\text{B}}\text{D}$
Hence, D is the mid-point of arc AB.

View full question & answer→

Question 84 Marks

Prove that the circles described on the four sides of a rhombus as diameters, pass through the point of intersection of its diagonals.

Answer

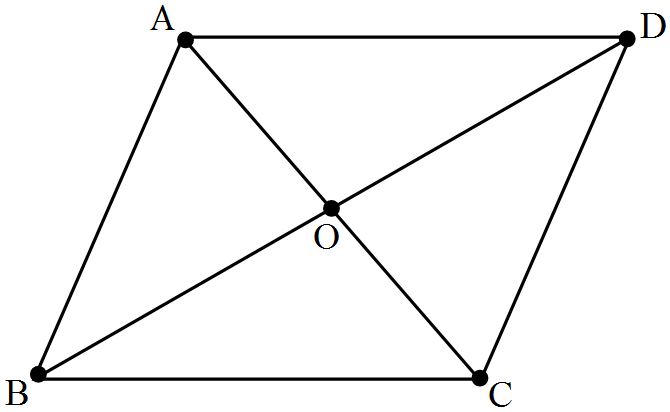

LetABCD be a rhombus such that its diagonals AC and BD intersect at O. Since, the diagonals of a rhombus intersect at right angle.
$\therefore\angle\text{AOB}=\angle\text{BOC}$
$\angle\text{COD}=\angle\text{DOA}=90^\circ$
Now, $\angle\text{AOB}=90^\circ\Rightarrow$ circle described on AB as diameter will pass through O.
Similarly, all the circles described on BC, AD and CD as diameters pass through O.

View full question & answer→

Question 94 Marks

Prove that the angle in a segment shorter than a semicircle is greater than a right angle.

Answer

Given: $\angle\text{ACB}$ is an angle in minor segment.
To prove: $\angle\text{ACB}>90^\circ$
Proof: By degree measure theorem
Reflex $\angle\text{AOB}=2\angle\text{ACB}$
And reflex $\angle\text{AOB}>180^\circ$
Then, $2\angle\text{ACB}>180^\circ$
$\Rightarrow\angle\text{ACB}>\frac{180^\circ}{2}$
$\Rightarrow\angle\text{ACB}>90^\circ$

View full question & answer→

Question 104 Marks

Prove that the angle in a segment greater than a semi-circle is less than a right angle.

Answer

Given: $\angle\text{ACB}$ is an angle in minor segment.

To prove: $\angle\text{ACB}<90^\circ$

Proof: By degree measure theorem

$\angle\text{AOB}=2\angle\text{ACB}$

And $\angle\text{AOB}<180^\circ$

Then, $2\angle\text{ACB}<180^\circ$

$\Rightarrow\angle\text{ACB}<\frac{180^\circ}{2}$

$\Rightarrow\angle\text{ACB}<90^\circ$

View full question & answer→

Question 114 Marks

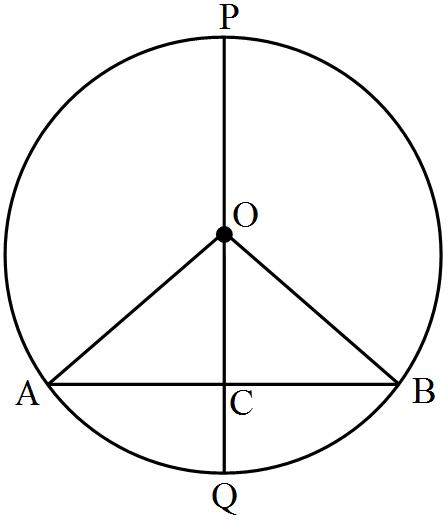

Prove that a diameter of a circle which bisects a chord of the circle also bisects the angle subtended by the chord at the centre of the circle.

Answer

Given:

PQ is a diameter of circle which bisects the chord AB at C.
To Prove: PQ bisects $\angle\text{AOB}$
Proof:
In $\angle\text{AOC}$ and $\angle\text{BOC}$
OA = OB [Radius of circle]
OC = OC [Common]
AC = BC [Given]
Then $\triangle\text{AOC}\cong\triangle\text{BOC}$ [By SSS condition]
$\angle\text{AOC}=\angle\text{BOC}$ [C.P.C.T]
Hence PQ bisects $\angle\text{AOB}.$

View full question & answer→

Question 124 Marks

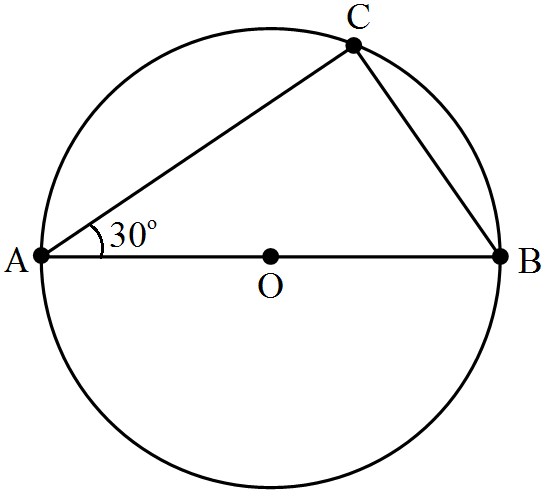

On a semi-circle with AB as diameter, a point C is taken, so that $\text{m}\big(\angle\text{CAB}\big)=30^\circ.$ Find $\text{m}\big(\angle\text{ACB}\big)$ and $\text{m}\big(\angle\text{ABC}\big).$

Answer

We have, $\angle\text{CAB}=30^\circ$
$\therefore\angle\text{ACB}=90^\circ$ [Angle in semicircle]
In $\triangle\text{ABC},$ by angle sum property
$\angle\text{CAB}+\angle\text{ACB}+\angle\text{ABC}=180^\circ$
$\Rightarrow30^\circ+90^\circ+\angle\text{ABC}=180^\circ$
$\Rightarrow\angle\text{ABC}=180^\circ-90^\circ-30^\circ=60^\circ$

View full question & answer→

Question 134 Marks

O is the circumference of the triangle ABC and OD is perpendicular on BC. Prove that $\angle\text{BOD}=\angle\text{A}.$

Answer

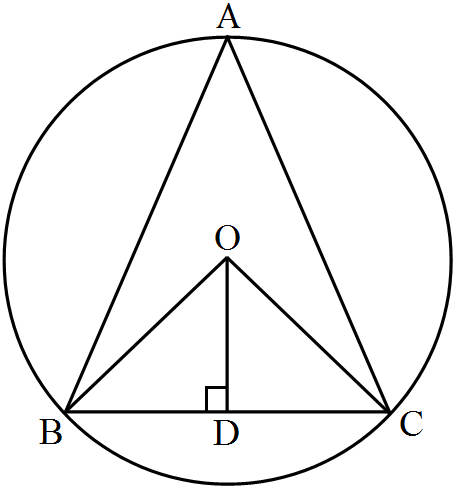

Given O is the circum centre of triangle ABC and $\text{OD}\perp\text{BC}$

To prove $\angle\text{BOD}=2\angle\text{A}$

Proof:

In $\triangle\text{OBD}$ and $\triangle\text{OCD}$

$\angle\text{ODB}=\angle\text{ODC}$ [Each 90°]

OB = OC [Radius of circle]

OD = OD [Common]

Then $\triangle\text{OBD}\cong\triangle\text{OCD}$ [By RHS Condition].

$\therefore\angle\text{BOD}=\angle\text{COD}\dots(\text{i})$ [PCT].

By degree measure theorem

$\angle\text{BOC}=2\angle\text{BAC}$

$\Rightarrow2\angle\text{BOD}=2\angle\text{BAC}$ [By using (i)]

$\Rightarrow\angle\text{BOD}=\angle\text{BAC}$

View full question & answer→

Question 144 Marks

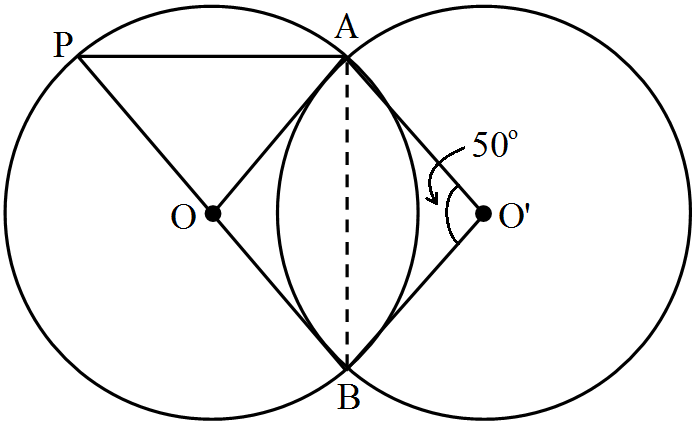

In the given figure, two congruent circles with centres O and O' intersect at A and B. If $\angle\text{AOB} = 50^\circ,$ then find $\angle\text{APB.}$

Answer

Since both the circles are congruent, they will have equal radii. Let their radii be ‘r’
So, from the given figure we have,
OA = OB = O'A = O'B = r

Now, since all the sides of the quadrilateral OBO’A are equal it has to be a rhombus.
One of the properties of a rhombus is that the opposite angles are equal to each other.
So, since it is given that $\angle\text{AO}'\text{B}=50^\circ$ we can say that the angle opposite it, that is to say that $\angle\text{AO}\text{B}$ should also have the same value.
Hence we get $\angle\text{AO}\text{B}=50^\circ$
Now, consider the first circle with the centre ‘O’ alone. ‘AB’ forms a chord and it subtends an angle of 50° with its centre, that is $\angle\text{AO}\text{B}=50^\circ.$
A property of a circle is that the angle subtended by an arc at the centre of the circle is double the angle subtended by the arc in the remaining part of the circle.
This means that,
$\angle\text{APB}=\frac{\angle\text{AOB}}{2}$
$=\frac{50^\circ}{2}$
$=25^\circ$
Hence the measure of $\angle\text{APB}$ is 25°.

View full question & answer→

Question 154 Marks

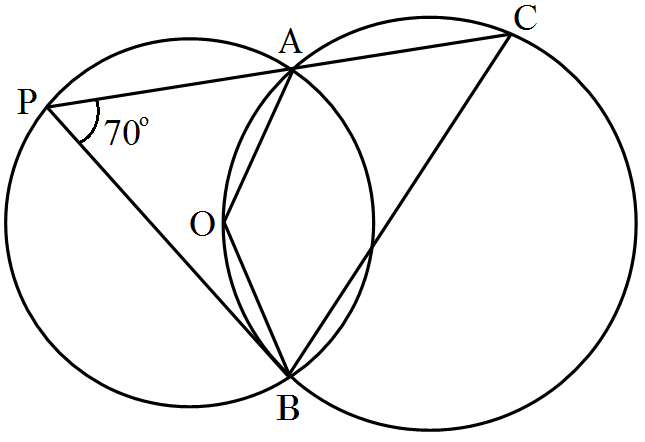

In the given figure, two circles intersect at A and B. The centre of the smaller circle is O and it lies on the circumference of the larger circle. If $\angle\text{APB} = 70^\circ,$ find $\angle\text{ACB.}$

Answer

Consider the smaller circle whose centre is given as ‘O’.
The angle subtended by an arc at the centre of the circle is double the angle subtended by the arc in the remaining part of the circle.

So, here we have
$\angle\text{AOB}=2\angle\text{APB}$
$=2(70^\circ)$
$\angle\text{AOB}=140^\circ$
Now consider the larger circle and the points ‘A’, ‘C’, ‘B’ and ‘O’ along its circumference. ‘ACBO’ form a cyclic quadrilateral.
In a cyclic quadrilateral it is known that the opposite angles are supplementary, meaning that the opposite angles add up to 180°.
$\angle\text{AOB}+\angle\text{ACB}=180^\circ$
$\angle\text{ACB}=180^\circ-\angle\text{AOB}$
$=180^\circ-140^\circ$
$\angle\text{ACB}=40^\circ$
Hence ,the measure of $\angle\text{ACB}$ is $40^\circ.$

View full question & answer→

Question 164 Marks

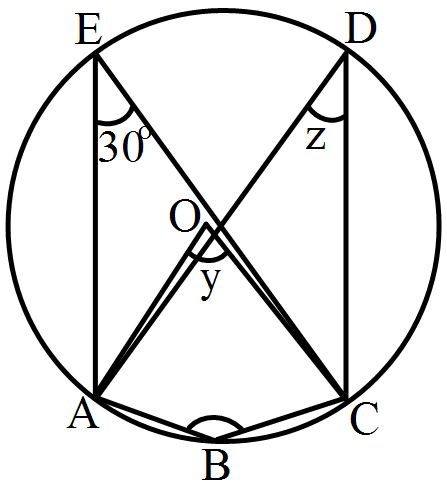

In the given figure, O is the center of the circle. If $\angle\text{CEA}=30^\circ,$ find the value of x, y and z.

Answer

We have, $\angle\text{CEA}=30^\circ$
Since, quad. ABCE is a cyclic quadrilateral.
Then, $\angle\text{ABC}+\angle\text{CEA}=180^\circ$
$\Rightarrow\text{x}+30^\circ=180^\circ$
$\Rightarrow\text{x}=180^\circ-30^\circ=150^\circ$
By degree measure theorem
$\angle\text{AOC}=2\angle\text{CEA}$
$\Rightarrow\text{y}=2\times30^\circ=60^\circ$
$\therefore\angle\text{ADC}=\angle\text{CEA}$ [Angle in same segment]
$\Rightarrow\text{z}=30^\circ$

View full question & answer→

Question 174 Marks

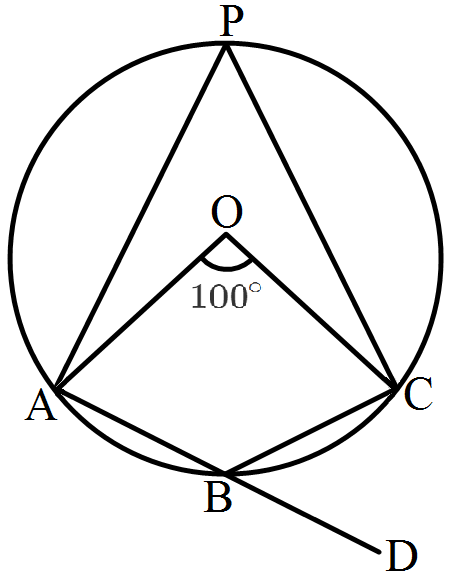

In the given figure, O is the center of the circle. Find $\angle\text{CBD}.$

Answer

We have, $\angle\text{AOC}=100^\circ$
By degree measure theorem
$\angle\text{AOC}=2\angle\text{APC}$
$\Rightarrow100^\circ=2\angle\text{APC}$
$\Rightarrow\angle\text{APC}=\frac{100^\circ}{2}=50^\circ$
$\therefore\angle\text{APC}+\angle\text{ABC}=180^\circ$ [Opposite angles of cyclic quad.]
$\Rightarrow50^\circ+\angle\text{ABC}=180^\circ$
$\Rightarrow\angle\text{ABC}=180^\circ-50^\circ=130^\circ$
$\therefore\angle\text{ABC}+\angle\text{CBD}=180^\circ$ [Linear pair of angles]
$\Rightarrow130^\circ+\angle\text{CBD}=180^\circ$
$\Rightarrow\angle\text{CBD}=180^\circ-130^\circ=50^\circ$

View full question & answer→

Question 184 Marks

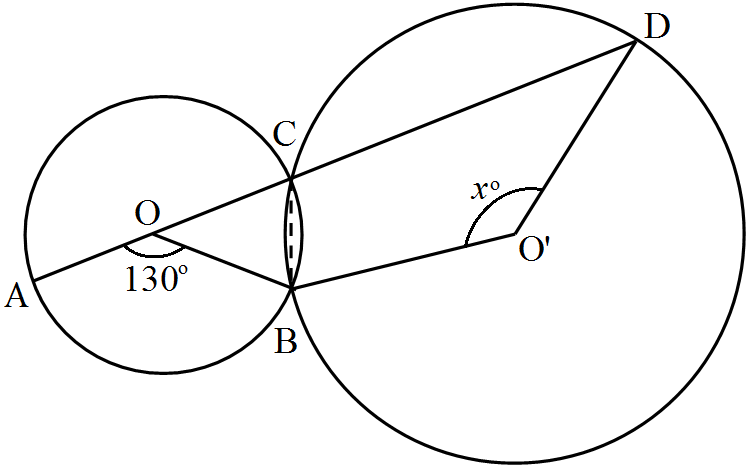

In the given figure, O and O' are centers of two circles intersecting at B and C. ACD is a straight line, find x.

Answer

By degree measure theorem

$\angle\text{AOB} = 2\angle\text{ACB}$

$\Rightarrow130^\circ=2\angle\text{ACB}$

$\Rightarrow\angle\text{ACB}=\frac{130^\circ}{2}=65^\circ$ [Liner a pair of angles]

$\Rightarrow65^\circ+\angle\text{BCD}=180^\circ$

$\Rightarrow\angle\text{BCD}=180^\circ-65^\circ=115^\circ$ By degree measure theorem reflex

$\angle\text{BOD}=2\angle\text{BCD}$

$\Rightarrow\text{reflex }\angle\text{BOD}=2\times115^\circ=230^\circ$

Now, reflex $\angle\text{BOD}+\angle\text{BO}'\text{D}=360^\circ$ [Complex angle]

$\Rightarrow230^\circ+\text{x}=360^\circ$

$\Rightarrow\text{x}=360^\circ-230^\circ$

$\therefore\text{x}=130^\circ$

View full question & answer→

Question 194 Marks

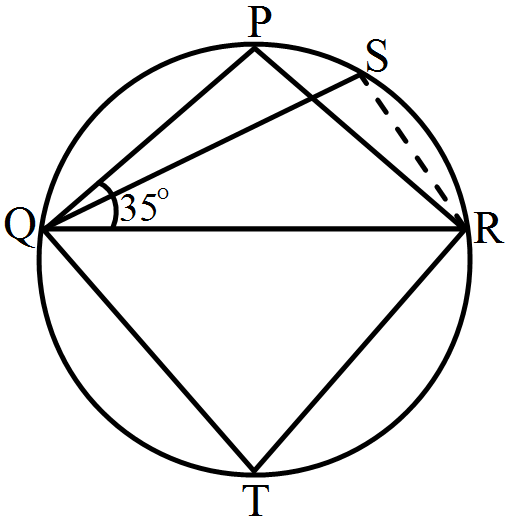

In the given figure, $\triangle\text{PQR}$ is an isosceles triangle with PQ = PR and $\text{m}\angle\text{PQR}=35^\circ.$ Find $\text{m}\angle\text{QSR}$ and $\text{m}\angle\text{QTR}.$

Answer

We have, $\angle\text{PQR}=35^\circ$
Since, $\triangle\text{PQR}$ is an isosceles triangle with PQ = PR.
Then, $\angle\text{PQR}=\angle\text{PRQ}=35^\circ$
In $\triangle\text{PQR},$ by angle sum property
$\angle\text{p}+\angle\text{PQR}+\angle\text{PRQ}=180^\circ$
$\Rightarrow\angle\text{p}+35^\circ+35^\circ=180^\circ$
$\Rightarrow\angle\text{p}=180^\circ-35^\circ-35^\circ=110^\circ$
$\therefore\angle\text{QSR}=\angle\text{p}=110^\circ$ [Angles in same segment]
Now, $\angle\text{QSR}+\angle\text{QTR}=180^\circ$ [Opposite angles of cyclic quad.]
$\Rightarrow110^\circ+\angle\text{QTR}=180^\circ$
$\Rightarrow\angle\text{QTR}=180^\circ-110^\circ=70^\circ$

View full question & answer→

Question 204 Marks

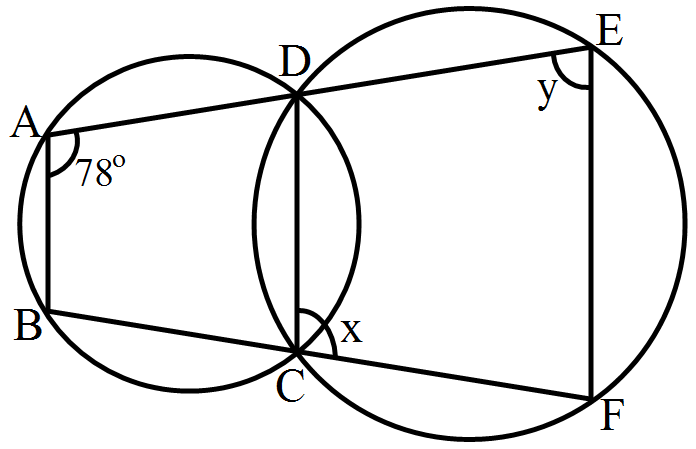

In the given figure, $\angle\text{BAD}=78^\circ,\angle\text{DCF}=\text{x}^\circ$ and $\angle\text{DEF}=\text{y}^\circ.$ Find the values of x and y.

Answer

We have, $\angle\text{BAD}=78^\circ,\angle\text{DCF}=\text{x}^\circ$ and $\angle\text{DEF}=\text{y}^\circ.$
Since, ABCD is a cyclic quadrilateral.
Then, $\angle\text{BAD}+\angle\text{BCD}=180^\circ$
$\Rightarrow78^\circ+\angle\text{BCD}=180^\circ$
$\Rightarrow\angle\text{BCD}=180^\circ-78^\circ=102^\circ$
Now, $\angle\text{BCD}+\angle\text{DCF}=180^\circ$ [Linear pair of angles]
$\Rightarrow102^\circ=\text{x}^\circ=180^\circ$
$\Rightarrow\text{x}=180^\circ-102^\circ=78^\circ$
Since, DCEF is a cyclic quadrilateral
Then, x + y = 180^º
⇒ 78^º+ y = 180^º
⇒ y = 180^º - 78^º = 102^º

View full question & answer→

Question 214 Marks

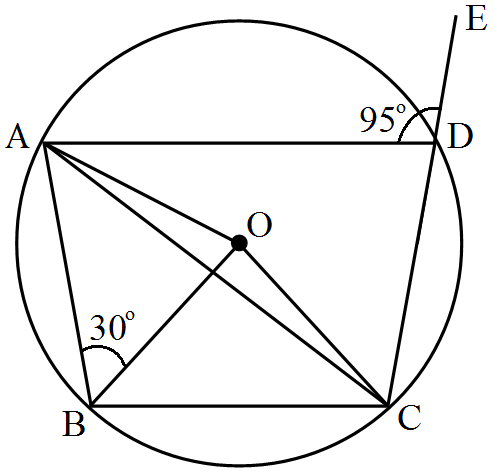

In the given figure, ABCD is a quadrilateral inscribed in a circle with centre O. CD is produced to E such that $\angle\text{AED} = 95^\circ$ and $\angle\text{OBA} = 30^\circ$ Find $\angle\text{OAC.}$

Answer

We are given ABCD is a quadrilateral with center O, $\angle\text{ADE}=95^\circ$ and $\angle\text{OBA}=30^\circ$
We need to find $\angle\text{OAC}$
We are given the following figure:

Since $\angle\text{ADE}=95^\circ$
$\Rightarrow\angle\text{ADC}=180^\circ-95^\circ=85^\circ$
Since squo; ABCD is cyclic quadrilateral
This means
$\angle\text{ABC}+\angle\text{ADC}=180^\circ$
$\Rightarrow\angle\text{ABO}+\angle\text{OBC}+\angle\text{ADC}=180^\circ$
$\Rightarrow30^\circ+\angle\text{OBC}+85^\circ=180^\circ$
$\Rightarrow\angle\text{OBC}=180^\circ-115^\circ=65^\circ$
Since OB = OC (radius)
$\Rightarrow\angle\text{OBC}+\angle\text{OCB}=65^\circ$
In $\triangle\text{OBC}$
$\angle\text{BOC}+\angle\text{OBC}+\angle\text{OBC}=180^\circ$
$\angle\text{BOC}+2\angle\text{OBC}=180^\circ$
$\angle\text{BOC}+2\times65^\circ=180^\circ$
$\angle\text{BOC}=180^\circ-130^\circ$
$\angle\text{BOC}=50^\circ$
Since DBAC and DBOC are formed on the same base which is chord.
So,
$\angle\text{BAC}=\frac{\angle\text{BOC}}{2}$
$=\frac{50^\circ}{2}$
$\angle\text{BAC}=25^\circ$
Consider $\triangle\text{BOA}$ which is isosceles triangle.
$\angle\text{OAB}=30^\circ$
$\Rightarrow\angle\text{OAC}+\angle\text{BAC}=30^\circ$
$\Rightarrow\angle\text{OAC}+25^\circ=30^\circ$
$\Rightarrow\angle\text{OAC}=5^\circ$

View full question & answer→

Question 224 Marks

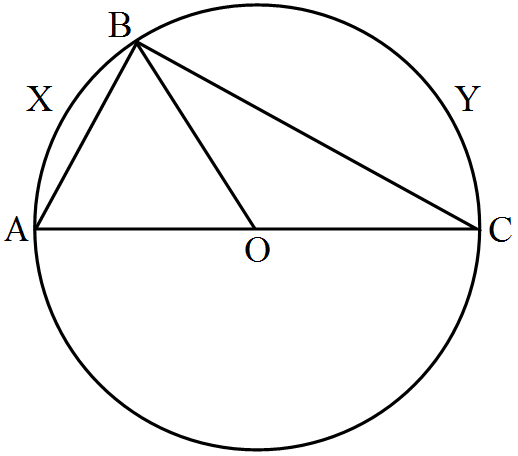

In the given figure, if O is the circumcentre of $\angle\text{ABC},$ then find the value of $\angle\text{OBC} + \angle\text{BAC.}$

Answer

Since, O is the circumcentre of $\triangle\text{ABC,}$ So, O would be centre of the circle passing through points A, B and C.

$\angle\text{ABC}=90^\circ$ (Angle in the semicircle is 90°)

$\Rightarrow\angle\text{OAB}+\angle\text{OBC}=90^\circ\dots(1)$

As OA = OB (Radii of the same circle)

$\therefore\angle\text{OAB}=\angle\text{OBA}$ (Angle opposite to equal sides are equal)

or, $\angle\text{BAC}=\angle\text{OBA}$

From (1)

$\angle\text{BAC}+\angle\text{OBC}=90^\circ$

View full question & answer→

Question 234 Marks

In the given figure, ABCD is a cyclic quadrilateral in which AC and BD are its diagonals. If $\angle\text{DBC}=55^\circ$ and $\angle\text{BAC}=45^\circ,$ find $\angle\text{BCD}.$

Answer

Since angles in the same segment of a circle are equal.
$\therefore\angle\text{CAD}=\angle\text{DBC}=55^\circ$
$\therefore\angle\text{DAB}=\angle\text{CAD} +\angle\text{BAC}=55^\circ +45^\circ=100^\circ$
But, $\angle\text{DAB}+\angle\text{BCD}=180^\circ$ [Opposite angles of a cyclic quadrilateral]
$\therefore\angle\text{BCD}=180^\circ-100^\circ=80^\circ$

View full question & answer→

Question 244 Marks

In the given figure, ABCD is a cyclic quadrilateral. Find the value of x.

Answer

$\angle\text{EDC}+\angle\text{CDA}=180^\circ$ [Linear pair of angles]
$\Rightarrow80^\circ+\angle\text{CDA}=180^\circ$
$\Rightarrow\angle\text{CDA}=180^\circ-80^\circ=100^\circ$
Since, ABCD is a cyclic quadrilateral.
$\angle\text{ADC}+\angle\text{ABC}=180^\circ$
$\Rightarrow100^\circ+\angle\text{ABC}=180^\circ$
$\Rightarrow\angle\text{ABC}=180^\circ-100^\circ=80^\circ$
Now, $\angle\text{ABC}+\angle\text{ABF}=180^\circ$ [Linear pair of angles]
$\Rightarrow80^\circ+\text{x}^\circ=180^\circ$
$\Rightarrow\text{x}=180^\circ-80^\circ=100^\circ$

View full question & answer→

Question 254 Marks

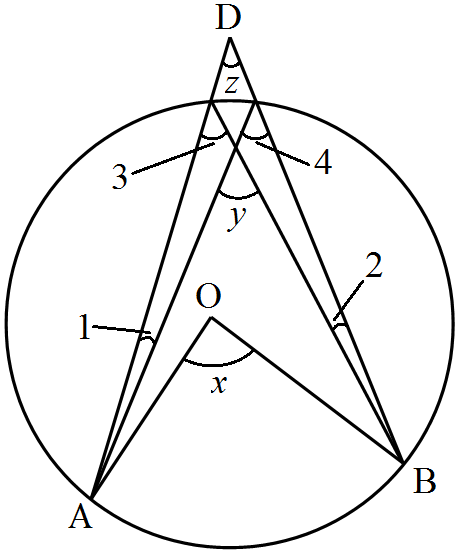

In figure, O is the centre of the circle, then prove that $\angle\text{x}=\angle\text{y}+\angle\text{z}.$

Answer

We have,
$\angle3=\angle4$ [Angles in same segment]
$\therefore\angle\text{x}=2\angle3$ [By degree measure theorem]
$\Rightarrow\angle\text{X}=\angle3+\angle3$
$\Rightarrow\angle\text{X}=\angle3+\angle4\dots(\text{i})$ $[\angle3=\angle4]$
But $\angle\text{y}=\angle3+\angle1$ [By exterior angle property]
$\Rightarrow\angle3=\angle\text{y}-\angle1\dots(\text{ii})$
From (i) and (ii)
$\angle\text{x}=\angle\text{y}-\angle1+\angle4$
$\Rightarrow\angle\text{x}=\angle\text{y}+\angle4-\angle1$
$\Rightarrow\angle\text{x}=\angle\text{y}+\angle\text{z}+\angle1-\angle1$ [By exterior angle property]
$\Rightarrow\angle\text{x}=\angle\text{y}+\angle\text{z}$

View full question & answer→

Question 264 Marks

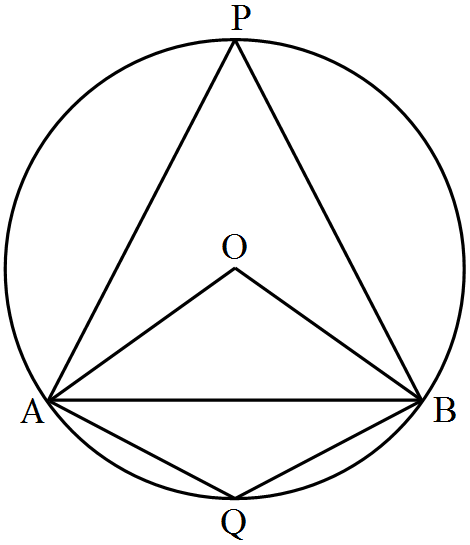

In figure, O is the centre of the circle. If $\angle\text{APB}=50^\circ,$ find $\angle\text{AOB}$ and $\angle\text{OAB}.$

Answer

$\angle\text{APB}=50^\circ$

By degree measure theorem

$\angle\text{AOB}=2\angle\text{APB}$

$\Rightarrow\angle\text{APB}=2\times50^\circ=100^\circ$ since OA = OB [Radius of circle]

Then $\angle\text{OAB}=\angle\text{OBA}$ [Angles opposite toequalsides]

Let $\angle\text{OAB}=\text{x}$

In $\triangle\text{OAB},$ by angle sum property

$\angle\text{OAB}+\angle\text{OBA}+\angle\text{AOB}=180^\circ$

$\Rightarrow\text{x}+\text{x}+100^\circ=180^\circ$

$\Rightarrow\text{2x}=180^\circ-100^\circ$

$\Rightarrow\text{2x}=80^\circ$

$\Rightarrow\text{x}=40^\circ$

$\angle\text{OAB}=\angle\text{OBA}=40^\circ$

View full question & answer→

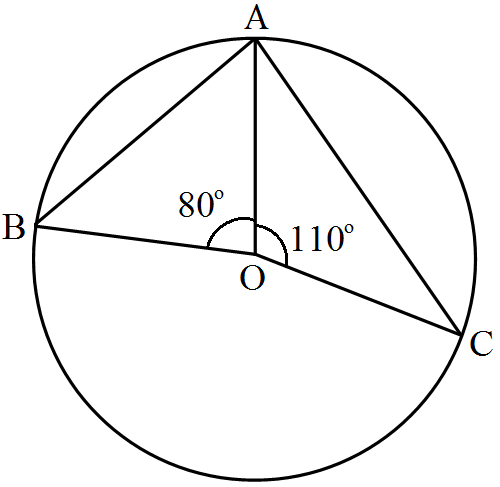

Question 274 Marks

In figure, O is the centre of the circle. Find $\angle\text{BAC}.$

Answer

We have $\angle\text{AOB}=80^\circ$

And $\angle\text{AOC}=110^\circ$

Therefore, $\angle\text{AOB}+\angle\text{AOC}+\angle\text{BOC}=360^\circ$ [Complete angle]

$\Rightarrow80^\circ+100^\circ+\angle\text{BOC}=360^\circ$

$\Rightarrow\angle\text{BOC}=360^\circ-80^\circ-110^\circ$

$\Rightarrow\angle\text{BOC}=170^\circ$

By degree measure theorem

$\angle\text{BOC}=2\angle\text{BAC}$

$\Rightarrow170^\circ=2\angle\text{BAC}$

$\Rightarrow\angle\text{BAC}=\frac{170^\circ}{2}=85^\circ$

View full question & answer→

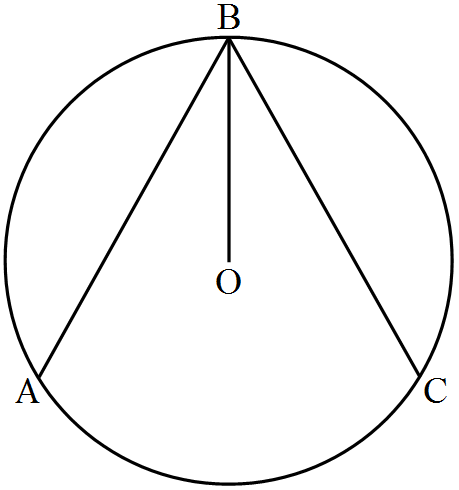

Question 284 Marks

In figure, O is the centre of the circle, BO is the bisector of $\angle\text{ABC}.$ Show that AB = AC.

Answer

Given, BO is the bisector of $\angle\text{ABC}$
To prove AB = BC
Proof:
Since, BO is the bisector of $\angle\text{ABC}$
Then, $\angle\text{ABO}=\angle\text{CBO}\dots(\text{i})$
Since, OB = OA [Radius of circle]
Then, $\angle\text{ABO}=\angle\text{DAB}\dots(\text{ii})$ [opposite angles to equal sides]
Since OB = OC [Radius of circle]
Then, $\angle\text{OAB}=\angle\text{OCB}\dots(\text{iii})$ [opposite angles to equal sides]
Compare equations (i), (ii) and (iii)
$\angle\text{OAB}=\angle\text{OCB}\dots(\text{iii})$
In $\triangle\text{OAB}$ and $\triangle\text{OCB}$
$\angle\text{OAB}=\angle\text{OCB}$ [From (iv)]
$\angle\text{OBA}=\angle\text{OBC}$ [Given]
OB = OB [Common]
Then, $\triangle\text{OAB}\cong\triangle\text{OCB}$ [By AAS condition]
$\therefore\text{AB}=\text{BC}$ [C.P.C.T.]

View full question & answer→

Question 294 Marks

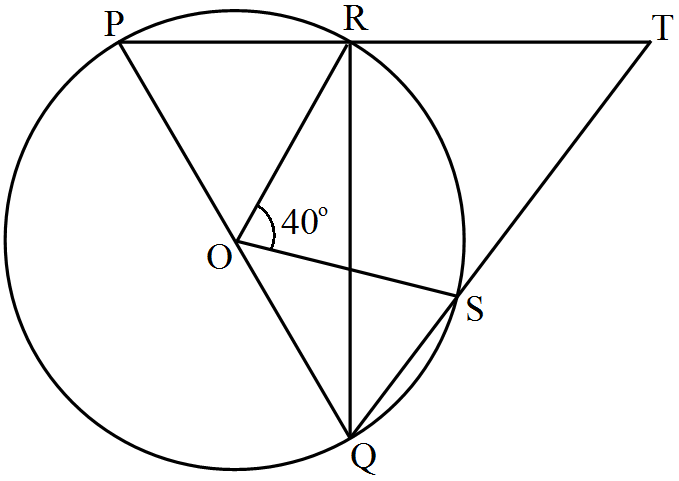

In figure, O is the centre of a circle and PQ is a diameter. If $\angle\text{ROS} = 40^\circ, $ find $\angle\text{RTS}.$

Answer

Since PQ is diameter
Then,
$\angle\text{PRQ} = 90^\circ$ [Angle in semicircle]
$\therefore\angle\text{PRQ}+\angle\text{TRQ}=180^\circ$ [Linear pair of angle]
$900+\angle\text{TRQ}=180^\circ$
$\angle\text{TRQ}=180^\circ-90^\circ=90^\circ$
By degree measure theorem
$\angle\text{ROS}=2\angle\text{RQS}$
$\Rightarrow40^\circ=2\angle\text{RQS}$
$\Rightarrow\angle\text{RQS}=\frac{40^\circ}{2}=20^\circ$
In $\triangle\text{RQT},$ by Angle sum property
$\angle\text{RQT}+\angle\text{QRT}+\angle\text{RTS}=180^\circ$
$\Rightarrow20^\circ+90^\circ+\angle\text{RTS}=180^\circ$
$\Rightarrow\angle\text{RTS}=180^\circ-20^\circ-90^\circ=70^\circ$

View full question & answer→

Question 304 Marks

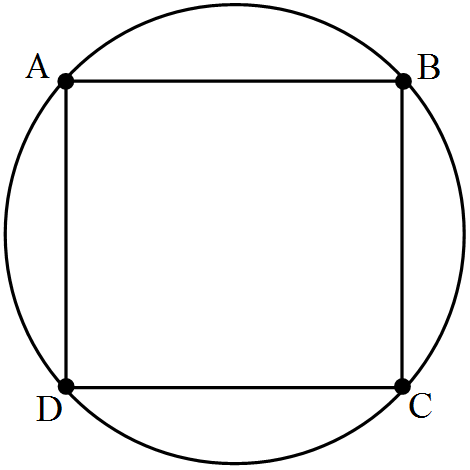

In a cyclic quadrilateral ABCD if $\text{m}\angle\text{A}=\big(\text{m}\angle\text{C}\big).$ Find $\text{m}\angle\text{A}.$

Answer

We have, $\angle\text{A}=3\angle\text{C}$
Let $\angle\text{C}=\text{x}$
Then, $\angle\text{A}=\text{3x}$
$\therefore\angle\text{A}+\angle\text{C}=180^\circ$ [Opposite angles of cyclic quad.]
$\Rightarrow\text{3x}+\text{x}=180^\circ$
$\Rightarrow\text{4x}=180^\circ$
$\Rightarrow\text{x}=\frac{180^\circ}{4}=45^\circ$
$\therefore\angle\text{A}=\text{3x}$
$=3\times45^\circ$
$=135^\circ$

View full question & answer→

Question 314 Marks

In a cyclic quadrilateral ABCD, if $\angle\text{A}-\angle\text{C}=60^\circ,$ prove that the smaller of two is 60^º

Answer

We have
$\angle\text{A}-\angle\text{C}=60^\circ\dots(1)$
Since, ABCD is a cyclic quadrilateral
Then $\angle\text{A}+\angle\text{C}=180^\circ\dots(2)$
Add equations (1) and (2)
$\angle\text{A}-\angle\text{C}+\angle\text{A}+\angle\text{C}=60^\circ+180^\circ$
$\Rightarrow2\angle\text{A}=240^\circ$
$\Rightarrow\angle\text{A}=\frac{240^\circ}{2}=120^\circ$
Put value of $\angle\text{A}$ in equation (2)
$120^\circ+\angle\text{C}=180^\circ$
$\Rightarrow\angle\text{C}=180^\circ-120^\circ=60^\circ$

View full question & answer→

Question 324 Marks

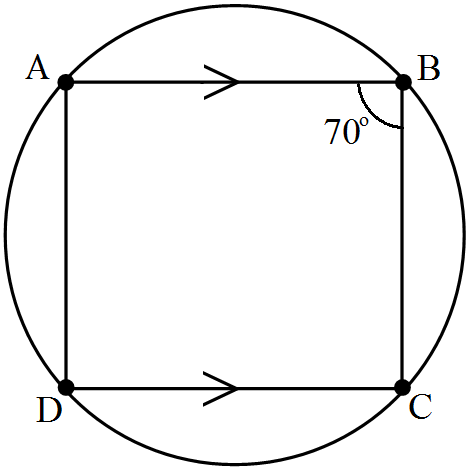

In a cyclic quadrilateral ABCD if AB || CD and $\angle\text{B}=70^\circ,$ find the remaining angles.

Answer

We have, $\angle\text{B}=70^\circ$

Since, ABCD is a cyclic quadrilateral

Then, $\angle\text{B}+\angle\text{D}=180^\circ$

$\Rightarrow70^\circ+\angle\text{D}=180^\circ$

$\Rightarrow\angle\text{D}=180^\circ-70^\circ=110^\circ$

Since, AB || DC

Then, $\angle\text{B}+\angle\text{C}=180^\circ$ [Co-interior angles]

$\Rightarrow70^\circ+\angle\text{C}=180^\circ$

$\Rightarrow\angle\text{C}=180^\circ-70^\circ=110^\circ$

Now, $\angle\text{A} +\angle\text{C}=180^\circ$ [Opposite angles of cyclic quad.]

$\Rightarrow\angle\text{A}+110^\circ=180^\circ$

$\Rightarrow\angle\text{A}=180^\circ-110^\circ=70^\circ$

View full question & answer→

Question 334 Marks

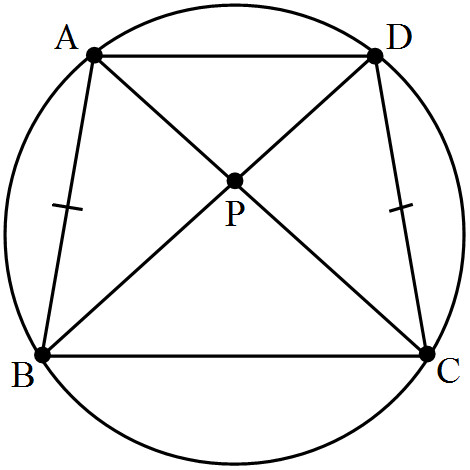

If the two sides of a pair of opposite sides of a cyclic quadrilateral ae equal, prove that its diagonals are equal.

Answer

Given ABCD is a cyclic quadrilateral in which AB = DC
To prove AC = BD
Proof In $\triangle\text{PAB}$ and $\triangle\text{PDC}$
$\text{AB}=\text{DC}$ [Given]
$\angle\text{BAP}=\angle\text{CDP}$ [Angles in the same segment]
$\angle\text{PBA}=\angle\text{PCD}$ [Angles in same segment]
Then, $\triangle\text{PAB}\cong\triangle\text{PDC}$ [By ASA condition]
$\therefore\text{PA}=\text{PD}\dots(1)$ [C.P.C.T.]
and $\text{PC}=\text{PB}\dots(2)$ [C.P.C.T.]
Add equation (1) and (2)
PA + PC = PD + PB
⇒ AC = BD

View full question & answer→

Question 344 Marks

Given an arc of a circle, complete the circle.

Answer

Steps of Construction:

Take three points A, B and C on the given arc.
Join AB and BC.
Draw the perpendicular bisectors of chords AB and BC which intersect each other at point O. Then O will be the required centre of the required circle.
Join OA.
With centre O and radius OA, complete the circle.

View full question & answer→

Question 354 Marks

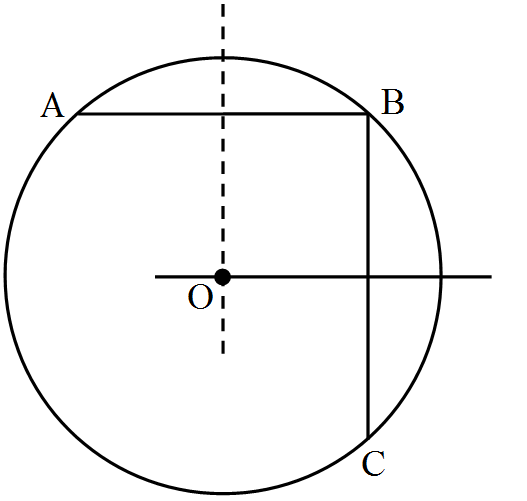

Give a method to find the centre of a given circle.

Answer

Steps of Construction:

Take three points A, B and C on the given circle.
Join AB and BC.
Draw the perpendicular bisectors of the chord AB and BC which intersect each other at O.
Point O will give the required circle because we know that, the Perpendicular bisectors of chord always pass through the centre.

View full question & answer→

Question 364 Marks

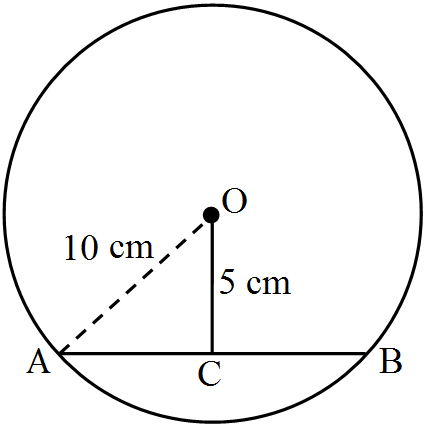

Find the length of a chord which is at a distance of 5cm from the centre of a circle of radius 10cm.

Answer

Given that,

Distance (OC) = 5cm

Radius of the circle (OA) = 10cm

In $\triangle\text{OCA,}$ by Pythagoras theorem

OC²+ AC²= OA²

⇒ 5² + AC² = 10²

⇒ 25 + AC² = 100

⇒ AC² = 100 - 25

⇒ AC² = 75

$\Rightarrow\text{AC}=\sqrt{75}$

⇒ AC = 8.66cm

We know that, the perpendicular from the centre to chord bisects the chord

Therefore, AC = BC = 8.66cm

Then the chord AB = 8.66 + 8.66

= 17.32cm

View full question & answer→

Question 374 Marks

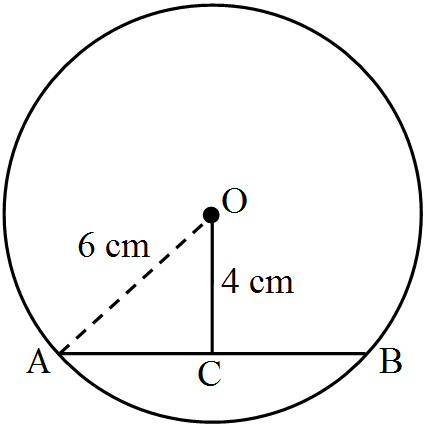

Find the length of a chord which is at a distance of 4cm from the centre of a circle of radius 6cm.

Answer

Given that,

Distance (OC) = 4cm

Radius of the circle (OA) = 6cm

In $\triangle\text{OCA,}$ by Pythagoras theorem

AC²+ OC²= OA²

⇒ AC² + 4² = 6²

⇒ AC² = 36 - 16

⇒ AC² = 20

$\Rightarrow\text{AC}=\sqrt{20}$

⇒ AC = 4.47cm

We know that the perpendicular distance from centre to chord bisects the chord.

AC = BC = 4.47cm

Then AB = 4.47 + 4.47

= 8.94cm

View full question & answer→

Question 384 Marks

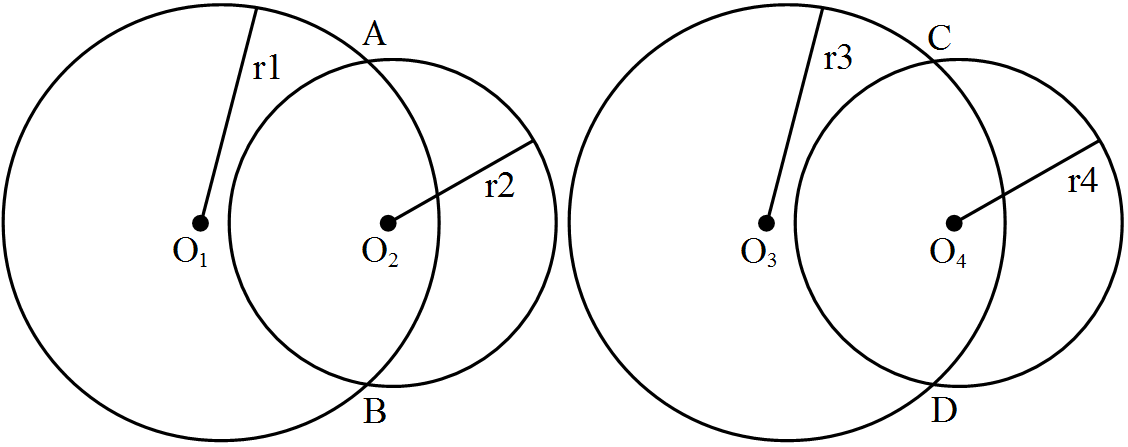

Draw different pairs of circles. How many points does each pair have in common? What is the maximum number of common points?

Answer

Each pair of circles have 0, 1 or 2 points in common.
The maximum number of points in common is ‘2’.

View full question & answer→

Question 394 Marks

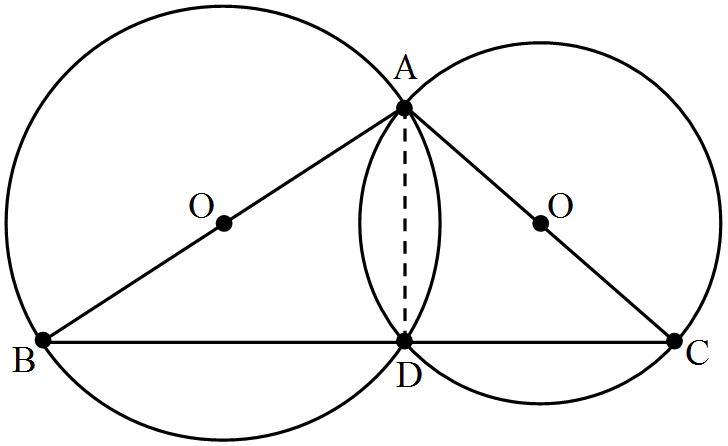

Circles are described on the sides of a triangle as diameters. Proved that the circle on any two sides intersect each other on the third side (or third side produced).

Answer

Since, AB is a diameter
Then, $\angle\text{ADB}=90^\circ\dots(1)$ [Angles in semicircle]
Since, AC is a diameter
Then, $\angle\text{ADC}=90^\circ\dots(2)$ [Angles in semicircle]
Add equations (1) and (2)
$\angle\text{ADB}+\angle\text{ADC}=90^\circ+90^\circ$
$\Rightarrow\angle\text{BDC}=180^\circ$
Then, BDC is a line
Hence, the circles on any two sides intersect each other on the third side.

View full question & answer→

Question 404 Marks

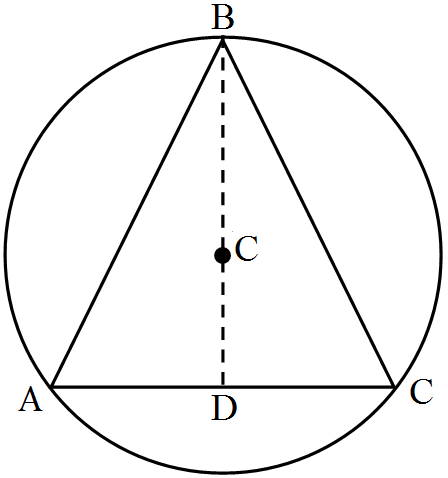

An equilateral triangle of side 9cm is inscribed in a circle. Find the radius of the circle.

Answer

Let ABC be an equilateral triangle of side 9cm and let AD is one of its median.

Let G be the centroid of $\triangle\text{ABC}$ Then AG : GD = 2 : 1

We know that in an equilateral triangle, centroid coincides with the circum centre.

Therefore, G is the centre of the circumference with circum radius GA.

Also G is the centre and GD is perpendicular to BC.

Therefore, In right triangle ADB, we have

AB² = AD² + DB²

⇒ 9² = AD² + DB²

$\Rightarrow\text{AD}=\sqrt{81-\frac{81}{4}}=\frac{9\sqrt3}{2}\text{cm}$

$\therefore\text{Radius}=\text{AG}=\frac{2}{3}\text{AD}$

$=3\sqrt3\text{cm}.$

View full question & answer→

Question 414 Marks

A line segment AB is of length 5cm. Draw a circle of radius 4cm passing through A and B. Can you draw a circle of radius 2cm passing through A and B? Give reason in support of your answer.

Answer

Draw a line segment AB of 5cm.
Draw the perpendicular bisectors of AB.
With centre A and radius of 4cm, draw an arc which intersects the perpendicular bisector at point O. The point O will be the required centre.
Join OA.
With centre O and radius OA, draw a circle.

No, we cannot draw a circle of radius 2cm passing through A and B because when we draw an arc of radius 2cm with centre A, the arc will not intersect the perpendicular bisector and we will not find the centre.

View full question & answer→

Question 424 Marks

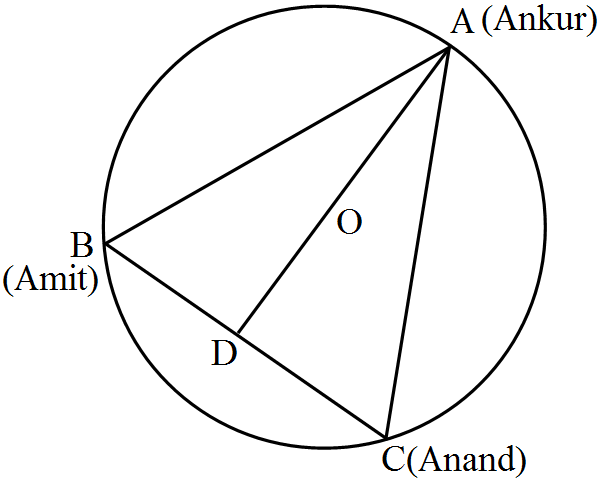

A circular park of radius 40m is situated in a colony. Three boys Ankur, Amit and Anand are sitting at equal distance on its boundary each having a toy telephone in his hands to talk to each other. Find the length of the string of each phone.

Answer

Given that AB = BC = CA

So, ABC is an equilateral triangle

OA (radius) = 40m

Medians of equilateral triangle pass through the circum centre (O) of the equilateral triangle ABC.

We also know that median intersect each other at the ratio 2 : 1

As AD is the median of equilateral triangle ABC, we can write:

$\frac{\text{OA}}{\text{OD}}=\frac{2}{1}$

$\Rightarrow\frac{\text{4OM}}{\text{OD}}=\frac{2}{1}$

$\Rightarrow\text{OD}=20\text{m}$

Therefore, AD = OA + OD = (40 + 20)m

= 60m

In $\triangle\text{ADC}$

By using Pythagoras theorem

$\text{AC}^2 = \text{AD}^2 + \text{DC}^2$

$\text{AC}^2=60^2+\big(\text{AC}^2\big)^2$

$\text{AC}^2=3600+\frac{\text{AC}^2}{4}$

$\Rightarrow\frac{3}{4}\text{AC}^2=3600$

$\Rightarrow\text{AC}^2=4800$

$\Rightarrow\text{AC}=40\sqrt{3}\text{m}$

So, length of string of each phone will be $40\sqrt{3}\text{m}.$

View full question & answer→

Question 434 Marks

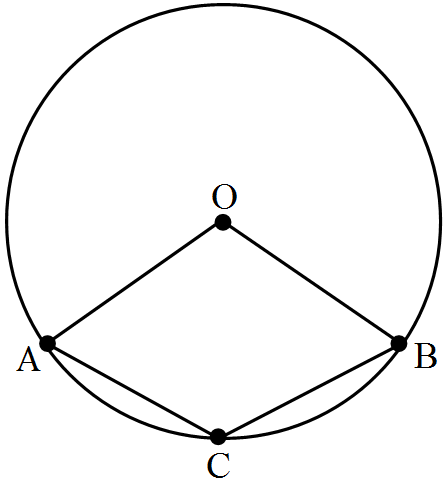

A chord of a circle is equal to the radius of the circle. Find the angle subtended by the chord at a point on the minor arc and also at a point on the major arc.

Answer

We have,

Radius OA = Chord AB

⇒ OA = OB = AB

Then triangle OAB is an equilateral triangle.

$\therefore\angle\text{AOB}=60^\circ$ [one angle of equilateral triangle]

By degree measure theorem

$\angle\text{AOB}=2\angle\text{APB}$

$\Rightarrow60^\circ=2\angle\text{APB}$

$\Rightarrow\angle\text{APB}=\frac{60^\circ}{2}=30^\circ$

Now, $\angle\text{APB}+\angle\text{AQB}=180^\circ$ [opposite angles of cyclic quadrilateral]

$\Rightarrow300+\angle\text{AQB}=180^\circ$

$\Rightarrow\angle\text{AQB}=180^\circ-30^\circ=150^\circ$

Therefore, Angle by chord AB at minor arc = 150^º

Angle by chord AB at major arc = 30^º

View full question & answer→

Question 444 Marks

ABCD is a cyclic trapezium with AD || BC. If $\angle\text{B}=70^\circ,$determine other three angles of the trapezium.

Answer

We have
ABCD is a cyclic trapezium with AD || BC and $\angle\text{B}=70^\circ.$
Since, ABCD is a cyclic quadrilateral
Then, $\angle\text{B}+\angle\text{D}=180^\circ$
$\Rightarrow70^\circ+\angle\text{D}=180^\circ$
$\Rightarrow\angle\text{D}=180^\circ-70^\circ=110^\circ$
Since, AD || BC
Then, $\angle\text{A}+\angle\text{B}=180^\circ$ [Co-interior angles]
$\Rightarrow\angle\text{A}+70^\circ=180^\circ$
$\Rightarrow\angle\text{A}=180^\circ-70^\circ=110^\circ$
Since, ABCD is a cyclic quadrilateral
Then, $\angle\text{A}+\angle\text{C}=180^\circ$
$\Rightarrow110^\circ+\angle\text{C}=180^\circ$

View full question & answer→

Question 454 Marks

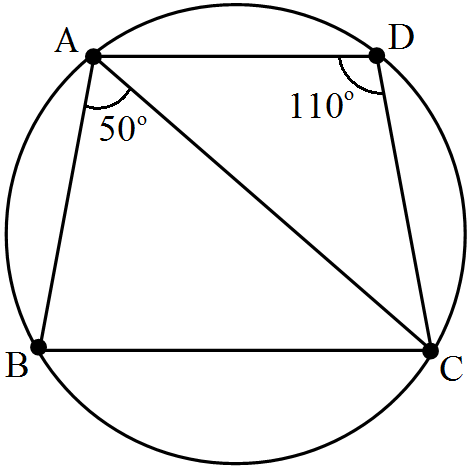

ABCD is a cyclic qudrilateral in which:
$\text{BC}\parallel\text{AD},\ \angle\text{ADC}=110^\circ$ and $\angle\text{BAC}=50^\circ.$ Find $\angle\text{DAC}.$

Answer

Since, ABCD is a cyclic quadrilateral.
Then, $\angle\text{ABC}+\angle\text{ADC}=180^\circ$
$\Rightarrow\angle\text{ABC}+110^\circ=180^\circ$
$\Rightarrow\angle\text{ABC}=180^\circ-110^\circ=70^\circ$
Since, AD || BC
Then, $\angle\text{DAB}+\angle\text{ABC}=180^\circ$ [Co-interior angles]
$\Rightarrow\angle\text{DAC}+50^\circ+70^\circ=180^\circ$
$\Rightarrow\angle\text{DAC}=180^\circ-50^\circ-70^\circ=60^\circ$

View full question & answer→

Question 464 Marks

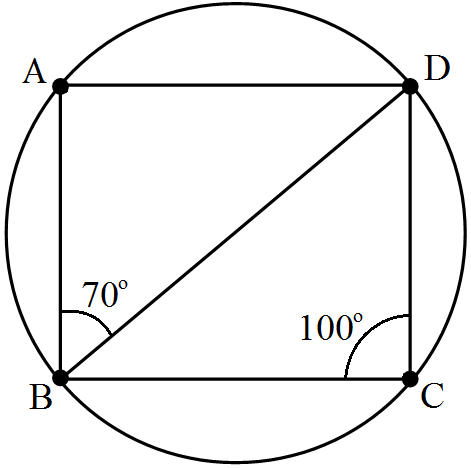

ABCD is a cyclic qudrilateral in which:
$\angle\text{BCD}=100^\circ$ and $\angle\text{ABD}=70^\circ$ find $\angle\text{ADB}.$

Answer

Since, ABCD is a cyclic quadrilateral.
Then, $\angle\text{BAD}+\angle\text{BCD}=180^\circ$
$\Rightarrow\angle\text{BAD}+100^\circ=180^\circ$
$\Rightarrow\angle\text{BAD}=180^\circ-100^\circ=80^\circ$
In by angle sum property
$\angle\text{ABD}+\angle\text{ADB}+\angle\text{BAD}=180^\circ$
$\Rightarrow70^\circ+\angle\text{ADB}+80^\circ=180^\circ$
$\Rightarrow\angle\text{ADB}=180^\circ-70^\circ-80^\circ=30^\circ$

View full question & answer→

Question 474 Marks

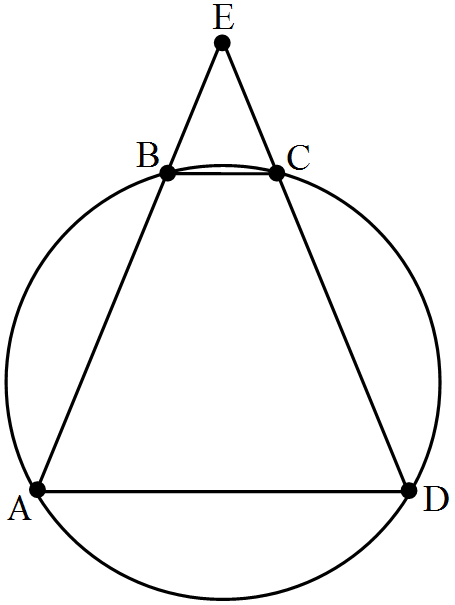

ABCD ia a cyclic quadrilateral in which BA and CD when produced meet in E and EA = ED. Prove that:

AD || BC.
EB = EC.

Answer

Given ABCD is a cyclic quadrilateral in which EA = ED

To prove:

AD || BC.
EB = EC.

Proof:

Since EA = ED

Then, $\angle\text{EAD}=\angle\text{EDA}\dots(1)$ [Oppo. angles to equal sides]

Since, ABCD is a cyclic quadrilateral

Then, $\angle\text{ABC}+\angle\text{ADC}=180^\circ$

But $\angle\text{ABC}+\angle\text{EBC}=180^\circ$ [Linear pair of angles]

Then, $\angle\text{ADC}=\angle\text{EBC}\dots(2)$

Compare equations (1) and (2)

$\angle\text{EAD}=\angle\text{EBC}\dots(3)$

Since, corresponding angles are equal

Then, BC || AD

From equation (3)

$\angle\text{EAD}=\angle\text{EBC}\dots(3)$

Similarly $\angle\text{EDA}=\angle\text{ECB}\dots(4)$

Compare equations (1)(3) and (4)

$\angle\text{EBC}=\angle\text{ECB}$

$\Rightarrow \text{EB}=\text{EC}$ [Opposite angles to equal sides]

View full question & answer→

Generate Paper Free All Circles [NEW] topics
