Physics MCQ

Heat · ICSE STD 10 (ICSE - English Medium). 6 questions.

Questions

MCQ

🎯

Test yourself on this topic

6 questions · timed · auto-graded

MCQ 11 Mark
A solid is heated at a constant rate in an insulated container till half of it vaporizes. Which of the following graphs show the temperature changes during this time?
  • A
  • B
  • C
  • ✓
Answer
Correct option: D.

The first time when temperature is constant represents change of state from solid to liquid and the second time temperature is constant represents change of state from liquid to vapour.
View full question & answer→
MCQ 21 Mark
A solid is heated at a constant rate in an insulated container till half of it
vapourises. Which graph in the following fig shows the temperature changes during this time?
  • A
  • B
  • C
  • ✓
Answer
Correct option: D.

The first time when temperature is constant represents change of state from solid to liquid and the second time temperature is constant represents change of state from liquid to vapour.
View full question & answer→
MCQ 31 Mark
What change in heat energy occurs when lead at its melting point
solidifies without change in the temperature?
  • ✓
    Latent heat is emitted
  • B
    Latent heat is absorbed
  • C
    Specific heat capacity is emitted
  • D
    Specific heat capacity is absorted
Answer
Correct option: A.
Latent heat is emitted
Latent heat is emitted.
View full question & answer→
MCQ 41 Mark

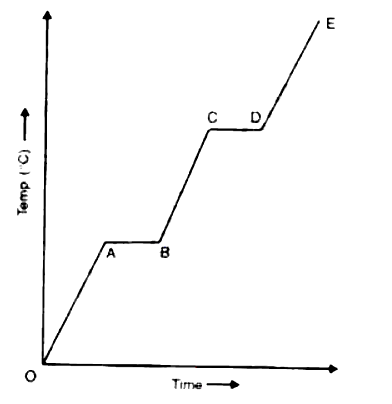

A substance is heated at a constant rate from a low temperature to a high
temperature. A graph of temperature against time is drawn and is shown in
fig. . Which part of parts of the graph corresponds to the substance existing
in two states?
  • A
    All of it
  • B
    OA , BC , and DE
  • ✓
    AB and CD
  • D
    DE
Answer
Correct option: C.
AB and CD
AB and CD
View full question & answer→
MCQ 51 Mark
2000 J of heat energy is required to raise the temperature of 4 kg of a metal by 3°c. Which expression gives the specific heat capacity of the metal?
  • ✓
    $2000 /(4 \times 3) \mathrm{J} / \mathrm{kg}^{\circ} \mathrm{C}$
  • B
    $\frac{2000}{4} \times 4 \mathrm{jjkg}^{\circ} \mathrm{C}$
  • C
    $2000 \times \frac{4}{3} \mathrm{~J} / \mathrm{kg}^{\circ} \mathrm{C}$
  • D
    $4 \times \frac{3}{2000} \mathrm{~J} / \mathrm{kg}^{\circ} \mathrm{C}$
Answer
Correct option: A.
$2000 /(4 \times 3) \mathrm{J} / \mathrm{kg}^{\circ} \mathrm{C}$
$2000 /(4 \times 3) \mathrm{J} / \mathrm{kg}^{\circ} \mathrm{C}$
View full question & answer→
MCQ 61 Mark
Make the correct choice in each of the following:
(a) In what unit is the specific heat capacity expressed?
  • ✓
    $\mathrm{J} / \mathrm{kg}^{\circ} \mathrm{C}$
  • B
    $\mathrm{J} / \mathrm{kg}$
  • C
    $\mathrm{kg} / J^{\circ} \mathrm{C}$
  • D
    $\mathrm{kg} / \mathrm{J}$
Answer
Correct option: A.
$\mathrm{J} / \mathrm{kg}^{\circ} \mathrm{C}$
$\mathrm{J} / \mathrm{kg}^{\circ} \mathrm{C}$
View full question & answer→
