Question 15 Marks
Draw a set-up for showing that oxygen gas is given out during photosynthesis. How will you test that the gas evolved is oxygen ?
Answer

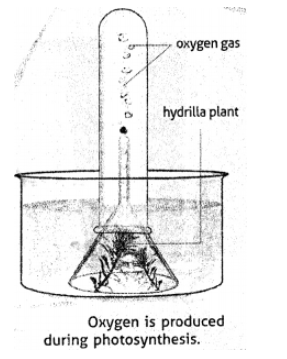

View full question & answer→Aim : To show that green plants produce oxygen during photosynthesis.
Materials required : A trough, a Hydrilla plant, a glass funnel, a test tube, water, wooden splinter.
Procedure:
1. Fill a trough to about three-fourths with water. Place a few cuttings of a Hydrilla plant in it and cover diem with a funnel.
2. Fill a test tube with water, cover its mouth with your thumb and place it over the stem of the,funnel.
3. Place the whole set-up in sunlight for a few hours.
Observation :
1. Bubbles of a gas are seen collecting in the test tube by the displacement of water. When the test tube is filled with the gas, remove it covering its mouth with the thumb.
2. Bring a glowing wooden splinter near the mouth of the test tube filled with the gas. The splinter starts burning with a bright flame.

Conclusion : This shows that the gas in the test tube is oxygen. Thus, oxygen is produced during photosynthesis by green plants.
Materials required : A trough, a Hydrilla plant, a glass funnel, a test tube, water, wooden splinter.
Procedure:
1. Fill a trough to about three-fourths with water. Place a few cuttings of a Hydrilla plant in it and cover diem with a funnel.
2. Fill a test tube with water, cover its mouth with your thumb and place it over the stem of the,funnel.
3. Place the whole set-up in sunlight for a few hours.
Observation :
1. Bubbles of a gas are seen collecting in the test tube by the displacement of water. When the test tube is filled with the gas, remove it covering its mouth with the thumb.
2. Bring a glowing wooden splinter near the mouth of the test tube filled with the gas. The splinter starts burning with a bright flame.

Conclusion : This shows that the gas in the test tube is oxygen. Thus, oxygen is produced during photosynthesis by green plants.
