PHYSICS [5 Mark Question Answer]

The magnetic poles always exist in pairs. It is not possible to separate the two poles of a magnet.
If a bar magnet is broken at the middle in two parts each part is found to be a magnet. Each part has the property to attract the small iron pieces. Each part rests in the North-South direction when suspended such as to swing freely. This shows that the new poles are formed at the broken ends.
If these pieces are broken again and again, each part will still found to be a complete magnet. Each part contains both the poles (N-pole and S-pole). Thus, the two poles of a magnet exist simultaneously.

Like poles repel and unlike poles attract.
Two like poles (both North poles or both South poles) repel each other. Two unlike poles (one North pole and the other South pole) attract each other. This can be demonstrated by the following simple experiment.

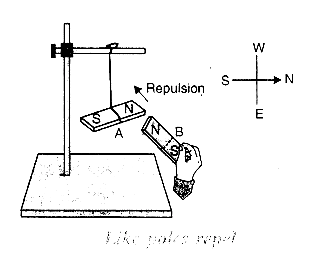

Take two bar magnets A and B. Suspend one magnet A with a silk thread from a support so that it is free to swing. The magnet A will come to rest in the North-South direction. The North pole of the magnet A is in the North direction and its South pole is in the South direction. Now holding the other magnet B in your hand if you bring its North pole near the North pole of the suspended magnet A as shown in figure you will observe that the two poles repel each other. Care is taken that the two magnets do not touch each other.

Now if you bring the South pole of the magnet B near the north pole of the suspended magnet A as shown in figure without touching it, you will observe that the two poles attract each other.

The above experiment shows that the like poles repels each other while the unlike poles attract each other.

The earth is a huge magnet in itself with its North and South poles. The North and South of the place can easily be detected with the help of a bar magnet. A freely suspended bar magnet always rest in the geographic N-S direction. Since the South pole of the earth’s magnet is closer to the geographic North, the North pole of the suspended magnet will always rest in the geographic North, and the South pole of the freely suspended magnet will point towards geographic South.

Take first bar and suspend it in a stand with the help of a thread. So that it is free to rotate in horizontal plane. Note the direction in which it sets itself. If the direction is North and South it may be magnet. Again rotate it, if this time again it sets itself in north and south direction, it is a magnet, otherwise it is iron.
Now repeat above experiment with second bar and in the same way find it if it sets always in north and south direction then it will be a magnet.

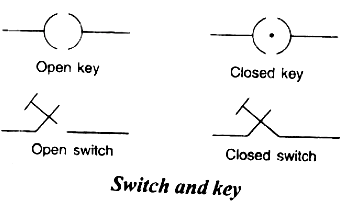

Switch – A switch or key is used to put the circuit on and off. fig. shows the symbol of a switch or key when it is open (to put the circuit off and when it is closed (to put the circuit on)

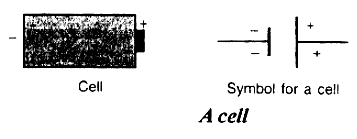

Cell – A cell or a group of cells is generally used as a source of electricity. A positive (+) and a negative (-). It is represented by the two vertical lines of unequal lengths. The long vertical line represents the positive terminal and the short line represents the negative terminal as shown in fig

Take two torch bulbs A and B. Connect them to a cell through a switch as shown in fig. The bulbs are said to be in series. Close the switch (i.e., the circuit it completed), you will see that both the bulbs glow.

Circuit is complete, both bulbs glow
Now take out the connection of the bulb B as shown in fig. Now close the switch, you will observe that bulb A does not glow, because the circuit is now incomplete.

Circuit is incomplete, bulb A does not glow
Now replace bulb B by a fused bulb fig. and close the switch. Again you will see that bulb A does not glow. This is because the circuit being in series is still incomplete.

Incomplete circuit, bulb A does not glow
Thus, when appliances are in series, they are dependent on each other.

Aim— To test whether a given rod is a magnet or not.
Apparatus —

1. rod to be tested
2. a bar magnet
3. a stand
4. a thread

Procedure —

1. Suspend the rod to be tested with a thread on the stand.
2. Bring the bar magnet near the rod with its north pole towards the rod’s end.
3. Observe.

Inference — In every case, the magnet comes to rest in a north- south direction which shows its directive property.
Observation and Inference —
— If the rod is attracted towards the bar magnet, the rod may be magnet or not.
— But if the rod remains in the same direction of rest as in the start of the experiment, it show it is not a magnet.

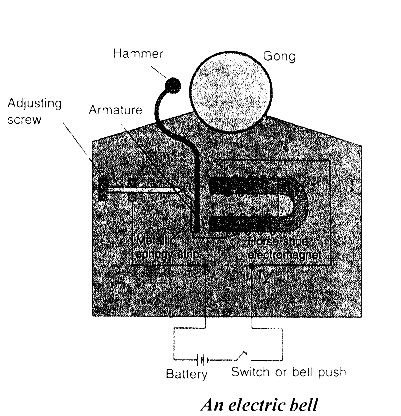

Working of the bell— Principle of working of electromagnetism When the switch is pushed on, the circuit gets completed and current stalls flowing through the U-shaped electromagnet which creates magnetic field in the core. This attracts the iron armature. Now when the armature moves towards the electro-magnet, the hammer strikes the gong and the bell rings. But as the armature
moves towards the electromagnet, the contact with the adjustment screw breaks which breaks the closed circuit and stops the current. Now when there is no current there is no electromagnetism and the armature returns to the original position. This making and breaking of the circuit of the electromagnet continues as long as the button remains pressed.

Usually, the electromagnets are made in two shapes :
(1) bar or I shaped magnet and (2) horse shoe or U shaped magnet.

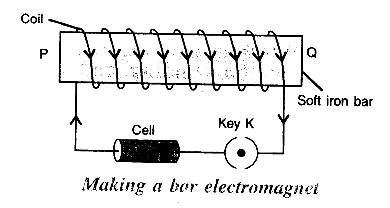

1. To make a fiar or I shaped electromagnet: Take a soft iron bar PQ and wind a thin insulated copper wire around the bar. Connect a cell or a battery B, and a key K in series between the ends of the coil. The circuit diagram is shown in figure.

When key K is closed, current passes through the winding of the coil and the bar becomes a magnet. As the key K is opened, the current stops flowing in the coil and the bar loses its magnetism. Thus, the bar behaves like an electromagnet.
2. To make a horse shoe or U shaped electromagnet: Take a U shaped soft iron piece. Wind a thin insulated copper wire on its arms such that the winding in the two arms is in opposite direction. In figure winding in the arm A starts from the front and is in clockwise direction (when seen from the bottom).
On reaching the upper end of the arm A, winding starts from the back at the top of the arm B and is in anticlockwise direction. Connect a battery B and a key K between the two ends of the wire

Properties of a bar magnet

1. Attractive property : A magnet attracts small pieces of iron, cobalt or nickel.
2. Directive property : A magnet when suspended freely, always point towards North and South direction.
3. Like poles i.e. North and North or South and South poles repel each other.
4. Unlike poles i.e. North and South attract each other.
5. Poles always exist in pairs, i.e. poles of a magnet cannot be separated.

Column  A	Column  B
(a). Human body	(3). conductor
(b). Silk thread	(5). insulator
(c). Charge in motion	(2). current
(d). soft iron	(4). electromagnet
(e) . Electromagnet	(1). electric bell
