Coordinate System & Linear Graphs MATHS - Coordinate System & Linear Graphs

On axis does the given point lie : (0, 6)

On axis does the given point lie : (7, 0)

On axis does the given point lie : (0, -2)

In quadrant does the given point lie : (-4, -6)

In quadrant does the given point lie : (-5, 1)

Plot the points A(5, 1), B(- 2, 2) and C(4, 2) Name the figure ABC.

Plot the points A(4, 1), B(- 2, 1), C(- 3,- 2) and D(3, - 2) Name the figure ABCD.

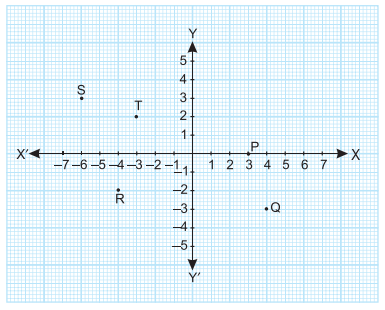

Write down the coordinates of each of the following points P, Q, R, S and T shown on the graph paper.

Three of the vertices of a parallelogram have coordinates (5, -2), (6, 2) and (0, 2). Plot these points on a graph paper and find the coordinates of the fourth vertex.

Draw the distance (d) vs time (t) graph for an object moving at a speed of 5 metres per second. Read the graph carefully and answer the following questions :
(i) Find the distance covered in 3 seconds.
(ii) Find the distance covered in 5 seconds.
(iii) Find the time in which the body covered 30 metres.

Draw the graph of the function y = 2x. Form the graph, find the value of y, when :
(i) x = 1.5
(ii) x = 4

Draw the graph of perimeter (P) of a square vs the length of its side (a). From the graph, find the value of P, when :
(i) a = 2.5
(ii) a = 5

Calculate the simple interest on a principal sum of ₹5000 lent out at a rate of 5% p.a. for a period of 1 year, 2 years, 3 years and 4 years. Plot the corresponding values on a graph paper and obtain a graph for the same

Calculate the semi-perimeter (s) of equilateral triangles with sides measuring 2 cm, 3 cm, 4 cm and 5 cm respectively. Draw a graph depicting the semi-perimeter as a function of the length of the side of the equilateral triangle.

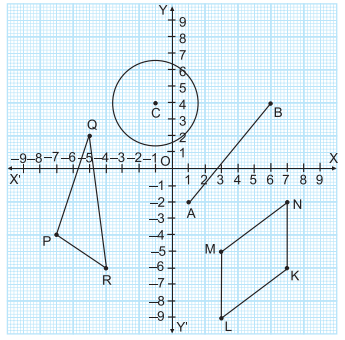

In the following figure, find the coordinates of the points that represent :
(i) the vertices of the end points of the line segment AB.
(ii) the centre C of the circle.
(iii) the vertices of the triangle PQR
(iv) the vertices of the parallelogram KLMN.

The equation of a line parallel to x-axis at a distance of 9 units and above x-axis, is

The equation of a line parallel to y-axis and at a distance of 3 units to the left of y-axis, is

The equation of a line parallel to y-axis and at a distance of 4 units to the right of y-axis, is

In which quadrant does (-4, 3) lie?

The co-ordinates of a point below x-axis at a distance of 4 units from x-axis but lying on y-axis is
