4 Marks Questions

Question 14 Marks

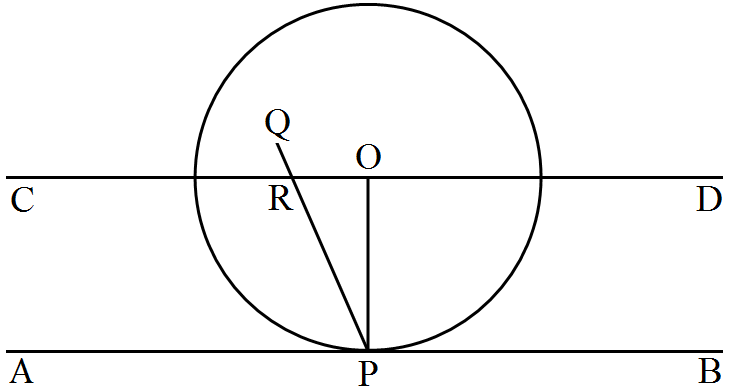

Prove that the perpendicular at the point of contact of the tangent to a circle passes through the centre.

Answer

Let AB be the tangent to the circle at point P with centre O.
To prove: PQ passes through the point O.
Construction: Join OP.
Through O, draw a straight line CD parallel to the tangent AB.
Proof: Suppose that PQ doesn't passes through point O. PQ intersect CD at R and also intersect AB at P.
AS, CD || AB, PQ is the line of intersection,
$\angle\text{ORP} = \angle\text{RPA} $ (Alternate interior angles)
But also,
$\angle\text{RPA}=90^\circ(\text{OP}\perp\text{AB})$
$\Rightarrow\angle\text{ORP}=90^\circ$
$\angle\text{ROP}+\angle\text{OPA}=180^\circ$ (Co interior angles)
$\Rightarrow\angle\text{ROP}+90^\circ=180^\circ$
$\Rightarrow\angle\text{ROP}=90^\circ$
Thus, the $ \triangle\text{ORP}$ has 2 right angles i.e. $ \angle\text{ORP} $ and $ \angle\text{ROP} $ which is not possible.
Hence, our supposition is wrong.
$\therefore$ PQ passes through the point O.

View full question & answer→

Question 24 Marks

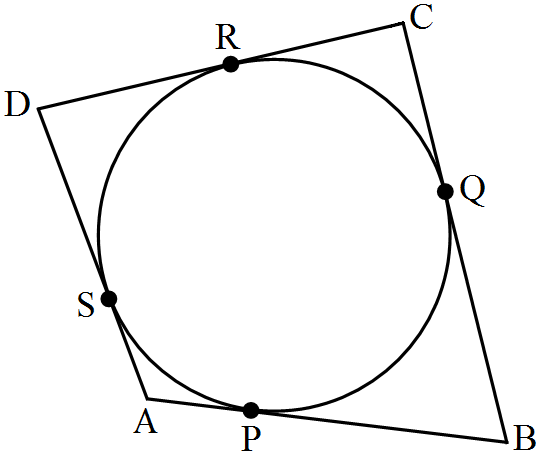

A quadrilateral is drawn to circumscribe a circle. Prove that the sume of opposite sides are equal.

Answer

Given: ABCD is a quadrilateral in which a circle is inscribed.
To prove: AB + CD = AD + BC
proof:
We know that the langths of tangent drawn fro an external point to circle are equal.
$\therefore$ AP = AS ....(i)
BP = BQ ....(ii)
CR = CQ ....(iii)
DR = DQ ....(iv)
⇒ AB + CD = (AP + BP) + (CR + DR)
= (AS + BQ) + (CQ + DS) ....(from (i), (ii), (iii), (iv))
= (AS + DS) + (CQ + BQ)
= AD + BC
Hence proved.

View full question & answer→

Question 34 Marks

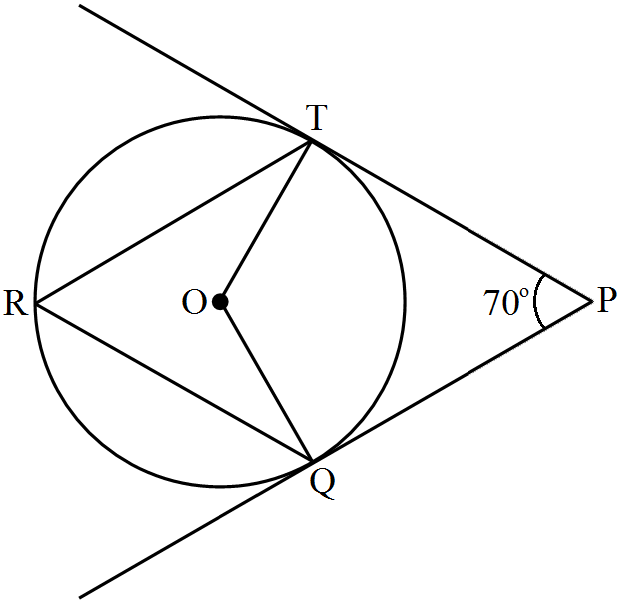

In the given figure, O is the centre of a circle PT and PQ are tangents to the circle from an external point P. If $\text{TPQ} = 70^\circ$ then$ \angle\text{TRQ} .$

Answer

Construction: Join OQ and OT

We know that the radius and tangent are perperpendular at their point of contact $\therefore\angle\text{OTP}=\angle\text{OQP}=90^\circ$ Now, In quadrilateral OQPT $\angle\text{QOT}+\angle\text{OTP}+\angle\text{OQP}+\angle\text{TPQ}=360^\circ$[Angle sum property of a quadrilateral] $\Rightarrow \angle\text{QOT}+90^\circ+90^\circ+70^\circ=360^\circ$ $\Rightarrow 250^\circ+\angle\text{QOT}=360^\circ$ $\Rightarrow \angle\text{QOT}=110^\circ$ We know that the angle subtended by an arc at the centre is double the angle subtended by the arc at any point on the remaining part of the circle. $\therefore\text{TRQ}=\frac{1}{2}(\angle\text{QOT})=55^\circ$

View full question & answer→

Question 44 Marks

From an external point P, tangents PA and PB are drawn to a circle with centre O. If CD is the tangent to the circle at a point E and PA = 14cm, find the perimeter of $\triangle\text{PCD}.$

Answer

Given, PA and PB are the tangents to a circle with centre O and CD is a tangent at E and PA = 14cm.
Tangent drawn from an external point are equal.
$\therefore\text{PA}=\text{PB},\text{CA}=\text{CE}$ and $\text{DB}=\text{DE}$
Perimeter of $\triangle\text{PCD}=\text{PC}+\text{CD}+\text{PD}$
$=(\text{PA}-\text{CA})+(\text{CE}+\text{DE})+(\text{PB}-\text{DB})$
$=(\text{PA}-\text{CE})+(\text{CE}+\text{DE})+(\text{PB}-\text{DE})$
$=(\text{PA}+\text{PB})$
$=2\text{PA } (\therefore\text{PA}=\text{PB})$
$=(2\times14)\text{cm}$
$=28\text{cm}$
$\therefore\text{Perimeter of }\triangle\text{ PCD}=28\text{cm}.$

View full question & answer→

Question 54 Marks

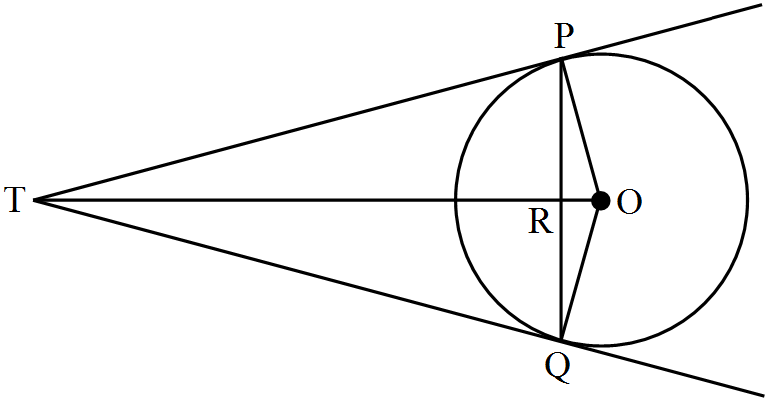

$PQ$ is a chord of length $16cm$ of a circle of radius 10cm. The tangent at $ P$ and $Q$ intersect at point T as shown in the figure.
Finf the length of $TP.$

Answer

Construction: Join $OQ.$
In $\triangle\text{TPO}$ and $\triangle\text{TQO},$
$TP = TQ ....($tangent from an external point to the circle are equal$)$
$OT = OT ....($Common side$)$
$OP = OQ ....($radii of the same circle$)$
$\Rightarrow\triangle\text{TPO}\cong\triangle\text{TQO} ....(SSS$ congruence criterion$)$
$\Rightarrow\angle\text{PTO}=\angle\text{QTR} ....(cpct) .....(i)$
In $\triangle\text{TRP}$ and $\triangle\text{TRQ},$
$TP = TQ ....($tangent from an external point to the circle are equal$)$
$TR = TR ....($Common side$)$
$\angle\text{PTR}=\angle\text{QTR}\dots\text{(from (i)})$
$\Rightarrow\triangle\text{TRP}\cong\triangle\text{TRQ} ....(SAS$ congruence criterion$)$
$\Rightarrow\angle\text{TRP}=\angle\text{TRQ}$
Since PRQ is a straight line segment,
$\angle\text{TRP}=\angle\text{TRQ}=180^\circ$
$\Rightarrow\angle\text{TRP}=\angle\text{TRQ}=90^\circ$
So, $\text{OR}\perp\text{PQ}$
We know that the perpendicular from the centre to the chord of a circle bisects the chord.
So, $PR = 8cm$
In $\triangle\text{ORP},$
$OR^2 = OP^2 - RP^2 ...($By Pythagoras theorem$)$
$\Rightarrow OR^2= 10^2 - 8^2$
$\Rightarrow OR^2 = 36$
$\Rightarrow OR = 6cm$
In right $\triangle\text{PRT},$
$PT^2= TR^2 + PR^2$
$\Rightarrow PT^2 = TR^2 + 8^2 ....(i)$
In right $\triangle\text{POT},$
$\Rightarrow OT^2 = PT^2 + OP^2$
$\Rightarrow (TR+ 6)^2 = PT^2 + OP^2$
$\Rightarrow TR^2 + 12TR + 36 = PT^2 + 10^2 ....(ii)$
Solving (i) and (ii), we get
$TP = 10.7cm$

View full question & answer→

Question 64 Marks

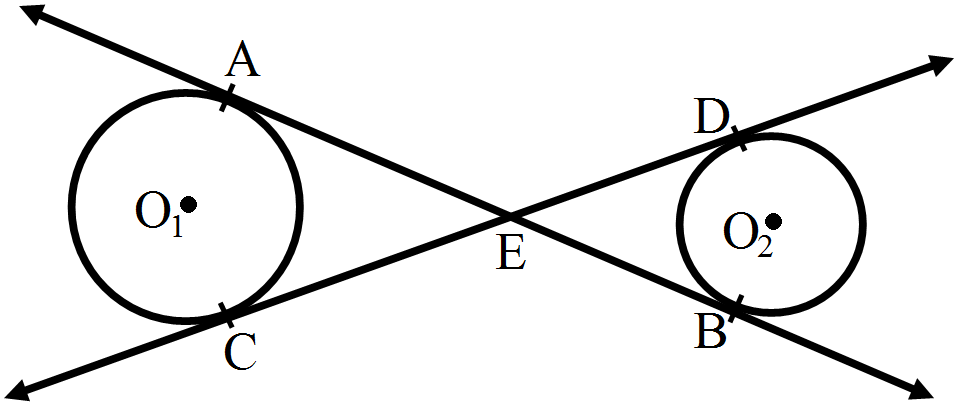

In the given figure, common tangents $AB$ and $CD$ to the two circles with centres $O_1$ and $O_2$ intersect at $E$. Prove that $AB = CD.$
$$

Answer

We know that tangent segments to a circle from the same external point are congruent.
So, we have
$EA = EC$ for the circle having centre $O_1$
and
$ED = EB$ for the circle having centre $O_1$
Now, Adding ED on both sides in $EA = EC,$ we get
$EA + ED = EC + ED$
$\Rightarrow EA + EB = EC + ED$
$\Rightarrow AB = CD$

View full question & answer→

Question 74 Marks

In the given figure, O is the centre of the circle. PA and PB are tangents. Show that AOBP is a cyclic quadrilateral.

Answer

We know that the radius and tangent are perpendicular at their point of contact
$\therefore\angle\text{OBP}=\angle\text{OAP}=90^\circ$
Now, In quadrilateral AOBP
$\angle\text{APB}+\angle\text{AOB}+\angle\text{OBP}+\angle\text{OAP}=360^\circ$[Angle sum property of a quadrilateral]
$\Rightarrow\angle\text{APB}+\angle\text{AOB}+90^\circ+90^\circ=360^\circ$
$\Rightarrow\angle\text{APB}+\angle\text{AOB}=180^\circ$
Also, $\angle\text{OBP}+\angle\text{OAP}=180^\circ$
Since, the sum of the opposite angles of the quadrilateral is 80º
Hence, AOBP is a cyclic quadrilateral.

View full question & answer→

Question 84 Marks

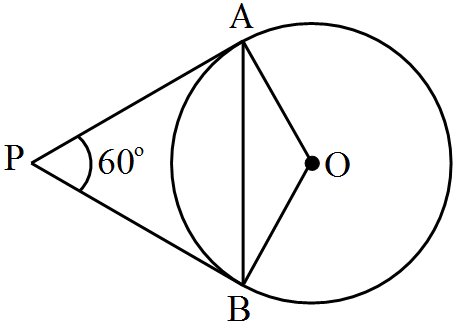

In the given figure, PA and PB are two tangents to the circle with centre O. If $\angle\text{APB}=60^\circ$ then find the measure of $\angle\text{OAB}.$

Answer

We know that the radius and tangent are perperpendular at their point of contact.
$\therefore\angle\text{OBP}=\angle\text{OAP}=90^\circ$
Now, In quadrilateral AOBP
$\angle\text{AOB}+\angle\text{OBP}+\angle\text{APB}+\angle\text{OAP}=360^\circ$ [Angle sum property of a quadrilateral]
$\Rightarrow\angle\text{AOB}=90^\circ+60^\circ+90^\circ=360^\circ$
$\Rightarrow240^\circ+\angle\text{AOB}=360^\circ$
$\Rightarrow\angle\text{AOB}=120^\circ$
Now, In isoceles triangle AOB
$\angle\text{AOB}+\angle\text{OAB}+\angle\text{OBA}=180^\circ$[Angle sum property of a triangle]
$\Rightarrow120^\circ+2\angle\text{OAB}=180^\circ$ $\big[\therefore\angle\text{OAB}=\angle\text{OBA}\big]$
$\Rightarrow\angle\text{OAB}=30^\circ$

View full question & answer→

Question 94 Marks

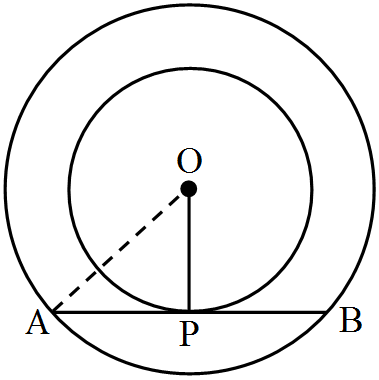

In two concentric circles, a chord of length 8cm of the larger circle touches the smaller circle. If the radius of the larger circle is $5\ cm$ then Find the radius of the smaller circle.

Answer

We know that the radius and tangent are perperpendular at their point of contact
Since, the perpendicular drawn from the centre bisect the chord.
$\therefore\text{AP}=\text{PB}=\frac{\text{AB}}{2}=4\text{cm}$
In right triangle $AOP$
$AO^2 = OP^2 + PA^2$
$\Rightarrow 5^2 = OP^2 + 4^2$
$\Rightarrow OP^2 = 9$
$\Rightarrow OP = 3\ cm$
Hence, the radius of the smaller circle is $3\ cm.$

View full question & answer→

Question 104 Marks

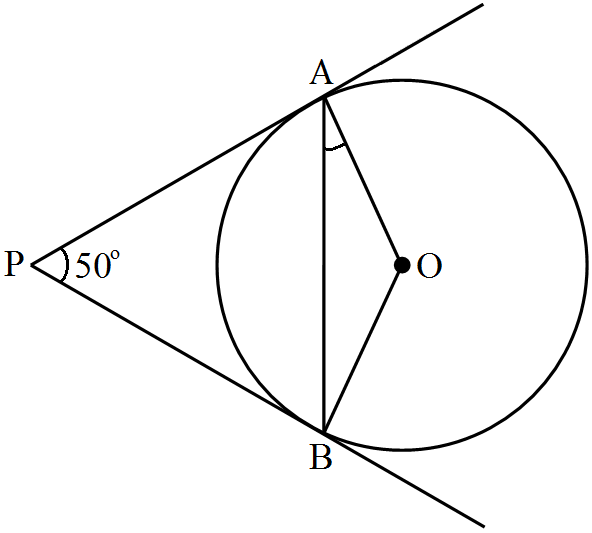

In the given figure, PA and PB are two tangents to the circle with centre O. If $ \text{APB} = 50^\circ$ then what is the measure of $\angle\text{OAB}.$

Answer

Construction: Join OB

We know that the radius and tangent are perperpendular at their point of contact
$\therefore\angle\text{OBP}=\angle\text{OAP}=90^\circ$
Now, In quadrilateral AOBP
$\angle\text{AOB}+\angle\text{OBP}+\angle\text{APB}+\angle\text{OAP}=360^\circ$[Angle sum property of a quadrilateral]
$\Rightarrow \angle\text{AOB}+90^\circ+50^\circ+90^\circ=360^\circ$
$\Rightarrow 230^\circ+\angle\text{BOC}=360^\circ$
$\Rightarrow \angle\text{AOB}=130^\circ$
Now, In isoceles triangle AOB
$\angle\text{AOB}+\angle\text{OAB}+\angle\text{OBA}=180^\circ$[Angle sum property of a triangle]
$\Rightarrow130^\circ+2\angle\text{OAB}=180^\circ$$[\therefore\angle\text{OAB}=\angle\text{OBA}]$
$\Rightarrow\angle\text{OAB}=25^\circ$

View full question & answer→

Question 114 Marks

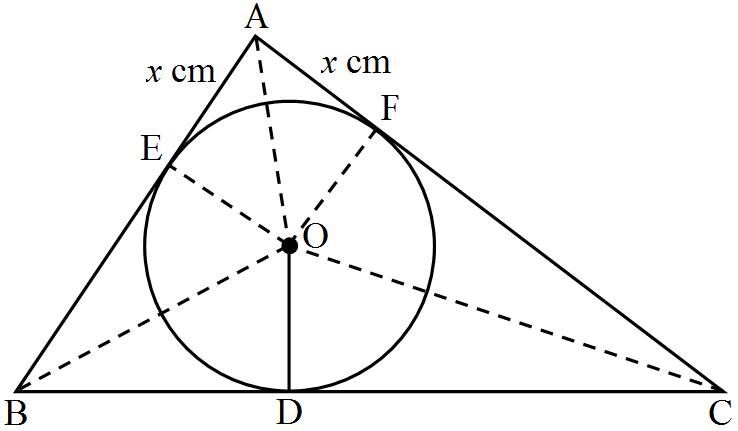

In the given figure, a triangle ABC is drawn to circumscribe a circle of radius 2cm such that the segments BD and DC into which BC is divided by the point of contact D, are of lengths 4cm and 3cm respectively. If the area of $\triangle\text{ABC} = 21\text{cm}^2$ then find the lengths of sides of AB and AC.

Answer

Construction: Join $\text{OA},\text{OB},\text{OC},\text{OE}\perp\text{AB}$ at $\text{OF}\perp\text{AC}$ at F

We know that tangent segments to a circle from the same external point are congruent.
Now, we have
AE = AF, BD = BE = 4cm and CD = CF = 3cm
Now, $\text{Area}(\triangle\text{ABC})=\text{Area}(\triangle\text{BOC})+\text{Area}(\triangle\text{AOB})+\text{Area}(\triangle\text{ABC})+\text{Area}(\triangle\text{AOC})$
$\Rightarrow21=\frac{1}{2}\times\text{BC}\times\text{OD}+\frac{1}{2}\times\text{AB}\times\text{OE}\frac{1}{2}\times\text{AC}\times\text{OF}$
$\Rightarrow42=7\times2+(4+\text{x})\times2+(3+\text{x})\times2$
$\Rightarrow21=7+4+\text{x}+3+\text{x}$
$\Rightarrow21=14+2\text{x}$
$\Rightarrow2\text{x}=7$
$\Rightarrow\text{x}=3.5\text{cm}$
$\therefore$ AB = 4 + 3.5 = 7.5 cm and AC = 3 + 3.5 = 6.5 cm

View full question & answer→

Question 124 Marks

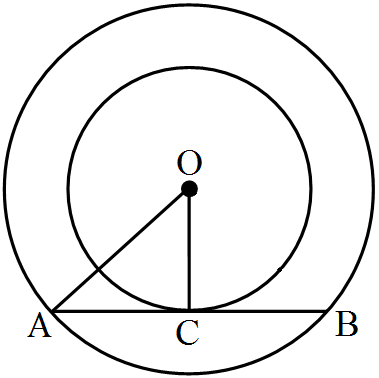

Two concentric circles are of radii 5cm and 3cm, respectively. Find the length of the chord of the larger circle (in cm) which touches the smaller circle.

Answer

Given: Two circles have the same centre O and AB is a chord of the larger circle touching the
smaller circle at C; also, OA = 5cm and OC = 3cm.
In
$\triangle\text{OAC},\text{OA}^2=\text{OC}^2-\text{AC}^2$
$\therefore\text{AC}^2=\text{OA}^2-\text{OC}^2$
$\Rightarrow\text{AC}^2=5^2-3^2$
$\Rightarrow\text{AC}^2=25-9$
$\Rightarrow\text{AC}^2=16$
$\Rightarrow\text{AC}=4\text{cm}$
$\therefore\text{AB}=2\text{AC}$(since perpendicular drawn from the centre of the circlebisects the chord)
$\therefore\text{AB}=2\times4=8\text{cm}$
The length of the chord of the larger circle is 8cm.

View full question & answer→

Question 134 Marks

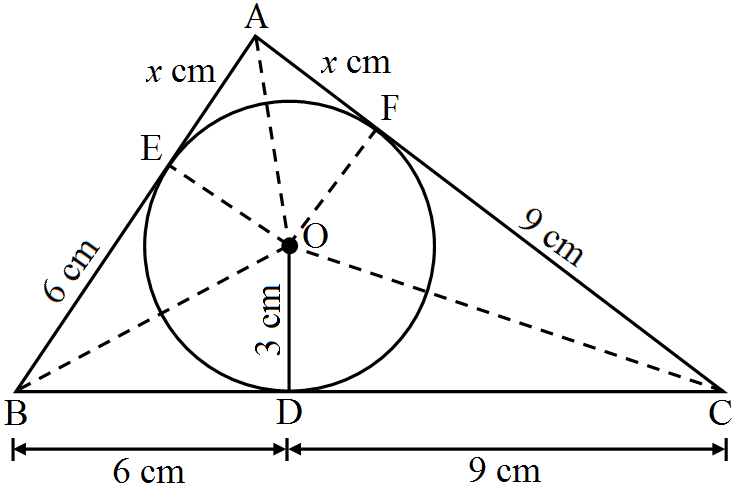

In the given figure, a triangle ABC is drawn to circumscribe a circle of radius 3cm such that the segments BD and DC into which BC is divided by the point of contact D are, of lengths 6cm and 9cm respectively. If the area of $\triangle\text{ABC}=54\text{cm}^2$then find the lengths of sides of AB and AC.

Answer

Construction: Join $\text{OA},\text{OB},\text{OC},\text{OE}\perp\text{AB}$ at E and $\text{OF}\perp\text{AC}$ at F

We know that tangent segments to a circle from the same external point are congruent.
Now, we have
AE = AF, BD = BE = 6cm and CD = CF = 9cm
Now,
$\text{Area}(\triangle\text{ABC})$
$=\text{Area}(\triangle\text{BOC})+\text{Area}(\triangle\text{AOB})+\text{Area}(\triangle\text{AOC})$
$\Rightarrow54=\frac{1}{2}\times\text{BC}\times\text{OD}+\frac{1}{2}\times\text{AB}\times\text{OE}+\frac{1}{2}\times\text{AC}\times\text{OF}$
$\Rightarrow108=15\times3+(6+\text{x})\times3+(9+\text{x})\times3$
$\Rightarrow36=15+6+\text{x}+9+\text{x}$
$\Rightarrow36=30+2\text{x}$
$\Rightarrow2\text{x}=6$
$\Rightarrow\text{x}=3\text{cm}$
$\therefore$ AB = 6 + 3 = 9cm and AC = 9 + 3 = 12cm

View full question & answer→
