Science questions in details [4 marks ]

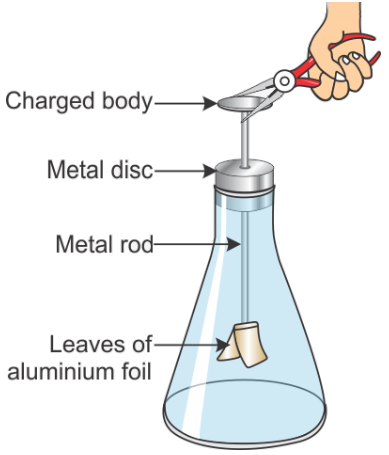

Describe with the help of a diagram an instrument which can be used to detect a charged body. It consists of a metal rod. At one end of the rod, two leaves of aluminium foil are fixed and at the other end, there is a metal disc. The leaves of aluminium foil are placed inside a conical flask and the flask is corked to isolate the leaves from air. When the metal disc is touched with a charged body, the aluminium strips move away from each other. This happens because some of the charges of the body are transferred to the strips through the metal rod. This method of charging a body is called charging by conduction. The nature of charges on both the leaves and the charged body are the similar. Hence, both the leaves of the aluminium foil will move away from each other. If the body was not charged, then the leaves of the foil would remain as they were before. They would not repel each other.

During the development of a thunderstorm, the air currents move in upward direction while the water droplets move in downward direction. These movements cause separation of charges. The positive charges collect near the upper edges of the clouds and negative charges collect near the lower edges of the clouds.

Accumulation of positive charges near the ground also takes place. When the magnitude of collected charges become large, the air cannot resist their flow and as a result, negative and positive charges meet producing streaks of bright light and sound, called lightning.

Lightning will not strike the building because charge separation cannot take place in conductors and so, all the lightning falling on the building will reside bn the surface of the building.

So, there is no need of installing any lightning conductor because all the work of lightning conductor is done by the conducting material itself.

The process of electric discharge between clouds and the earth or between different clouds causes lightning. During the development of a thunderstorm, the water droplets move downwards while the air currents move upward. Due to these strong movements, the separation of charges takes place. The positive charges collect near the upper edges of the clouds and the negative charges collect near the lower edges. There is accumulation of positive charges near the ground as well. When the magnitude of the accumulated charges becomes very large, the air which is normally a poor conductor of electricity, is no longer able to resist their flow. Negative and positive charges meet, producing streaks of bright light and sound. We are able to see these streaks as lightening. The process is called an electric discharge.

Lightening conductor is a device which is used to protect a tall building from lightening. Lightening conductor is made up of metal which is a good conductor of electricity. The lightening conductor is made of metal rod with a sharp pointed edge on the top. They are made of conductive material such as copper and aluminium. A metallic rod which is taller than the building is installed in the walls of the building during its construction. One end of the rod is kept out in the air and the other end is buried deep in the ground. The rod provides easy route for the transfer of electric charge to the ground. Lightening conductor was discovered by Benjamin Franklin.

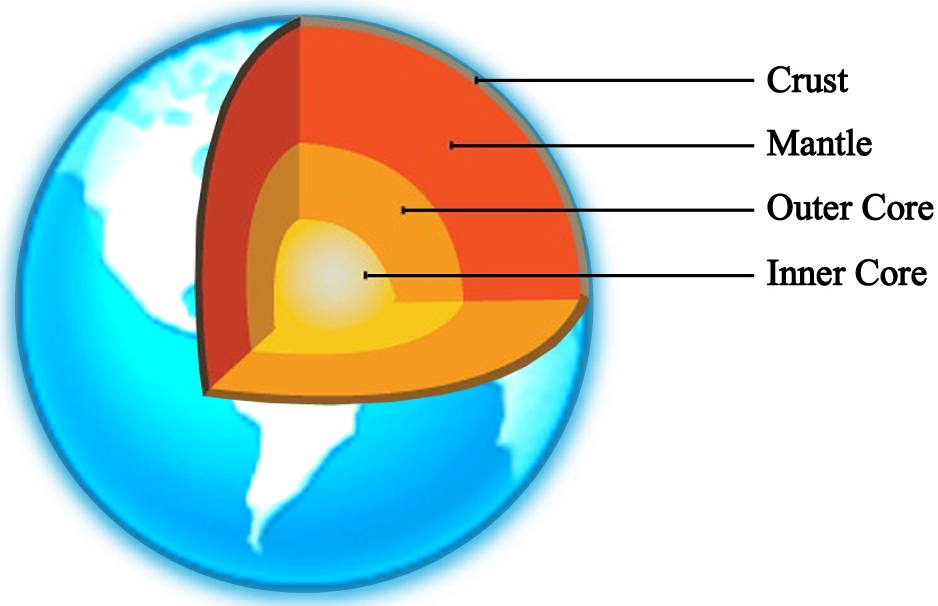

Definition: A seismograph is an instrument that measures and records seismic waves that move through the earth as the result of an earthquake.
Working: A basic seismograph includes a solid base and a heavy weight suspended from a spring over the base. A pen hangs from the weight and a rotating drum with paper sits below it on the base. The tip of the pen touches the drum. When the earth shakes from an earthquake, the drum rotates, and the weighted pen moves back and forth due to the motion of seismic waves. The pen records the movement on the drum. The paper recording of an earthquake is called a seismogram. The figure below shows the typical seismograph.

Electroscope is the device which is used to detect charge on a body. It is used for detecting, measuring and finding the nature of a charge. An electroscope consists of a large jar. A metal rod is fitted into the mouth of the jar with the help of the cork. At the lower end of the metal rod a pair of thin leaves of gold or aluminium is suspended. If the leaves of the electroscope diverge or open up when an object is touched, the body is charged. The extent of divergence or opening up of the leaves is a measure of the charge on the body. A body with higher charge will cause greater opening up of the leaves.

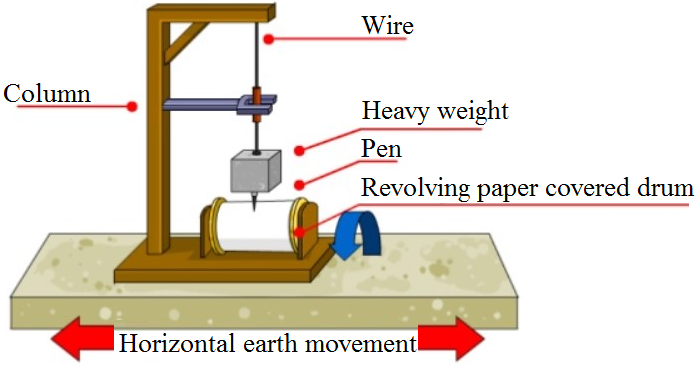

Seismograph is the instrument which is used to measure and record an earthquake. The tremors produce waves on the surface of the earth. These are called seismic waves. These waves are recorded by the seismograph. Following is the well labelled diagram of a seismograph.
