MATHS 3 Marks Question

Straight Lines · Rajasthan Board (RBSE) STD 11 Science (Rajasthan - English Medium). 9 questions.

Questions

3 Marks Question

Take a timed test

9 questions · self-marked practice — reveal the answer and mark yourself.

Question 13 Marks
A variable line passes through a fixed point P. The algebraic sum of the perpendiculars drawn from the points (2, 0), (0, 2) and (1, 1) on the line is zero. Find the coordinates of the point P.
[Hint: Let the slope of the line be m. Then the equation of the line passing through the fixed point P (x1, y1) is y - y1 = m (x - x1). Taking the algebraic sum of perpendicular distances equal to zero, we get y - 1 = m (x - 1). Thus (x1, y1) is (1, 1).]
Answer
Let the variable line throught the fixed point P is ax + by + c = 0 .....(i)
Perpendicular distance from $\text{A}(2,0)=\frac{2\text{a}+0+\text{c}}{\sqrt{\text{a}^2+\text{b}^2}}$
Perpendicular distance from $\text{A}(0,2)=\frac{0+2\text{b}+\text{c}}{\sqrt{\text{a}^2+\text{b}^2}}$
Perpendicular distance from $\text{A}(1, 1)=\frac{\text{a}+\text{b}+\text{c}}{\sqrt{\text{a}^2+\text{b}^2}}$
According to the question, we have
$\Rightarrow \frac{2\text{a}+0+\text{c}}{\sqrt{\text{a}^2+\text{b}^2}}+\frac{0+2\text{b}+\text{c}}{\sqrt{\text{a}^2+\text{b}^2}}+\frac{\text{a}+\text{b}+\text{c}}{\sqrt{\text{a}^2+\text{b}^2}}=0$
⇒ 3a + 3b + 3c = 0 or a + b + c = 0 .....(ii)
From (i) and (ii), variable line passes through the fixed point (1, 1).
View full question & answer→
Question 23 Marks
Show that the tangent of an angle between the lines $\frac{\text{x}}{\text{a}}+\frac{\text{y}}{\text{b}}=1$ and $\frac{\text{x}}{\text{a}}-\frac{\text{y}}{\text{b}}=1$ is $\frac{2\text{ab}}{\text{a}^2-\text{b}^2}.$
Answer
Given that: $\frac{\text{x}}{\text{a}}+\frac{\text{y}}{\text{b}}=1\ .....(\text{i})$
and $\frac{\text{x}}{\text{a}}-\frac{\text{y}}{\text{b}}=1\ .....(\text{ii})$
Slope of eq. (i) m1 (say) = $-\frac{\text{b}}{\text{a}}$
And slope of eq. (ii) m2 (say) = $\frac{\text{b}}{\text{a}}$
Let $\theta$ be the angle between the equation (i) and (ii)
$\therefore \tan\theta=\bigg|\frac{\text{m}_1-\text{m}_2}{1+\text{m}_1\text{m}_2}\bigg|=\begin{vmatrix} \frac{-\frac{\text{b}}{\text{a}}-\frac{\text{b}}{\text{a}}}{1+\Big(-\frac{\text{b}}{\text{a}}\Big)\Big(\frac{\text{b}}{\text{a}}\Big)} \end{vmatrix}$
$\Rightarrow \tan\theta=\begin{vmatrix} \frac{-\frac{2\text{b}}{\text{a}}}{1-\frac{\text{b}^2}{\text{a}^2}} \end{vmatrix}=\bigg|\frac{-2\text{ab}}{\text{a}^2-\text{b}^2}\bigg|$
$\Rightarrow\tan\theta=\frac{2\text{ab}}{\text{a}^2-\text{b}^2}.$
Hence proved.
View full question & answer→
Question 33 Marks
If p is the length of perpendicular from the origin on the line $\frac{\text{x}}{\text{a}}+\frac{\text{y}}{\text{b}}=1$ and a2, p2, b2 are in A.P, then show that a4 + b4 = 0.
Answer
Since p is the length of perpendicular fro m the origin on the line $\frac{\text{x}}{\text{a}}+\frac{\text{y}}{\text{b}}=1,$
We have
$\Rightarrow\text{p}=\frac{0+0-1}{\sqrt{\frac{1}{\text{a}^2}+\frac{1}{\text{b}^2}}}=\frac{\text{ab}}{\sqrt{\text{a}^2+\text{b}^2}}$
$\Rightarrow \text{p}^2=\frac{\text{a}^2\text{b}^2}{\text{a}^2+\text{b}^2}$
Given that, a2, p2 and b2 are in A.P.
$\therefore 2\text{p}^2=\text{a}^2+\text{b}^2$
$\Rightarrow \frac{2\text{a}^2\text{b}^2}{\text{a}^2+\text{b}^2}=\text{a}^2+\text{b}^2$
$\Rightarrow 2\text{a}^2\text{b}^2=(\text{a}^2+\text{b}^2)^2$
$\Rightarrow 2\text{a}^2\text{b}^2=\text{a}^2+\text{b}^4+2\text{a}^2\text{b}^2$
$\Rightarrow \text{a}^4+\text{b}^4=0$
View full question & answer→
Question 43 Marks
For what values of a and b the intercepts cut off on the coordinate axes by the line ax + by + 8 = 0 are equal in length but opposite in signs to those cut off by the line 2x - 3y + 6 = 0 on the axes.
Answer
The given equation are ax + by + 8 = 0 .....(i)
⇒ ax + by + 8 = 0
⇒ ax + by = -8
$\Rightarrow \frac{\text{a}}{-8}\text{x}+\frac{\text{b}}{-8}\text{y}=1$
$\Rightarrow \frac{\text{x}}{\frac{-8}{\text{a}}}+\frac{\text{y}}{\frac{-8}{\text{b}}}=1$
So, the intercepts ono the axes are $\frac{-8}{\text{a}}$ and $\frac{-8}{\text{b}}$
From eq. (ii), we get
⇒ 2x - 3y + 6 = 0
⇒ 2x - 3y = -6
$\Rightarrow \frac{2\text{x}}{6}-\frac{3\text{y}}{-6}=1$
$\Rightarrow \frac{\text{x}}{-3}+\frac{\text{y}}{2}=1$
So, the intercepts are -3 and 2.
According to the question
$\Rightarrow \frac{-8}{\text{a}}=+3$
$\Rightarrow \text{a}=-\frac{8}{3}$
and $\frac{-8}{\text{b}}=-2\Rightarrow \text{b}=+4$
Hence, the required values of a and b are $\frac{-8}{3}$ and 4.
View full question & answer→
Question 53 Marks
Find the equation of the circle which touches the both axes in first quadrant and whose radius is a.
Answer
Intercept form of straight line
$\frac{\text{x}}{\text{a}}+\frac{\text{y}}{\text{b}}=1,$ where a and b are the intercepts on the axis
Given that a = b
$\therefore \frac{\text{x}}{\text{a}}+\frac{\text{y}}{\text{b}}=1\ .....(\text{i})$
If eq. (i) passes throught the point (1, -2), we get
$\Rightarrow\frac{1}{\text{a}}-\frac{2}{\text{a}}=1$
$\Rightarrow -\frac{1}{\text{a}}=1$
$\Rightarrow \text{a}=-1$
So, equation of the straight line is
$\Rightarrow\frac{\text{x}}{-1}+\frac{\text{y}}{-1}=1$
$\Rightarrow \text{x}+\text{y}=-1$
$\Rightarrow \text{x}+\text{y}+1=0$
Hence, the required equation is x + y = 1 = 0.
View full question & answer→
Question 63 Marks

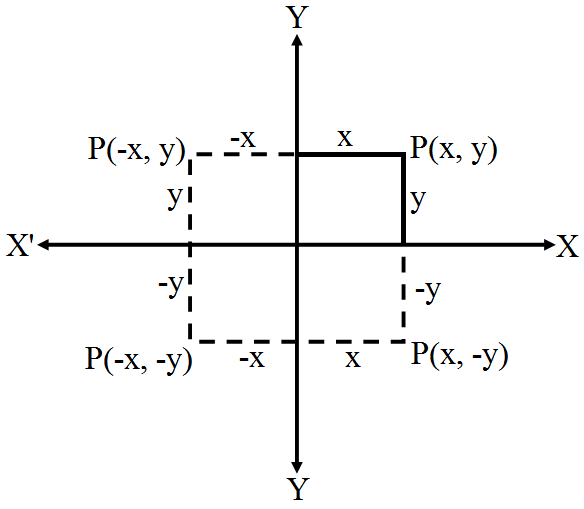

If the sum of the distances of a moving point in a plane from the axes is 1, then find the locus of the point.
[Hint: Given that |x| + |y| = 1, which gives four sides of a square.]
Answer
Let coordinates of a moving point P be (x, y).
Given that the sum of the distance from the axes to the point is always 1

$\therefore$ |x| + |y| = 1
⇒ x + y = 1
⇒ -x - y = 1
⇒ -x + y = 1
⇒ x - y = 1
Hence, these equations gives up the locus of the point P which is a square.
View full question & answer→
Question 73 Marks
Find the equation of the lines which passes through the point (3, 4) and cuts off intercepts from the coordinate axes such that their sum is 14.
Answer
Equation of line in intercept form is $\frac{\text{x}}{\text{a}}+\frac{\text{y}}{\text{b}}=1$
Given that, a + b = 14 ⇒ b = 14 - a
So, equation of line is: $\frac{\text{x}}{\text{a}}+\frac{\text{y}}{14-\text{a}}=1$
Since it passes through the point (3, 4), we have
$\Rightarrow\frac{3}{\text{a}}+\frac{4}{14-\text{a}}=1$
⇒ a2 - 13a + 42 = 0
⇒ (a - 7)(a - 6) = 0
$\therefore$ a = 7, then b = 7
When a = 7, then b = 7
When a = 6, then b = 8
Thus, equation of line is: $\frac{\text{x}}{7}+\frac{\text{y}}{7}=1,$
i.e., x + y = 7 or $\frac{\text{x}}{6}+\frac{\text{y}}{8}=1$
View full question & answer→
Question 83 Marks
Match the questions given under Column C1 with their appropriate answers given under the Column C2:
Column C1 Column C2
(a) The coordinates of the points P and Q on the line x + 5y = 13 which are at a distance of 2 units from the line 12x - 5y + 26 = 0 are (i) $(3, 1), (-7, 11) $
(b) The coordinates of the point on the line x + y = 4, which are at a unit distance from the line 4x + 3y - 10 = 0 are (ii) $-\frac{1}{3},\frac{11}{3},\frac{4}{3},\frac{7}{3}$
(c) The coordinates of the point on the line joining A (-2, 5) and B (3, 1) such that AP = PQ = QB are (iii) $1,\frac{12}{5},-3,\frac{16}{5}$
Answer
 Column C1 Column C2
(a)The coordinates of the points P and Q on the line x + 5y = 13 which are at a distance of 2 units from the line 12x - 5y + 26 = 0 are(iii)$1,\frac{12}{5},-3,\frac{16}{5}$
(b)The coordinates of the point on the line x + y = 4, which are at a unit distance from the line 4x + 3y - 10 = 0 are(i)$(3, 1), (-7, 11) $
(c)The coordinates of the point on the line joining A (-2, 5) and B (3, 1) such that AP = PQ = QB are(ii)$-\frac{1}{3},\frac{11}{3},\frac{4}{3},\frac{7}{3}$

Solution:

  1. Let P(x1, y1) be any point of the given line

x + 5y = 13 $\therefore$ x1 + 5y1 = 13 Distance of line 12x - 5y + 26 = 0 from the point P(x1, y1) $2=\bigg|\frac{12\text{x}_1-5\text{y}_1+26}{\sqrt{(12)^2+(-5)^2}}\bigg|$ $\Rightarrow 2=\bigg|\frac{12\text{x}_1-(13-\text{x}_1)+26}{13}\bigg|$ $\Rightarrow 2=\bigg|\frac{12\text{x}-1-13+\text{x}_1+26}{13}\bigg|$ $\Rightarrow 2=\Big|\frac{13\text{x}_1+13}{13}\Big|$ $\Rightarrow 2=\pm(\text{x}_1+1)$ $\Rightarrow 2=\text{x}_1+1$ ⇒ x1 = 1 (Taking (+) sign) and 2 = -x1 - 1 ⇒ x1 = -3 (Taking (-) sing) Putting the values of x1 in eq. x1 + 5y = 13. We get $\text{y}_1=\frac{12}{5}$ and $\frac{16}{5}.$ So, the required points are $\Big(1,\frac{12}{5}\Big)$ and $\Big(-3,\frac{16}{5}\Big)$ Hence, (a) ⇔ (iii).

  1. Let P (x1, y1) be any point on the given line

x + y = 4 $\therefore$ x1 + y1 = 4 .....(i) Distance of the line 4x + 3y - 10 = 0 from the point P(x1, y1) $\Rightarrow 1 =\bigg|\frac{4\text{x}_1+3\text{y}_1-10}{\sqrt{(4)^2+(3)^2}}\bigg|$ $\Rightarrow 1=\Big|\frac{4\text{x}_1+3(4-\text{x}_1)-10}{5}\Big|$ $\Rightarrow 1 = \Big|\frac{4\text{x}_1+12-3\text{x}_1-10}{5}\Big|$ $\Rightarrow 1=\Big|\frac{\text{x}_1+2}{5}\Big|$ $\Rightarrow 1=\pm\Big(\frac{\text{x}_1+2}{5}\Big)$ $\Rightarrow \frac{\text{x}_1+2}{5}=1$ (Taking (+) sign) $\Rightarrow \text{x}_!+2=5\Rightarrow \text{x}_1=3$ and $\frac{\text{x}_1+2}{5}=-1$ (Taking (-) sign) $\Rightarrow \text{x}_1+2=-5\Rightarrow \text{x}_1=-7$ Putting the values of x1 in eq. (i) we get x1 + y1 = 4 at x1 = 3, y1 = 1 at x1 = -7, y1 = 11 So, the required are (3, 1) and B(-7, 11) Hence, (b) ⇔ (i).

  1. Given that AP = PQ = QB

Equation of line joining A(-2, 5) and B(3, 1) is $\text{y}-5=\frac{1-5}{3+2}(\text{x}+2)$
$\Rightarrow \text{y}-5=\frac{-4}{5}(\text{x}+2)$ ⇒ 5y - 25 = -4x - 8 ⇒ 4x + 5y - 17 = 0 Let P(x1, y1) and Q(x2, y2) be any two points on the AB P(x1, y1) divides the line the AB in the ratio 1 : 2 $\therefore \text{x}_1=\frac{1.3+2(-2)}{1+2}=\frac{3-4}{3}=\frac{-1}{3}$ $\text{y}_1=\frac{1.1+2.5}{1+2}=\frac{1+10}{3}=\frac{11}{3}$ So, the coordinates of $\text{P}(\text{x}_!,\text{y}_1)=\Big(\frac{-1}{3},\frac{11}{3}\Big).$ Now point Q(x2, y2) is the mid point of PB $\therefore \text{x}_2=\frac{3-\frac{1}{3}}{2}=\frac{4}{3}$ $\text{y}_2=\frac{1+\frac{11}{3}}{2}=\frac{7}{3}$ Hence, the coordinates of $\text{Q}(\text{x}_2,\text{y}_2)=\Big(\frac{4}{3},\frac{7}{3}\Big)$ Hence, (c) ⇔ (ii).

View full question & answer→
Question 93 Marks
Find the equation of the line passing through the point of intersection of 2x + y = 5 and x + 3y + 8 = 0 and parallel to the line 3x + 4y = 7.
Answer
Given lines are:
2x + y = 5 .....(i)
x + 3y = -8 .....(ii)
Solving (i) and (ii), we get their point intersection as $\Big(\frac{23}{5},\frac{-21}{5}\Big).$
Slope of line 3x + 4y = 7 is $\frac{-3}{4}.$ So, the line parallel to this line has slope $\frac{-3}{4}.$
Then the equation of the line passing through the point $\Big(\frac{23}{5},\frac{-21}{5}\Big)$ having slope $\frac{-3}{4}$ is:
$\text{y}+\frac{21}{5}=\frac{-3}{4}\Big(\text{x}-\frac{23}{5}\Big)$
$\Rightarrow 4\text{y}+\frac{84}{5}=-3\text{x}+\frac{69}{5}$
$\Rightarrow 3\text{x}+4\text{y}=\frac{84-69}{5}=3$
$\Rightarrow 3\text{x}+4\text{y}+3=0$
View full question & answer→
