Physics 2 Marks Questions

Fluid Mechanics · Rajasthan Board (RBSE) STD 12 Science (Rajasthan - English Medium). 16 questions.

Questions

2 Marks Questions

Take a timed test

16 questions · self-marked practice — reveal the answer and mark yourself.

Question 12 Marks
A cube of ice floats partly in water and partly in $K.$ oil Find the ratio of the volume of ice immersed in water to that in $K.$ oil. Specific gravity of $K$. oil is $0.8$ and that of ice is $0.9$.
Answer
Let the volume of ice in water be a mo and the volume of ice in $K.$ oil
be bm$^2$ Therefore, Total Volume $= a + b$
Density of ice $=$ density of water at $4^\circ C$ Specific Gravity.
$\therefore$ Density of the ice $= 0.9 \times 1000\ kg/m^2$
Density of Ice $= 900\ kg/m^2$
Therefore, total mass of the ice cube $= (a + b) \times 900\ kg$
Therefore, Its weight $= (a + b) \times 900 \times 10$
By the law of the Flotation, the total force of buoyancy by the water
and the Kerosene oil will be equal to the weight of the ice cube.
$\therefore$ The total force of buoyancy $= a \times 1000 + Y \times 800\ kg$
$(a + b) \times 900 = a \times 1000 + b \times 800$
$900a + 900b = 1000a + 800b$
$100a = 100b$
$\therefore a = b$
Hence, the ratio of there volume is $1 : 1.$
View full question & answer→
Question 22 Marks
If water be used to construct a barometer, what would be the height of water column at standard atmospheric pressure $(76\ cm$ of mercury$)?$
Answer
The Pressure will be same whether the mercury is used or water is
used, there is only a difference in density of liquid and height of
Fluid.
For mercury, height is $76\ cm.$
$\therefore$ pressure $=\text{h}\rho\text{g}$
$=7\times13.6\times\text{g}$
where $13.6\ g/cm^2$ is the density of Mercury.
Now, let the height of the water column be $h m.$
$\therefore\text{P}=\text{h} \times\rho\text{g},$ where density of water is $1\ g/cm^2.$
$\therefore\text{p}=\text{h}\times76\times13.6$
$\Rightarrow\text{h}=1033.6\ cm$
$\therefore\text{h}=10.336m$
View full question & answer→
Question 32 Marks
Suppose the tube in the previous problem is kept vertical with $A$ upward but the other conditions remain the same. The separation between the cross$-$sections at $A$ and $B$ is $\frac{15}{16}\text{cm}.$ Repeat parts $(a), (b)$ and $(c)$ of the previous problem. Take $g = 10\ m/s^2.$
Answer
Now, a. We know volume rate of the flow does not depends upon the the height of the pipe, since pipe.
Velocity of the fluid will remains unchanged.
  1. At $\text{A},$
Area $\times$ velocity $=1\text{cm}^3/\text{s}.$
$\frac{4}{100}\text{cm}^2\times$ velocity $=1$
$\therefore$ velocity $=25\ \text{cm}/\text{seconds}.$
  1. At $\text{B},$
Area $\times$ velocity $=1\text{cm}^3/\text{s}.$
$\frac{2}{100}\times$ velocity $=50\ \text{cm}/\text{seconds}.$
velocity $=50\ \text{cm}/\text{seconds}.$
  1. Pressure difference, will be affected, this is because, there will be the gravitational work also which will be included.
Using the Bernoulli's equation,
Using the Bernoulli's Equation,
$\text{p}_1+\text{h}_1\rho\text{g}+\frac{1}{2}\rho\text{v}_1^2=\text{p}_2+\text{h}_2\rho\text{g}+\frac{1}{2}\rho\text{v}_2^2$
$\therefore\text{p}_1-\text{p}_2=\frac{1}{2}\rho\big(\text{v}_2^2-\text{v}_1^2\big)+\rho\text{g}(\text{h}_2-\text{h}_1)$
$\therefore\text{p} _1-\text{p}_2=\frac{1}{2}\times1\times\big(50^2-25^2\big)+1\times1000\Big(-\frac{15}{16}\Big)$
View full question & answer→
Question 42 Marks

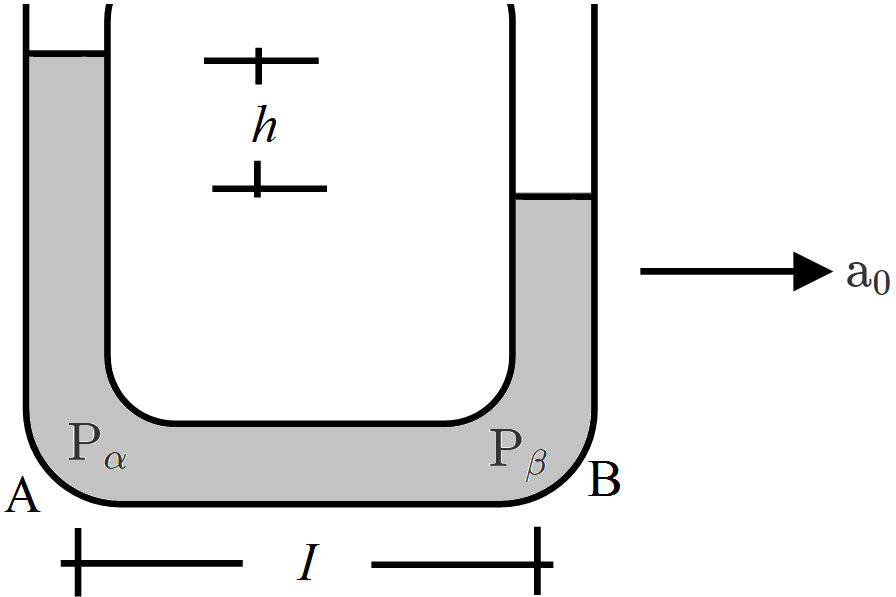

A $U-$ tube containing a liquid is accelerated horizontally with a constant acceleration $a_0.$ If the separation between the vertical limbs is $1,$ find the difference in the heights of the liquid in the two arms.
Answer
Let the pressure at the base of the back limb at $A = P,$ and the pressure at the base of the front limb at $B = Ps.$ The separation between the vertical limbs $AB = ($given$).$ When the $U-$ tube is accelerated at an acceleration a, the difference of pressure between horizontal points $A$ and $B$ is given as,
$\text{P}_\text{a}-\text{P}_\beta=\text{l}\rho\text{a}_0$

where $p$ is the density of the liquid. Due to this pressure difference, the liquid in limb $A$ will rise to a heighth more than in limb $B$.
The pressure difference due to this height difference balances the difference of pressure between points $A$ and $B.$
The pressure due to thhis height $\text{h}=\rho\text{gh},$ Equating we get,
$\rho\text{gh}=\text{p}_\text{a}-\text{p}_\beta=\text{l}\rho\text{a}_0$
$\Rightarrow\text{gh}=\text{la}_0$
$\text{h}=\text{a}_0\text{l}/\text{g}$
View full question & answer→
Question 52 Marks
Water flows through a horizontal tube of variable cross$-$section. The area of cross-section at $A$ and $B$ are $4\ mm^2$ and $2\ mm^2$ respectively. If $1cc$ of water enters per second through $A,$ find,
  1. The speed ofwater at $A.$
  2. The speed of water at $B.$
  3. Thepressure difference $P_A- P_{B.}$
Answer
Given:
Volume rate of the flow of water $= 1cc/\sec.$
$= 1\ cm/\sec.$
Since, Volume rate of the flow of water is constant throughout the Horizontal pipe, therefore,
  1. $\text{At}\ \text{A},$
$\text{Area}\times\text{velocity}=1\text{cm}^3/\text{s}.$
$\frac{4}{100}\text{cm}^2\times\text{velocity}=1$
$\therefore\text{velocity}=25\text{cm}/\text{seconds}.$
  1. $\text{At}\ \text{B},$,
$\text{Area}\times\text{velocity}=1\text{cm}^3/\text{s}.$
$\frac{2}{100}\times\text{velocity}=1$
$\text{velocity}=50\text{cm}/\text{seconds}.$
  1. Using the Bernoulli's equation,
$\text{p}_1+\text{h}_1\text{pg}+\frac{1}{2}\rho\text{v}_1^2 =\text{p}_2+\text{h}_2\rho\text{g}+\frac{1}{2}\rho\text{v}_2^2$
$\therefore\text{p}_1-\text{p}_2=\frac{1}{2}\rho\big(\text{v}_2^2-\text{v}_1^2\big)+\rho\text{g} \big(\text{h}_2-\text{h}_1\big)$
$\therefore\text{p}_1-\text{p}_2=\frac{1}{2}\rho\big(\text{v}_2^2-\text{v}_1^2\big)$ $\big[\because$ in case of the horizontal tube, height difference is zero.$\big]$
$\therefore\text{p}_1=\text{p}_2=\frac{1}{2}\times1\times\big(50^2-25^2\big)$
$\therefore\text{p}_1-\text{p}_2=937.5\ \text{dyne}/\text{cm}^2$
$\therefore\text{p}_1-\text{p}_2=93.75\ \text{pa}.$
View full question & answer→
Question 62 Marks
A wooden block of mass $0.5\ kg$ and density $800\ kg/m^3 $ is fastened to the free end of a vertical spring of spring constant $50N/m$ fixed at the bottom. If the entire system is completely immersed in water, find.
  1. The elongation $($or compression$)$ of the spring in equilibrium and.
  2. The time $-$ period of vertical oscillations of the block when it is slightly depressed and released.
Answer
When the system is completely Immersed in a liquid, then Upthrust and the spring force acts vertically upwards, but the weight of the object acts downwards,Thus, In the State of the Equilibrium, we can say that,
Spring force $+$ Upthrust $=$ Weight
$\text{Kx}+\text{v}\rho\text{g}=\text{mg}$
$\therefore\text{Kx}=\text{mg}-\text{v}\rho\text{g}$
$\therefore\text{Kx}=0.5\times10-\frac{0.5}{800}\times1000\times10$
$\therefore\text{Kx}=5-\frac{50}{8}$
$\text{Kx}=-1.25$ [Minus sign means upward direction]
$\therefore\text{x}=0.025\text{m}$ or $2.5\ cm$.
  1. Let the block be depressed by $'a\ ' \ cm$.
The force on the block by the spring $= 50a N$
Hence the acceleration $=\frac{50\text{a}}{0.5}$
$=100\text{a}\ \text{m}/\text{s}^2$
Now, $\omega^2\text{a}=100$
$\therefore\omega=10\text{s}^{-1}$
Using the formula,
$\text{T}=\frac{2\pi}{\omega}$
$\therefore\text{T}=\frac{2\pi}{10}$
$\therefore\text{T}=\frac{\pi}{5}$ seconds or $0.63$ seconds.
Hence, the time period of the $\text{S.H.M}$. is $\frac{\pi}{5}$ or $0.63$ seconds.
View full question & answer→
Question 72 Marks

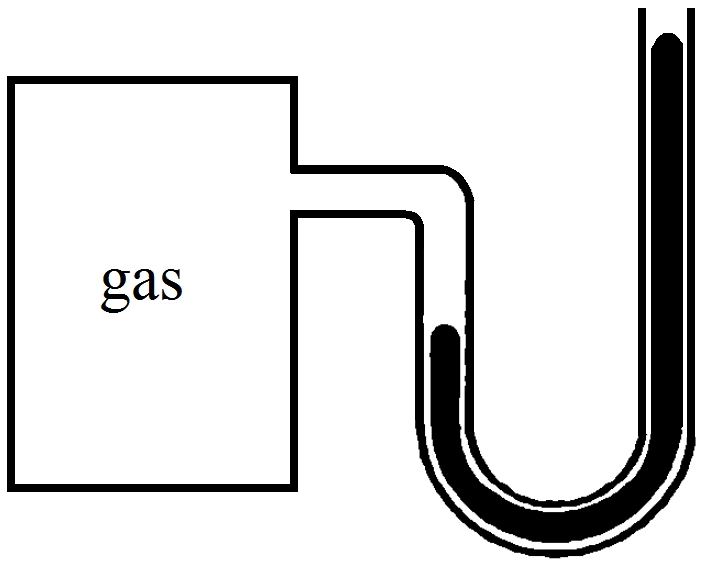

The heights of mercury surfaces in the two arms of the manometer shown in figure are $2\ cm$ and $8\ cm$. Atmospheric pressure $= 1. 01 x 10^5N/rn^2.$ Find.
  1. Thepressure of the gas in the cylinder and.
  2. The pressure of mercury at the bottom of the $U$ tube.
Answer
Since, the tube is opened from the top, this means, total pressure of the gas will be equal to the pressure due to the mercury column $+$ tmospheric Pressure.
$\therefore$ Pressure of the gas in cylinder $=$ Atmospheric Pressure $+$ Pressure due to the mercury column.
Now, Pressure due to the mercury column $= \rho g(h_2 - h_1)$
where, \rho is the density of the mercury $= 13.6g/cm^3,$
g is the acceleration due to gravity $= 9.8m/s² = 980\ cm/s^2, h_2$ is $8 \ cm$ and $h_1$ is $2\ cm$.
$\therefore$ Total Pressure of the gas $= 1 atm + (8 - 2) \times 13.6 \times 980$
$= 1.013 \times 10^5Pa + 6 \times 13.6 \times 980 dy\ ne/cm^{2}$
$= 101300 + 7996.8Pa.$
$= 181268Pa.$
$= 1.8 \times 10^5Pa.$
  1. The pressure of the mercury at the bottom of the $U -$ tube.
$=$ The pressure of mercury column on the open side $+$ Atmospheric pressure.
$= 13.6 \times 10^6/1000 \times 9.8 \times 0.08 + 1.013 \times 10^5$
$= 1.12 \times 10^5Pa.$
View full question & answer→
Question 82 Marks
A ferry boat has internal volume $1m^{3 }$ and weight $50\ kg.$
  1. Neglecting the thickness of the wood, find the fraction of the volume of the boat immersed in water.
  2. If aleak develops in the bottom and water starts coming in, what fraction of the boat's volume will be filled with water before water starts coming in from the sides?
​​​​​​​
Answer
The volume of the boat immersed in water will be that volume of water which weight $= 50\ kg.$
Since the density of water $= 1000\ kg/m$ ?, this volume will be $=\frac{50}{1000}\text{m}^3=\frac{1}{20}\text{m}^3\cdot$
Hence the fraction of the volume of the boat immersed in water $=\frac{\big(\frac{1}{20}\text{m}^3\big)}{\big(1\text{m}^3\big)}=\frac{1}{20}\cdot$
In the leak condition, when the outer water level comes to the top of the side of the boat, the total volume of water displaced is equal to the internal volume of theboat $= 1m^3$.
The force of buoyancy $=$ weight of this water $= 1000\ kg.$
This force balances the weight of the boat plus the weight of the water inside.
If the weight of the water inside be $Xkg,$ then $X + 50 = 1000\ Kg$
$\Rightarrow\text{x}=950\text{Kg}$
Hence the volume of inside water $=\frac{50}{1000}\text{m}^3=0.950\text{m}^3$
The inside water volume fraction $=\frac{\big(0.950\text{m}^3\big)}{1\text{m}^3}$
$=\frac{19}{20}\cdot$
View full question & answer→
Question 92 Marks
The surface of water in a water tank on the top of a house is $4m$ above the tap level Find the pressure of water at the tap when the tap is closed Is it necessary to specify that the tap is closed? Take $g = 10m/s^2.$
Answer
Given conditions,
density $(p) = 1000\ Kg/m^2.$
acceleration due to the gravity $(g) = 10m/s^2.$
height $(h) = 4m$
Using the Formula,
$P = pgh.$
$\therefore P = 1000 \times 10 \times 4N/m^2.$
$P = 40000N/m^2.$
Hence, the pressure is $40,000$
View full question & answer→
Question 102 Marks

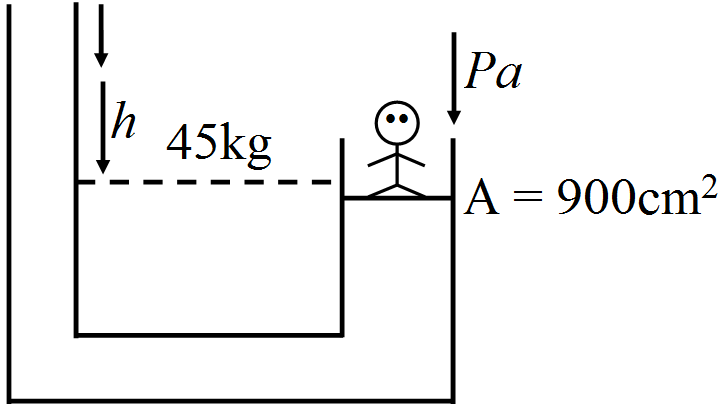

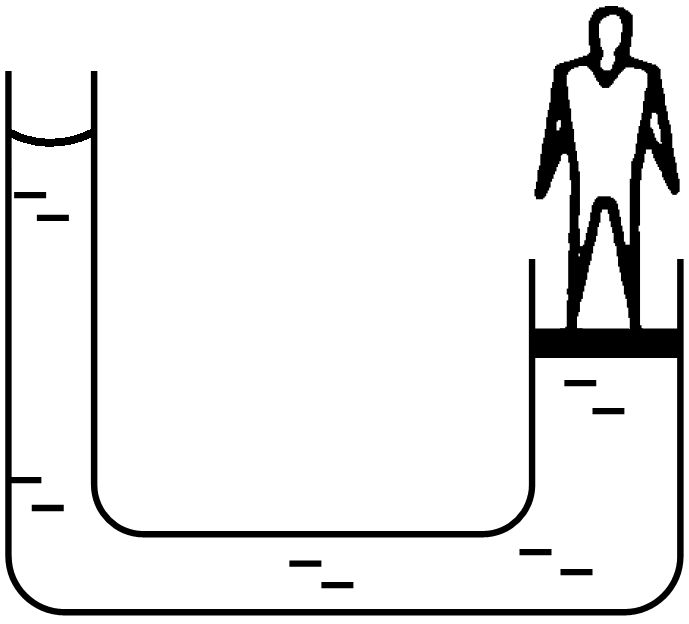

The area of cross$-$section of the wider tube shown in is $900\ cm^2.$ If the boy standing on the. Piston weighs $45\ kg,$ find the difference in the levels of water in the two tubes.
Answer
Given: Area of the wider tube, $A = 900\ cm^2$ Weight of the boy, $m = 45\ kg$ Density of water, $p - 10^3\ kgm^{-3}$ Let $hn$ be the difference in the levels of water in the tubes and pa be the atmospheric pressure.

As per the figure, we have : $\text{Pa}+\text{hpg}=\text{pa}+\frac{\text{mg}}{\text{A}} $
$\Rightarrow \text{hpg}=\frac{\text{mg}}{\text{A}}$
$\Rightarrow \text{h}=\frac{\text{m}}{\text{pA}}$
$\Rightarrow \text{h}=-\frac{\text{m}}{1000\times \text{A}}$
$=\frac{4}{1000\times900\times10^{-4}}$
$=\frac{1}{2}\text{m}=50\ cm$
View full question & answer→
Question 112 Marks
Water level is maintained in a cylindrical vessel upto a fixed height H. The vessel is kept on a horizontal plane. At what height above the bottom should a hole be made in the vessel so that the water stream coming out of the hole strikes the horizontal plane at the greatest distance from the vessel.
Answer
Let the hole be at a height h from the bottom. The height of the water above the hole = H - h. The speed of the water at the hole
$\text{v}=\sqrt{\{2\text{g}(\text{h}-\text{h})\}}$
Let the time taken by the water to strike the floor is t. Then for the vertical fall,
$\text{h}=0\times\text{t}+\frac{1}{2}\text{gt}^2$
$\Rightarrow\text{t}^2=2\text{h}/\text{g}$
$\Rightarrow\text{t}=\sqrt{(2\text{h}/\text{g})}$
Let the distance of the striking point from the hole be X. Then,
$\text{X}=\text{v}\times\text{t}=\sqrt{2\text{g}(\text{H}-\text{h})}\times\sqrt{(2\text{h}/\text{g})}$
$=\sqrt{\{2^2\times(\text{H}-\text{h})\text{h}\}}=2\sqrt{(\text{H}-\text{h})}\text{h}$
$\Rightarrow\text{X}=2\sqrt{(\text{H}-\text{h})}\times\sqrt{\text{h}}$ For maximum $\text{x},\frac{\text{dx}}{\text{dh}}=0$
$2\times\Bigg[\sqrt{(\text{H}-\text{h})}\big]\times\frac{\text{d}\sqrt{\text{h}}}{\text{dh}}+_\sqrt{\text{h}}\times\frac{\text{d}\sqrt{(\text{H}-\text{h})}}{\text{dh}}\Bigg]=0$
$\Rightarrow\sqrt{(\text{H}-\text{h})}\times\Big\{\frac{1}{2\sqrt{\text{h}}}\Big\}+\sqrt{\text{h}}\times\frac{1}{\Big\{2\sqrt{(\text{H}-\text{h})\times(-1)}\Big\}}=0$
$\Rightarrow\sqrt{(\text{H}-\text{h})}\times\Big\{\frac{1}{2\sqrt{\text{h}}}\Big\}+\sqrt{\text{h}}\times\frac{1}{\big\{2\sqrt{(\text{H}-\text{h})}\times(-1)\big\}}=0$
$\Rightarrow\frac{\sqrt{(\text{H}-\text{h})}}{(\sqrt{\text{h}})}=\frac{\sqrt{\text{h}}}{\big\{\sqrt{(\text{H}-\text{h})}\big\}}$
$\Rightarrow\text{H}-\text{h}=\text{h}$
$\Rightarrow2\text{h}=\text{H}$
$\Rightarrow\text{h}=\frac{\text{H}}{2}$
Hence the required height of the hole from the bottom for the greatest horizontal distance of water to strike is half the height of the water level.
View full question & answer→
Question 122 Marks
Water flows through a horizontal tube as shown in If the difference of heights of water column in the vertical tubes is $2\ cm,$ and the areas of cross-section at $A$ and $B$ are $4\ cm^2$ and $2\ cm^2$ respectively, find the rate of flow of water across any section.
Answer
The height difference $=2\text{ cm}=0.02\text{m}$
The difference of pressure between $A$ and $B =\text{p}_\text{a}-\text{p}_\beta=\rho\text{gh}$
$=\frac{1}{2}\rho \text{Va}^2=\text{p}_\beta+\frac{1}{2}\rho \text{V}\beta^2$
$=1000\times10\times0.02=200\text{N}/\text{m}^2$
Let the rate of flow of water be $Qcc/s$ i.e. $=\text{Q}\times10^{-6}\text{m}^3/\text{s}$
Area of the cross $-$ section at $\text{A}=4\text{cm}^2=\frac{4}{10000}\text{m}^2$
The speed at $\text{A}=\text{v}_\text{a}=\frac{\text{Q}\times10^{-6}}{\Big(\frac{4}{10000}\Big )}\text{m}/\text{s}=\frac{\text{Q}}{400}\text{m}/\text{s}$
Area of the cross $-$ section at $\text{B}=2\text{cm}^2=\frac{2}{10000}\text{m}^2$
The speed at $\text{B}=\text{v}_\beta=\frac{\text{Q}\times10^{-6}}{\Big(\frac{2}{10000}\Big)}\text{m}/\text{s}=\frac{\text{Q}}{200}\text{m}/\text{s}$
Since the height of both the points are the same, from Bernoulli's theorem,
$\text{p}_\text{a}+\frac{1}{2}\rho\text{V}\text{a}^2=\text{p}\beta+\frac{1}{2}\rho\text{V}\beta^2$
$\Rightarrow\text{p}_\text{a}-\text{p}_\beta=\frac{1}{2}\rho\big(\text{V}\beta^2-\text{V}\text{a}^2\big)$
$=\frac{1}{2}\times1000\times\text{Q}^2\Big\{\Big(\frac{1}{2000}\Big)^2-\Big(\frac{1}{400}\Big)^2\Big\}$
$\Rightarrow\text{p}_\text{a}-\text{p}_\beta=\Big(\frac{1}{20}\Big)\times\text{Q}^2\Big\{\frac{1}{4}-\frac{1}{16}\Big\}=\frac{3\text{q}^2}{320}$
$\Rightarrow200=\frac{3\text{Q}^2}{320}$
$\Rightarrow\text{Q}^2=200\times\frac{320}{3}=21333$
$\Rightarrow\text{Q}=146\text{cc}/\text{s}$
View full question & answer→
Question 132 Marks
Water flows through the tube shown in The areas of cross$-$section of the wide and the narrow portions of the tube are $5\ cm^2$ and $2\ cm^2$ respectively. The rate of flow of water through the tube is $500\ cm^3/s.$ Find the difference of mercury levels in the $U-$tube.
Answer
The Discharge $\text{Q}=500\text{ cm}^3/\text{s},$
The speed at the wide section $\text{V}_\text{a}=\frac{500}{5}=100\text{cm}/\text{s}=1\text{m}/\text{s}$
The speed at the narrow section $\text{V}_\beta=\frac{500}{2}=250\text{cm}/\text{s}=2.5\text{m}/\text{s}$
Let the difference in height levels of mercury $=\text{h}$
The pressure difference at the two points $=\rho'\text{gh}$
If the pressure at the wide section $=\text{p}_\text{a}$ and at the narrow section $=\text{p}\beta$ then from the Bernoulli's theorem
$\text{p}_\text{a}+\frac{1}{2}\rho\text{V}\text{a}^2=\text{p}_\beta+\frac{1}{2}\rho\text{V}\beta^2$
$\Rightarrow\frac{1}{2}\rho\big(\text{V}\beta^2-\text{V}\text{a}^2\big)=\text{p}_\text{a}-\text{p}_\beta$
$\Rightarrow\frac{1}{2}\times1000\times\big(2.5^2-1^2\big)=\rho'\text{gh}=13600\times9.8\times\text{h}$
$\Rightarrow\text{h}=10\times\frac{(6.25-1)}{(2\times136\times9.8)}\text{m}$
$\Rightarrow\text{h}=52.5\times\frac{100}{2665.6}\text{ cm}$
$\Rightarrow\text{h}=\frac{5250}{2665.6}$
$=1.97\text{ cm}$
View full question & answer→
Question 142 Marks
A metal piece of mass $160g$ lies in equilibrium inside a glass of water The piece touches the bottom of the glass at a small number of points. If the density of the metal is $8000\ kg/m^3,$ find the normal force exerted by the bottom of the glass on the metal piece.
Answer
Given mass of the metal piece, $m = 160g = 0.160\ kg$
Density of metal $= 8000\ kg/m^3$
Here we can say that the weight of the metal piece $=$ buoyant force$(FB) +$ Normal force
i.e. weight of the metal piece $= mg$
Buoyant force, $F_B =$ Volume of water displaced by metal $\times P_{water} \times g$
$mg = FB +$ Normal force
Normal force $= mg - F_B$
$= m \times g - V \times P_{water} \times g$
Volume of water displaced by metal. $=\frac{\text{m}}{\text{pwater}}=\frac{0.160}{8000}=0.00002$
Normal force $= (0.160 \times 9.8) - (0.00002 \times 1000 \times 9.8)$
$= 1.568 - 0.196$
$= 1.372N$
$= 1.4N$
View full question & answer→
Question 152 Marks
A solid sphere of radius 5cm floats in water. If a maximum load of 0.1kg can be put on it without wetting the load, find the specific gravity of the material of the sphere.
Answer
$\text{w}_1+\text{w}_2=\text{u}\cdot$
$\Rightarrow\text{mg}+\text{v}\times\rho_\text{s}\times\text{g}=\text{v}\times\rho_\text{w}\times\text{g}$
$\Rightarrow1-\rho_\text{s}=0.19$
$\Rightarrow\rho_\text{s}=1-(0.19)=0.8\text{gm}/\text{cc}$
(where $\rho_\text{s}$ = density of sphere in gm/cc)
so, specific gravity of the material is 0.8.
View full question & answer→
Question 162 Marks
A hollow spherical body of inner and outer radii $6\ cm$ and $8\ cm$ respectively floats half submerged in water. Find the density of the material of the sphere.
Answer
Let the density of the spherical body is $Pg/cm$
By the Principle of the Flotation,
Weight of the spherical body $=$ Weight of the fluid displaced.
$\therefore$ Volume of the spherical body $\times$ density of spherical body $\times g =$ Volume of body displaced in water $\times$ density of water $\times g$
Volume of the spherical body $= \frac{4}{\pi}\big(\text{R}^3-\text{r}^3\big)$
$=\frac{4}{3}\times\frac{22}{7}\times\big(8^3-6^3\big) $
$=\frac{4}{3\pi}\big(8^3-6^3\big)$
Volume of the spherical body displaced in water $=$ Outer volume $=\frac{\text{outer}\ \text{volume}}{2}=\frac{4}{3\pi}\big(8^3\big)$
Also, density of water $=1\text{g}/\text{cm}^3.$
$\therefore\frac{4}{3\pi}\big(\text{R}^3-\text{r}^3\big)\times\rho=\frac{\Big[\frac{4}{3\pi}\big(\text{R}^3\big)\Big]}{2}\times1$
$\therefore\frac{4}{3\pi}\big(8^3-6^3\big)\times\rho=\frac{2}{3\pi}\big(8^3\big)$
$2\big(8^3-6^3\big)\times\rho=(8^3)$
$2\times296\rho=-512$
$\text{p}=0.8648\text{g}/\text{cm}^3$
$\therefore\text{p}=864.8\text{kg}/\text{m}^3.$
Hence, the density of the material of the spherical body $=864.8\ Kg/m^3$.
Hope it helps.
View full question & answer→
Generate Paper FreeAll Fluid Mechanics topics
2 Marks Questions - Physics STD 12 Science Questions - Vidyadip
