Physics M.C.Q (1 Marks)

Geometrical Optics · Rajasthan Board (RBSE) STD 12 Science (Rajasthan - English Medium). 26 questions.

Questions

M.C.Q (1 Marks)

Take a timed test

26 questions · 8 auto-graded MCQ + 18 self-marked written.

MCQ 11 Mark

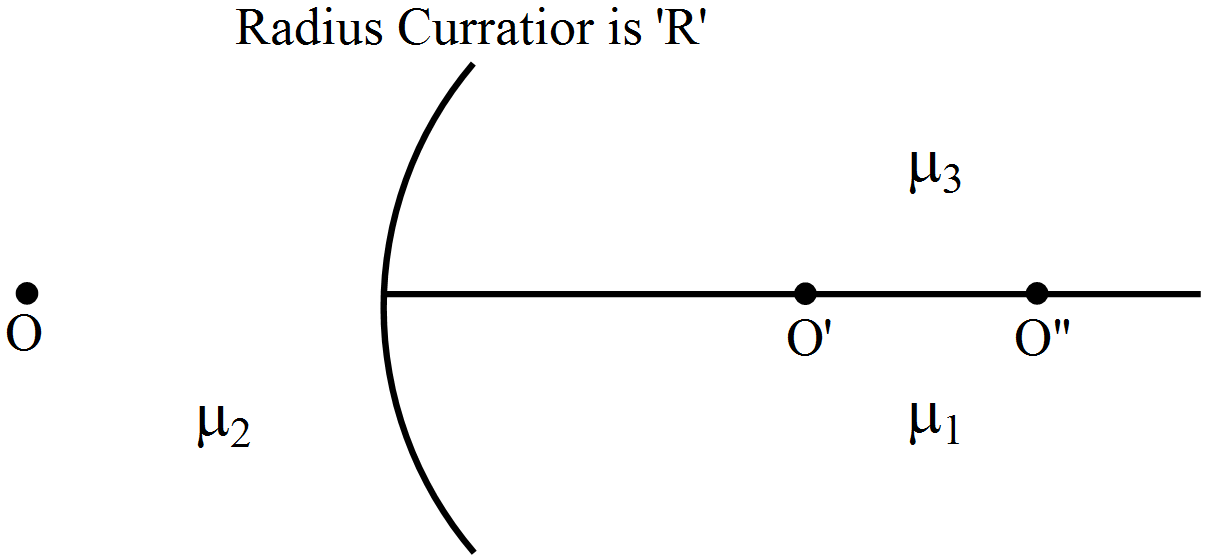

Three transparent media of refractive indices $\mu_1,\mu_2$ and $\mu_3.$ A point object $O$ is placed in the medium $\mu_2.$ If the entire medium on the right of the spherical surface has refractive index $\mu_1,$ the image forms at $O\ '$. If this entire medium has refractive index $\mu_3,$ the image forms at $O"$. In the situation shown:
  • ✓
    The image forms between $O\ '$ and $O"$
  • B
    The image forms to the left of $O\ '$
  • C
    The image forms to the right of $O"$
  • D
    Two images form, one at $O\ '$ and the other at $O"$.
Answer
Correct option: A.
The image forms between $O\ '$ and $O"$
$m_1$, Image is $O^1$
$m_3$, Image is $O^{11}$
Spherical Surface formula
$\frac{\mu^{11}}{\text{v}}-\frac{\mu_1}{\mu}=\frac{\mu^{11}-\mu^1}{\text{R}}$
If ray goes to $m^2$ to $m^1$ than Image is formed at $O^1$ and if ray goes to $m_2$ to $m_3$ than Image is formed at $O^{11}.$
View full question & answer→
MCQ 21 Mark

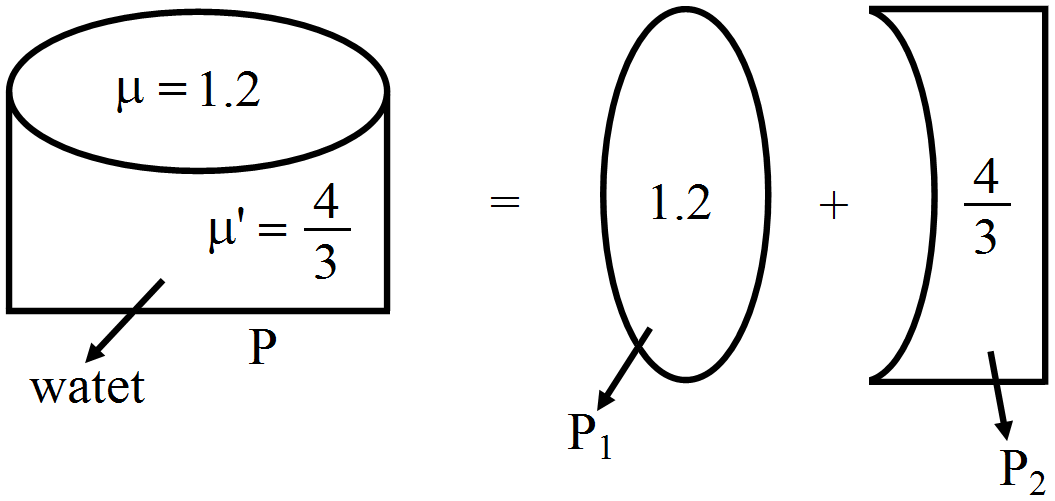

A convex lens is made of a material having refractive index $1.2.$ Both the surfaces of the lens are convex. If it is dipped into water $(\mu=1.33),$ it will behave like:
  • A
    $A$ convergent lens.
  • ✓
    $A$ divergent lens.
  • C
    $A$ rectangular slab.
  • D
    $A$ prism.
Answer
Correct option: B.
$A$ divergent lens.

Here $P, P_1, P_2$ are the Power of Lenses.
$P = P_1 + P_2$
$\frac{1}{\text{f}}=\frac{1}{\text{f}_1}=\frac{1}{\text{f}_2}$
$(\mu-1)\Big(\frac{2}{\text{R}}\Big)+(\mu'-1)\Big(\frac{-1}{\text{R}}\Big)$
$(1.2-1)\Big(\frac{2}{\text{R}}\Big)-\Big(\frac{4}{3}-1\Big)\Big(\frac{1}{\text{R}}\Big)$
$\frac{1}{\text{f}}=\frac{2}{5\text{R}}-\frac{1}{3\text{R}}$
$\frac{1}{\text{f}}=\frac{6-5}{15\text{R}}$
$\text{f}=15\text{R}$
Focal lenght of combined is positive, but it's magnitude in capair to $f_1 f_2$ is High.
So it will be hare like a divergent lens.
View full question & answer→
MCQ 31 Mark

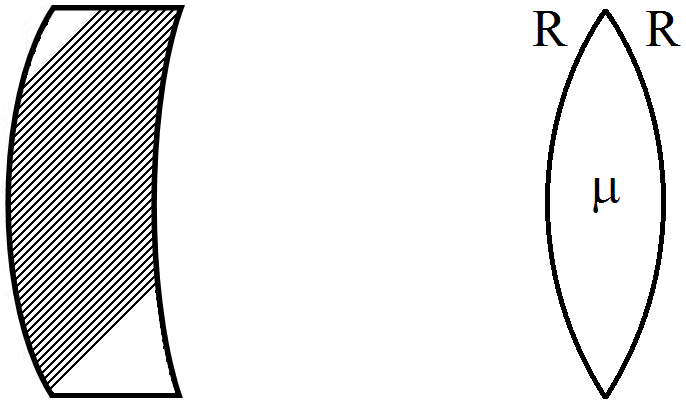

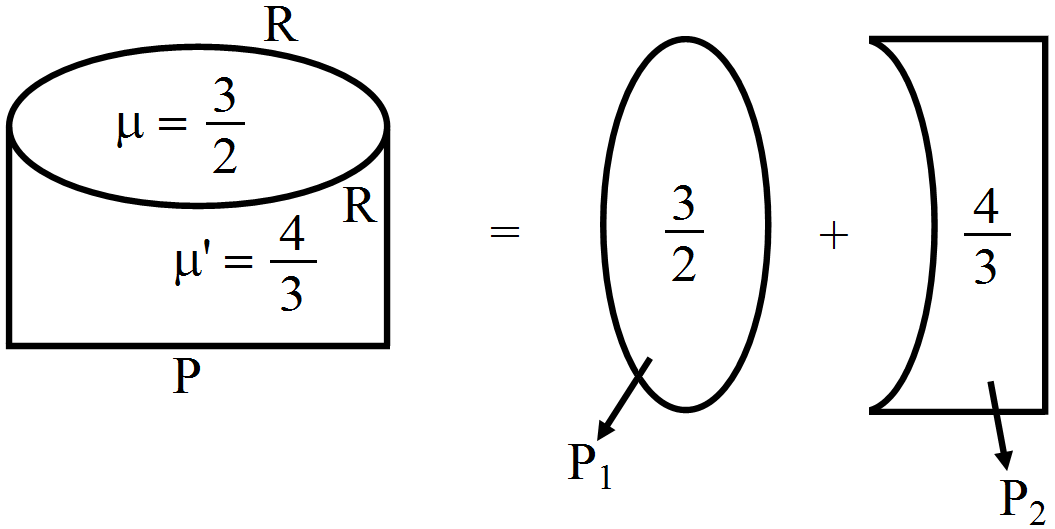

A thin lens is made with a material having refractive index $\mu=1.5.$ Both the sides are convex. It is dipped in water $(\mu=1.33).$ It will behave like:
  • ✓
    A convergent lens.
  • B
    A divergent lens.
  • C
    A rectangular slab.
  • D
    A prism.
Answer
Correct option: A.
A convergent lens.

Here $P, P_1 P_2$ are the power of Lenses.
$P = P_1 + P_2$
$\frac{1}{\text{f}}=\frac{1}{\text{f}_1}+\frac{1}{\text{f}_2}$
$=(\mu-1)\Big(\frac{2}{\text{R}}\Big)+(\mu\ '-1)\Big(\frac{-1}{\text{R}}\Big)$
$=\Big(\frac{3}{2}-1\Big)\Big(\frac{2}{\text{R}}\Big)-\Big(\frac{4}{3}-1\Big)\Big(\frac{1}{\text{R}}\Big)$
$\frac{1}{\text{f}}=\frac{1}{\text{R}}-\frac{1}{3\text{R}}$
$\frac{1}{\text{f}}=\frac{3-1}{3\text{R}}$
$\text{f}=\frac{3\text{R}}{2}$
focal length of combined is positive means it will behave like a canvergent lens.
View full question & answer→
Question 41 Mark
A double convex lens has two surfaces of equal radii R and refractive index $\mu=1.5$ We have,
  1. $\text{f}=\frac{\text{R}}{2}$
  2. $\text{f}=\text{R}$
  3. $\text{f}=-\text{R}$
  4. $\text{f}=2\text{R}$
Answer
  1. $\text{f}=\text{R}$
Explanation:

$\Rightarrow\frac{1}{\text{f}}=(\mu-1)\Big(\frac{1}{\text{R}_1}-\frac{1}{\text{R}_2}\Big)$
$\Rightarrow\frac{1}{\text{f}}=\Big(\frac{3}{2}-1\Big)\Big(\frac{1}{\text{R}}-\Big(-\frac{1}{\text{R}}\Big)\Big)$
$\frac{1}{\text{f}}=\frac{1}{\text{R}}$
$\text{f}=\text{R}$
View full question & answer→
MCQ 51 Mark

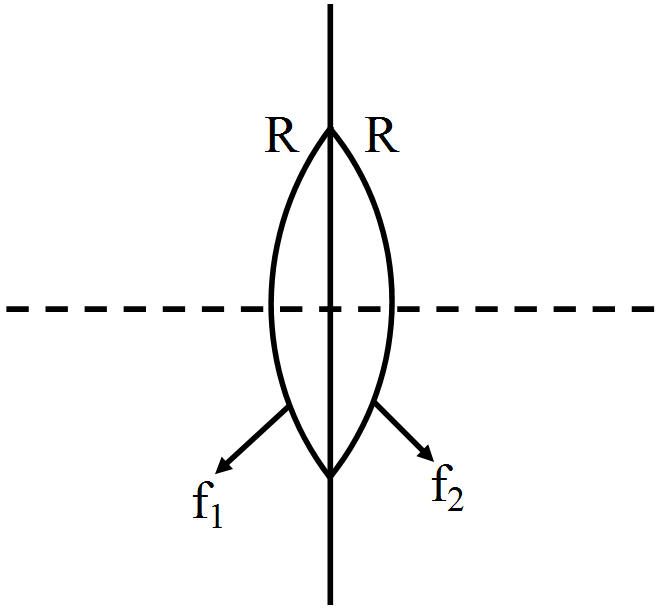

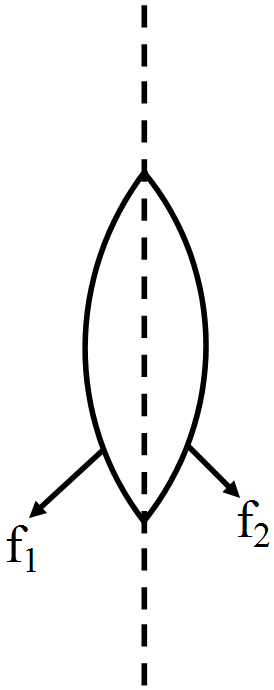

A symmetric double convex lens is cut in two equal parts by a plane containing the principal axis. If the power of the original lens was $4D,$ the power of a divided lens will be$:$
  • A
    $2D$
  • B
    $3D$
  • ✓
    $4D$
  • D
    $5D$
Answer
Correct option: C.
$4D$

Before cut
$\frac{1}{\text{f}}=(\mu-1)\Big(\frac{2}{\text{R}}\Big)=4\text{D}$
After cut
$\frac{1}{\text{f}_1}=(\mu-1)\Big(\frac{1}{\text{R}}\Big)=\text{P}_1$
$\ \frac{1}{\text{f}_2}=(\mu-1)\Big(\frac{1}{\text{R}}\Big)=\text{P}_2$
Power of a divided lens will be $= P_1 + P_2$
$=(\mu-1)\Big(\frac{2}{\text{R}}\Big)$
$=4\text{D}$
View full question & answer→
Question 61 Mark

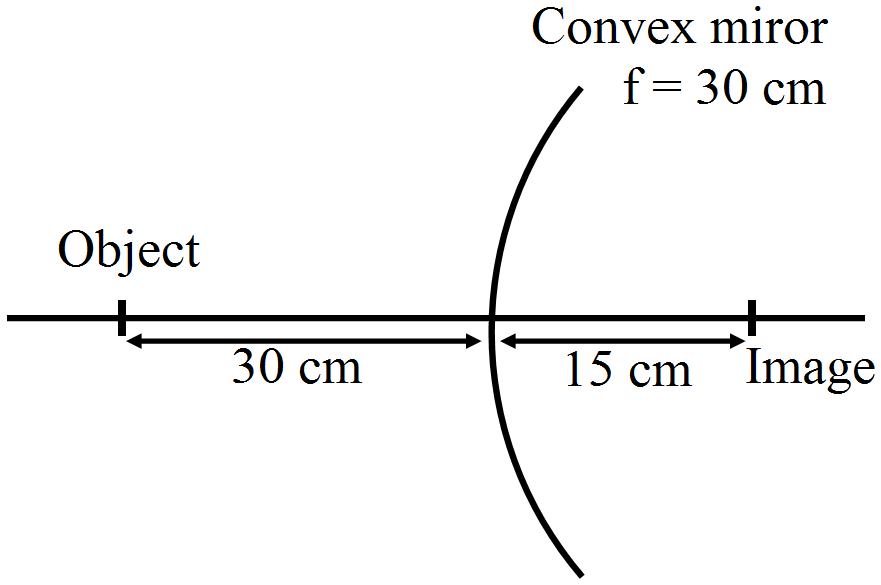

A point object is placed at a distance of 30cm from a convex mirror of focal length 30cm. The image will form at:
  1. Infinity.
  2. Pole.
  3. Focus.
  4. 15cm behind the mirror.
Answer
  1. Infinity.
Explanation:
By mirror formula:
$\frac{1}{\text{V}}+\frac{1}{\text{u}}=\frac{1}{\text{f}}$
Here u = -30cm
f = +30cm
So, $\frac{1}{\text{V}}-\frac{1}{30}=\frac{1}{30}$
Þ v= 15cm behind the mirror.
View full question & answer→
Question 71 Mark

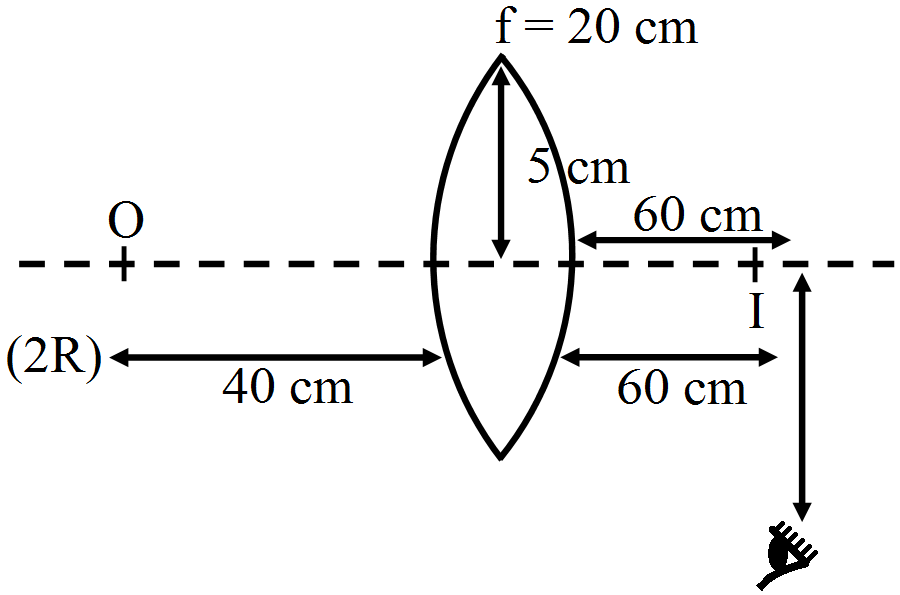

A point object O is placed on the principal axis of a convex lens of focal length f = 20cm at a distance of 40cm to the left of it. The diameter of the lens is 10cm. An eye is placed 60cm to right of the lens and a distance h below the principal axis. The maximum value of h to see the image is:
  1. 0
  2. 2.5cm
  3. 5cm
  4. 10cm.
Answer
  1. 2.5cm
Explanation:

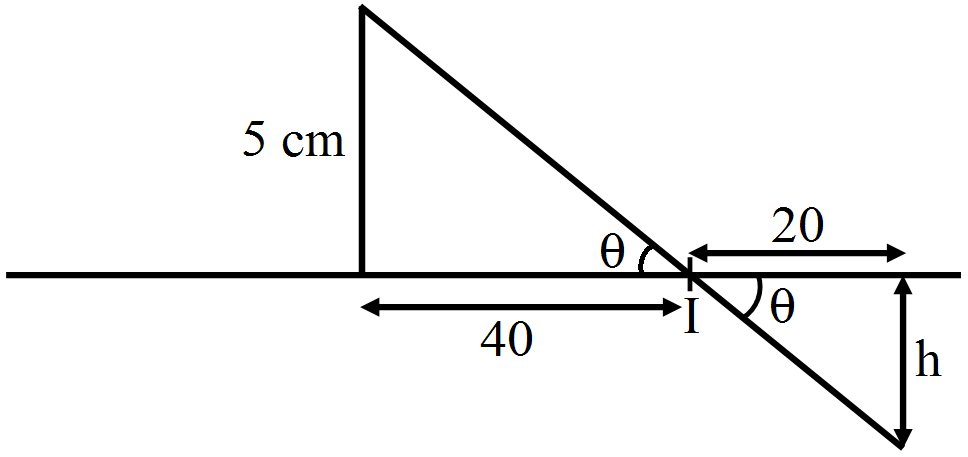

$\tan\theta=\frac{5}{40}=\frac{\text{h}}{20}$
$\text{h}=\frac{5}{2}=\frac{\text{h}}{20}$
$\text{h}=\frac{5}{2}=2.5\text{cm}$
The maximum value of "h =2.5cm" to see the Image of the object.
View full question & answer→
Question 81 Mark

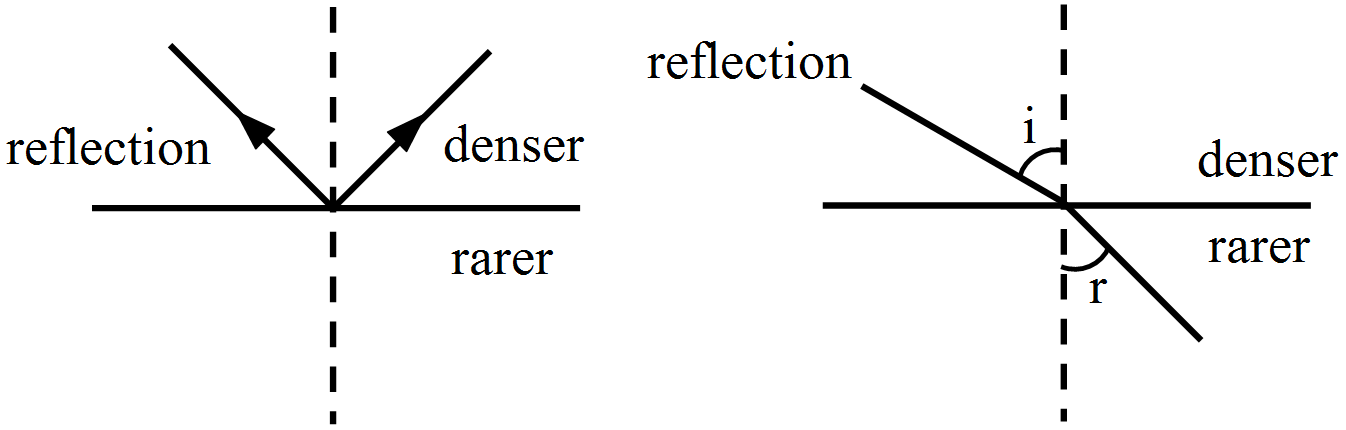

Total internal reflection can take place only if:
  1. Light goes from optically rarer medium $($smaller refractive index$)$ to optically denser medium.
  2. Light goes from optically denser medium to rarer medium.
  3. The refractive indices of the two media are close to each other.
  4. The refractive indices of the two media are widely different.
Answer

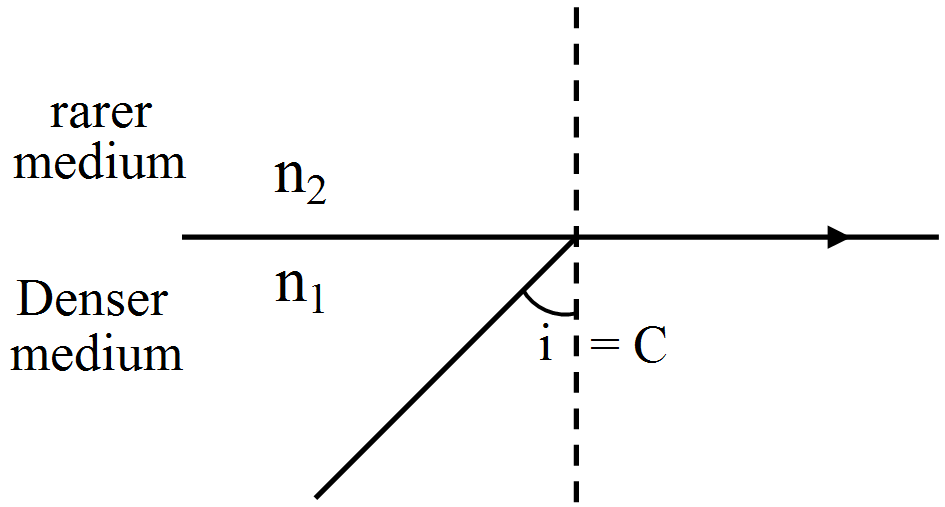

$\text{T.I.R}. ($Total Internal reflection$)i < C ($condition for $\text{T.I.R})$
By Snell's Law
$\text{n}_1\sin\text{i}=\text{n}_2\sin90^{\circ}$
$\sin\text{i}=\frac{\text{n}_2}{\text{n}_1}=\sin\text{C}$
$\text{þ} \ \text{C}=\sin^{-1}$
$\because \ -1\leq\sin\text{i}\leq1$
$n_1 > n_2 ($so we can conclude that light goes from optically denser medium to rarer medium incident angle is greater than the critical angle.$)$
View full question & answer→
Question 91 Mark

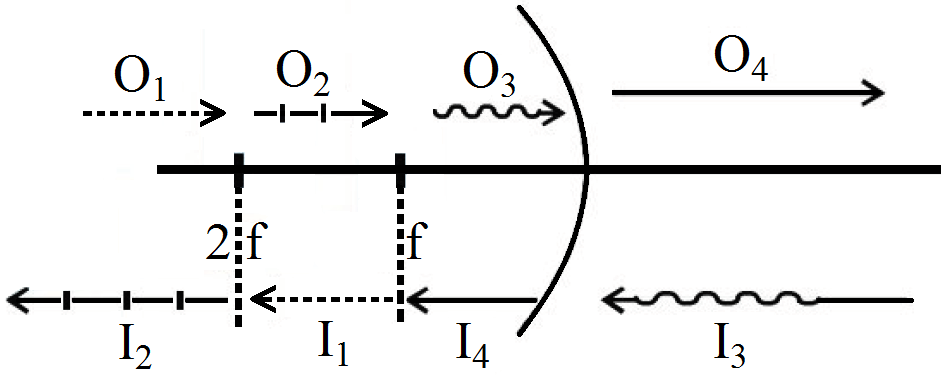

The image of an extended object, placed perpendicular to the principal axis of a mirror, will be erect if:
  1. The object and the image are both real.
  2. The object and the image are both virtual.
  3. The object is real but the image is virtual.
  4. The object is virtual but the image is real.
Answer
  1. The object is real but the image is virtual.
  2. The object is virtual but the image is real.
Explanation:

$\text{m}=\frac{-\text{v}}{\mu}=\frac{\text{h}_1}{\text{h}_0}$ (for mirror)
Image will be erect mean height of the object and Image will e lies in same side. It mean if object isreal then Image in virtual. If object is virtula then Image is real.
View full question & answer→
Question 101 Mark

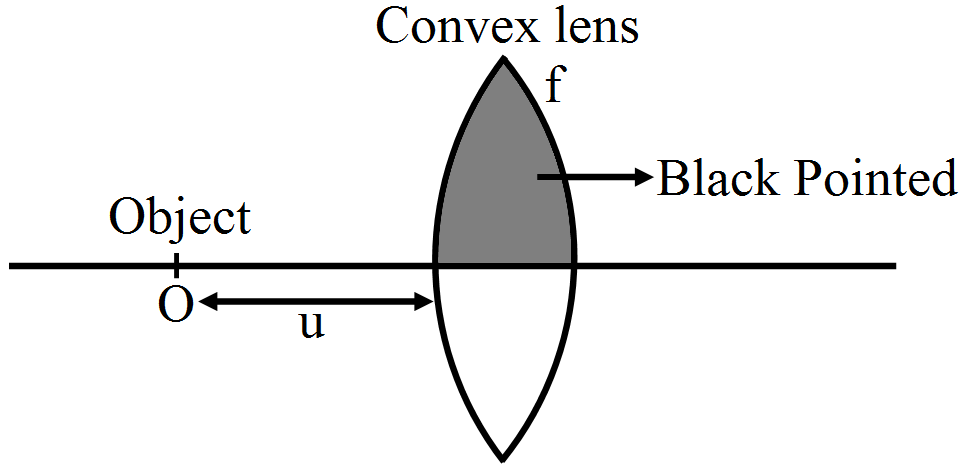

A convex lens forms a real image of a point object placed on its principal axis. If the upper half of the lens is painted black:
  1. The image will be shifted downward.
  2. The image will be shifted upward.
  3. The image will not be shifted.
  4. The intensity of the image will decrease.
Answer
  1. The image will not be shifted.
  2. The intensity of the image will decrease.
Explanation:

By lens formula
$\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{f}}$
Due to Black Pointed focal Lenght of the Lens will not change.
So Image will not be shifted due to Black point. But Intensily of Image will decrease.
View full question & answer→
Question 111 Mark

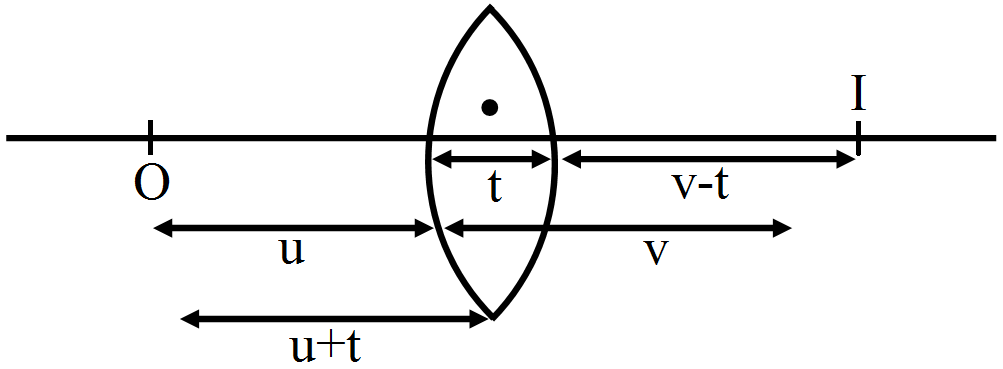

Four modifications are suggested in the lens formula to include the effect of the thickness t of the lens. Which one is likely to be correct?
  1. $\frac{1}{\text{v}}-\frac{1}{\text{u}}=\frac{1}{\text{uf}}$
  2. $\frac{1}{\text{v}^2}-\frac{1}{\text{u}}=\frac{1}{\text{f}}$
  3. $\frac{1}{\text{v}-\text{t}}-\frac{1}{\text{u}+\text{t}}=\frac{1}{\text{f}}$
  4. $\frac{1}{\text{v}}-\frac{1}{\text{u}}+\frac{\text{t}}{\text{uv}}=\frac{\text{t}}{\text{f}}$
Answer
  1. $\frac{1}{\text{v}-\text{t}}-\frac{1}{\text{u}+\text{t}}=\frac{1}{\text{f}}$
Explanation:
View full question & answer→
Question 121 Mark

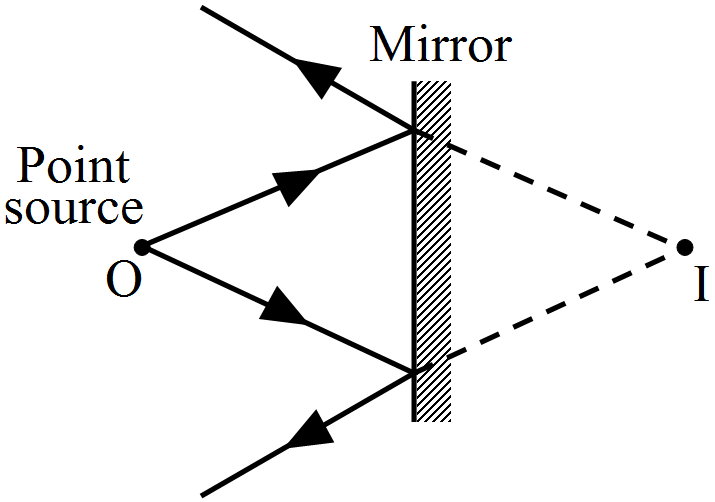

A point source of light is placed in front of a plane mirror:
  1. All the reflected rays meet at a point when produced backward.
  2. Only the reflected rays close to the normal meet at a point when produced backward.
  3. Only the reflected rays making a small angle with the mirror, meet at a point when produced backward.
  4. Light of different colours make different images.
Answer
  1. All the reflected rays meet at a point when produced backward.
Explanation:
​​​​​​​
View full question & answer→
MCQ 131 Mark

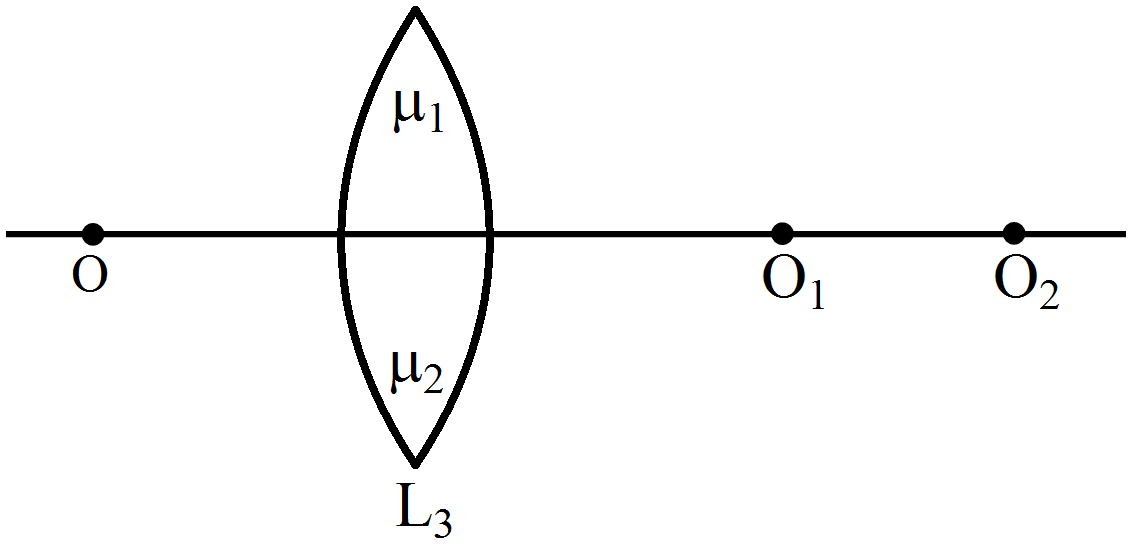

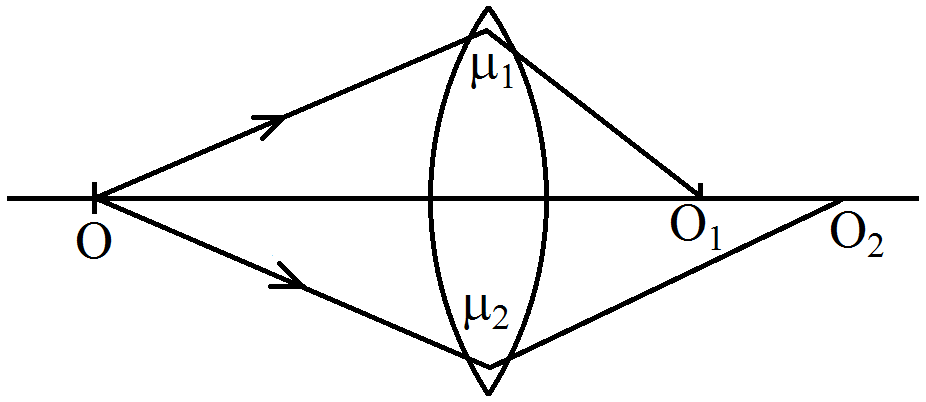

Consider three converging lenses $ L_1, L_2$ and $L_3 $ having identical geometrical construction. The index of refraction of $ L_1$ and $L_2$ are $\mu_1$ and $\mu_2$ respectively. The upper half of the lens $L_3$ has a refractive index $\mu_1$ and the lower half has $\mu_2$. A point object $O$ is imaged at $O_1$ by the lens $L_1$ and at $O_2$ by the lens $L_2 $ placed in same position. If $L_3$ is placed at the same place:
  • A
    There will be an image at $O_1$
  • B
    There will be an image at $O_2$
  • ✓
    The only image will form somewhere between $O_1$ and $O_2$
  • D
    The only image will form away from $O_2$
Answer
Correct option: C.
The only image will form somewhere between $O_1$ and $O_2$

It rays are Passing through $m_1$ then Image will be form at $"O_1"$ and If rays are Passing through $m_2$ then Image will be form at $"O_2".$
View full question & answer→
MCQ 141 Mark

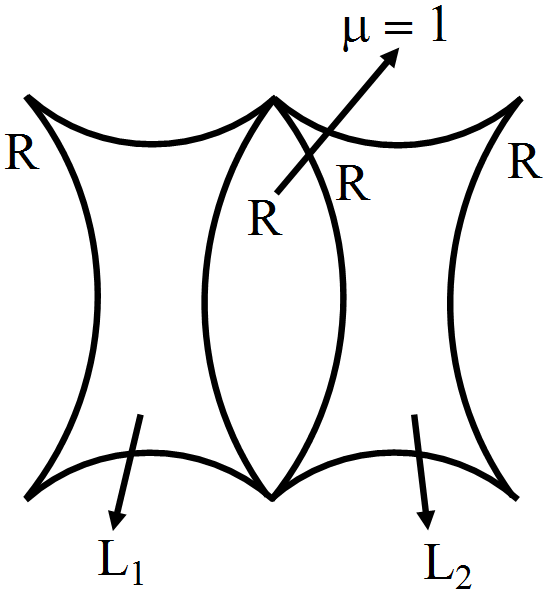

Two concave lenses $L_1$ and $L_2$ are kept in contact with each other. If the space between the two lenses is filled with a material of refractive index $\mu\approx1,$ the magnitude of the focal length of the combination:
  • A
    Becomes undefined.
  • ✓
    Remains unchanged.
  • C
    Increases.
  • D
    Decreases.
Answer
Correct option: B.
Remains unchanged.

$\frac{1}{\text{f}}=\frac{1}{\text{f}_{\text{L}_1}}+\frac{1}{\text{f}_{\text{L}_2}}$
$\frac{1}{\text{f}_{\text{L}_1}}=(\mu-1)\Big(\frac{-2}{\text{R}}\Big)=\frac{1}{\text{f}_{\text{L}_2}}$
Local length of the combination.
$\frac{1}{\text{f}}=(\mu-1)\Big(\frac{-2}{\text{R}}\Big)+(\mu-1)\Big(\frac{-2}{\text{R}}\Big)$
$\frac{1}{\text{f}}=-4(\mu-1)\Big(\frac{1}{\text{R}}\Big)$
$\text{f}=\frac{\text{R}}{4(\mu-1)}$
Where $\text{f}_{\text{L}_1}=\text{f}_{\text{L}_2}=\frac{\text{R}}{2(\mu-1)}$
$(\text{f}_{\text{L}_1}=\text{f}_{\text{L}_2})>\text{f}$
View full question & answer→
Question 151 Mark
If the light moving in a straight line bends by a small but fixed angle, it may be a case of:
  1. Reflection.
  2. Refraction.
  3. Diffraction.
  4. Dispersion.
Answer
  1. Reflection.
  2. Refraction.
Explanation:
When the light strikes on a surface nearly parallel to it, it then bends by a small and fixed angle after reflection. Also, when the light travels from one medium to another with slight differences in their refractive indices, it bends by a small angle. Thus, the bending of light by a small but fixed angle can be the case of either reflection or refraction.
View full question & answer→
Question 161 Mark

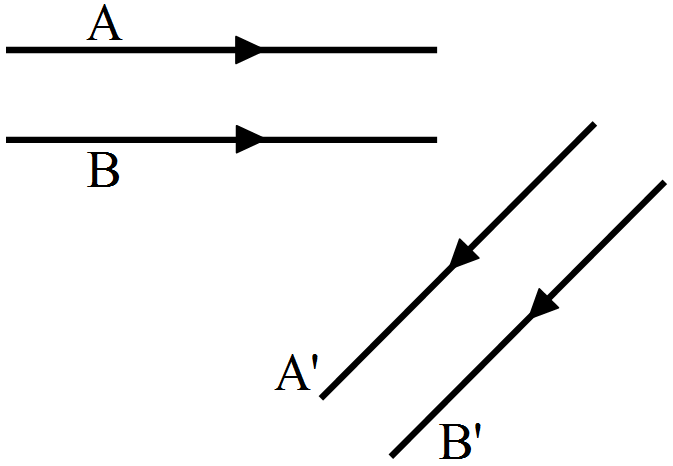

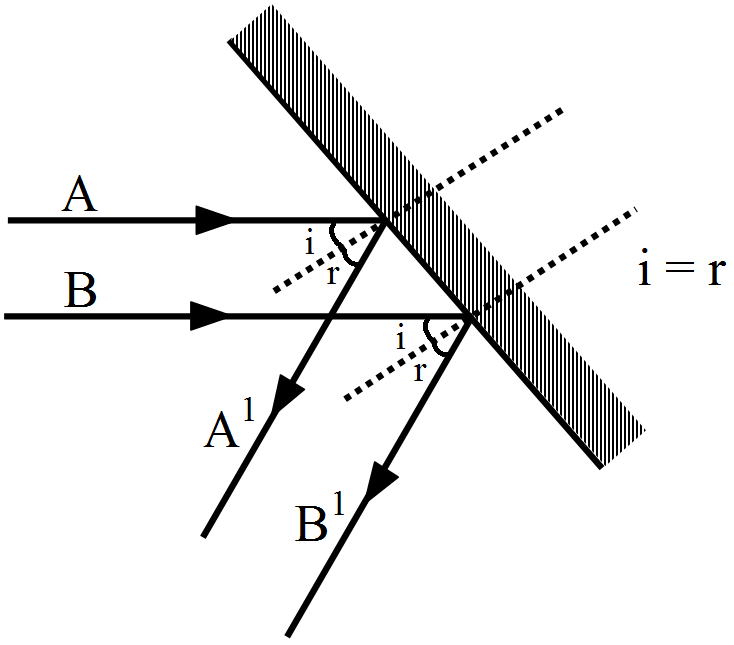

Two rays A and B being reflected by a mirror and going as A' and B'. The mirror:
  1. Is plane.
  2. Is convex.
  3. Is concave.
  4. May be any spherical mirror.
Answer
  1. Is plane.
Explanation:

Here initially A & B is parallel to each other after reflection by teh plane mirror A' & B' goes Parallel to each other.
View full question & answer→
Question 171 Mark

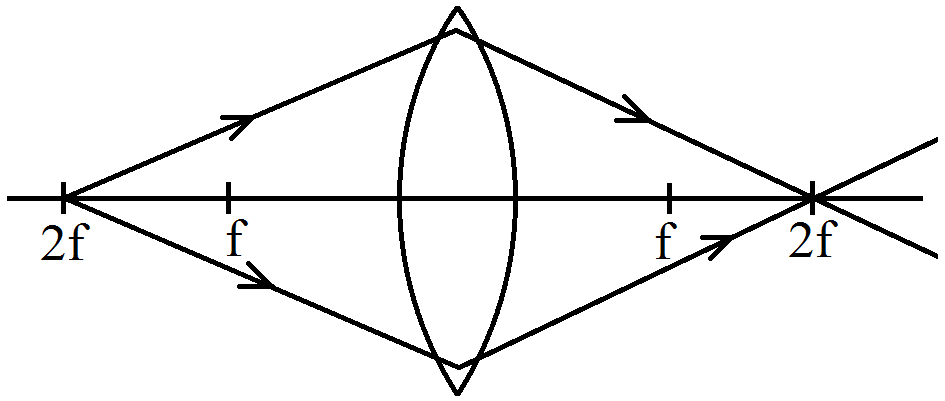

A screen is placed a distance 40cm away from an illuminated object. A converging lens is placed between the source and the screen and it is attempted to form the image of the source on the screen. If no position could be found, the focal length of the lens:
  1. Must be less than 10cm.
  2. Must be greater than 20cm.
  3. Must not be greater than 20cm.
  4. Must not be less than 10cm.
Answer
  1. Must be greater than 20cm.
Explanation:
$\text{v}=(40-4)$
$\frac{1}{\text{f}}=\frac{1}{40-4}-\frac{1}{(-\text{u})}$
$\frac{\text{df}}{\text{du}}=0$ for f minimum.
$\frac{\text{df}}{\text{du}}=1-\frac{\text{u}}{20}=0$
$\text{u}=20$
$\text{f}_{\text{min}}=10\text{cm}$
View full question & answer→
Question 181 Mark
Mark the correct options:
  1. If the incident rays are converging, we have a real object.
  2. If the final rays are converging, we have a real image.
  3. The image of a virtual object is called a virtual image.
  4. If the image is virtual, the corresponding object is called a virtual object.
Answer
  1. If the final rays are converging, we have a real image.
Explanation:
This is because a real image is formed by converging reflected/ refracted rays from a mirror/ lens.
View full question & answer→
Question 191 Mark
Two rays A and B being reflected by a mirror and going as A' and B'. The mirror:
  1. Is plane.
  2. Is convex.
  3. Is concave.
  4. May be any spherical mirror.
Answer
  1. Is plane.
Explanation:

Here initially A & B is parallel to each other after reflection by teh plane mirror A' & B' goes Parallel to each other.
View full question & answer→
Question 201 Mark
The rays of different colours fail to converge at a point after going through a converging lens. This defect is called:
  1. Spherical aberration.
  2. Distortion.
  3. Coma.
  4. Chromatic aberration.
Answer
  1. Chromatic aberration.
Explanation:
The rays of different colours fail to converge at a Point after going through a converging Lens. This defect is called chromatic oberration.
View full question & answer→
Question 211 Mark
Which of the following (referred to a spherical mirror) do (does) not depend on whether the rays are paraxial or not?
  1. Pole.
  2. Focus.
  3. Radius of curvature.
  4. Principal axis.
Answer
  1.  Pole.
  2. Focus.
  1. Principal axis.
Explanation:
If Paraxial rays comes to parallel to the spherical mirror is pasees to the Focus of the spherical mirror.
View full question & answer→
Question 221 Mark
In image formation from spherical mirrors, only paraxial rays are considered because they:
  1. Are easy to handle geometrically.
  2. Contain most of the intensity of the incident light.
  3. Form nearly a point image of a point source.
  4. Show minimum dispersion effect.
Answer
  1. Form nearly a point image of a point source.
Explanation:
In Image formation from spherical mirrors, only paraxial rays are considered because they form nearly a point Image of a point source. Angle of Incidence of Paraxial rays is very small.
View full question & answer→
MCQ 231 Mark
The image formed by a concave mirror :
  • A
    Is always real.
  • B
    Is always virtual.
  • ✓
    Is certainly real if the object is virtual.
  • D
    Is certainly virtual if the object is real.
Answer
Correct option: C.
Is certainly real if the object is virtual.
Object
$O_1$ $I_1$
$O_2$ $I_2$
$O3$ $I_3$
$O_4$ $I_4$
Here $O_4$ is virtual oblect $I_4$ is real image.
View full question & answer→
Question 241 Mark
A parallel beam of light is incident on a converging lens parallel to its principal axis. As one moves away from the lens on the other side on its principal axis, the intensity of light:
  1. Remains, constant.
  2. Continuously increases.
  3. Continuously decreases.
  4. First increases then decreases.
Answer
  1. First increases then decreases.
Explanation:

The intensity o light is first increases then decreases.
View full question & answer→
MCQ 251 Mark
A symmetric double convex lens is cut in two equal parts by a plane perpendicular to the principal axis. If the power of the original lens was $4D,$ the power of a cutlens will be:
  • ✓
    $2D$
  • B
    $3D$
  • C
    $4D$
  • D
    $5D$
Answer
Correct option: A.
$2D$

Before cut $\frac{1}{\text{f}}=(\mu-1)\Big(\frac{2}{\text{R}}\Big)=4\text{D} \ ...(1)$
After cut $\frac{1}{\text{f}_1}=(\mu-1)\Big(\frac{1}{\text{R}}\Big)+\frac{1}{\text{f}_2}=(\mu-1)\Big(\frac{1}{2}\Big) \ ...(2)$
From eq. $(1)$ we get Power of $f_1 =$ power of $f_2$
$\text{P}=\frac{1}{\text{f}_1}=\frac{1}{\text{f}_2}=2\text{D}$
View full question & answer→
Question 261 Mark
A point source of light is placed at a distance, of 2f from a converging lens of focal length f. The intensity on the other side of the lens is maximum at a distance:
  1. f
  2. between f and 2
  3. 2f
  4. more than 2f.
Answer
  1. 2f
Explanation:

The Intensity on the other side of the lans is maximum at a distance 2f.
View full question & answer→
Generate Paper FreeAll Geometrical Optics topics
