Thermal and Chemical Effect of Current Physics - Thermal and Chemical Effect of Current

Rajasthan Board (RBSE) - STD 12 Science - Physics (Rajasthan - English Medium). 32 questions in this chapter.

Question types

Thermal and Chemical Effect of Current question types

32 questions across 4 question groups — pick any mix to generate a Physics paper with step-by-step answer keys.

32
Questions
4
Question groups
5
Question types
Sample Questions

Thermal and Chemical Effect of Current questions

One sample from each question group in this chapter. Select any group above to see the full set with answer keys.

Q 11 Marks Question1 Mark

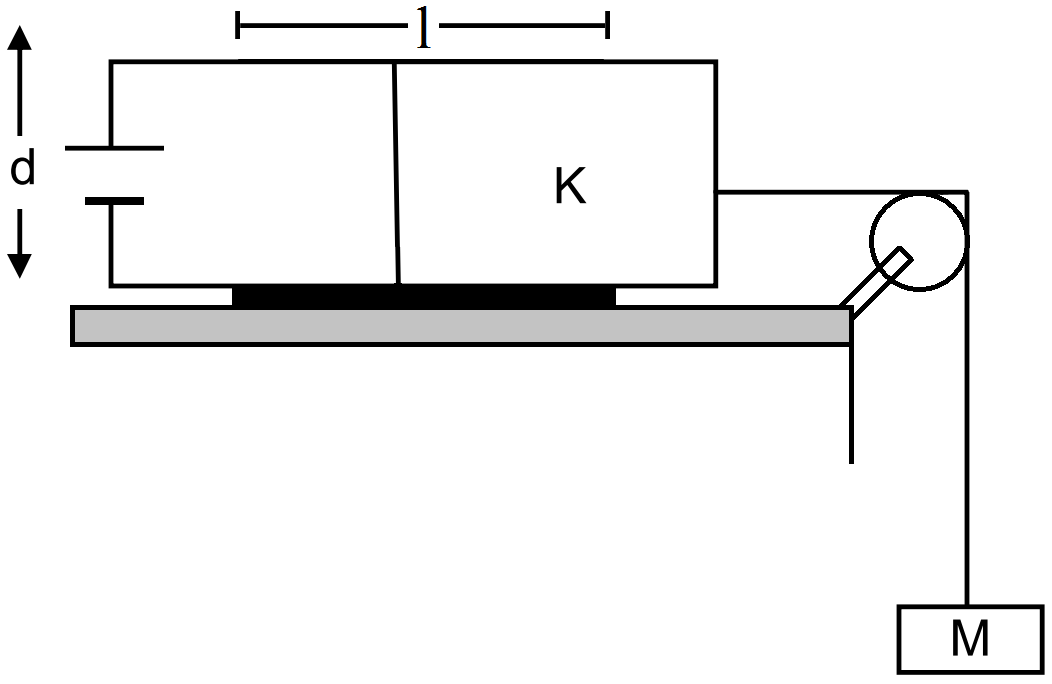

Consider the situation shown in figure. The width of each plate is b. The capacitor plates are rigidly clamped in the laboratory and connected to a battery of emf $\epsilon.$ All surfaces are frictionless. Calculate the value of M for which the dielectric slab will stay in equilibrium.
View full solution →
Q 22 Marks Questions2 Marks
Find the amount of silver liberated at cathode if $0.500A$ of current is passed through $AgNO_3$ electrolyte for $1$ hour. Atomic weight of silver a $107.9\ g/mole.$
View full solution →
Q 32 Marks Questions2 Marks
Find the thermo-emf developed in a copper$-$silver thermocouple when the junctions are kept at $0^\circ C$ and $40^\circ C$. Use the data in table.

Metal with
$a$
$b$
lead $(Pb)$
$\mu\text{V}/^\circ\text{C}$
$\mu\text{V}/^\circ(\text{C})^2$
Aluminium
 $-0.47$ $0.003$
Bismuth
 $-43.7$ $-0·47$
Copper
 $2.76$ $0·012$
Gold
 $2.90$ $0.0093$
Iron
 $16.6$ $-0.030$
Nickel
 $19.1$ $-0.030$
Platinum
 $-1.79$ $-0.035$
Silver
 $2.50$ $0.012$
Steel
 $10.8$ $-0.016$

View full solution →
Q 42 Marks Questions2 Marks
Find the neutral temperature and inversion temperature of a copper-iron thermocouple if the reference junction is kept at $0^\circ C.$ Use the data in the table.

Metal with
$a$
$b$
lead $(Pb)$
$\mu\text{V}/^\circ\text{C}$
$\mu\text{V}/^\circ(\text{C})^2$
Aluminium
 $-0.47$ $0.003$
Bismuth
 $-43.7$ $-0·47$
Copper
 $2.76$ $0·012$
Gold
 $2.90$ $0.0093$
Iron
 $16.6$ $-0.030$
Nickel
 $19.1$ $-0.030$
Platinum
 $-1.79$ $-0.035$
Silver
 $2.50$ $0.012$
Steel
 $10.8$ $-0.016$

View full solution →
Q 52 Marks Questions2 Marks
As temperature increases, the viscosity of liquids decreases considerably. Will this decrease the resistance of an electrolyte as the temperature increases?
View full solution →
Q 62 Marks Questions2 Marks
A brass plate having surface area $200\ cm^2$ on one side is electroplated with $0.10\ mm$ thick silver layers on both sides using a $15A$ current. Find the time taken to do the job. The specific gravity of silver is $10.5$ and its atomic weight is $107.9\ g/mol.$
View full solution →
Q 83 Marks Question3 Marks
A plate of area $10\ cm^2$ is to be electroplated with copper $($density $9000\ kg/m^3)$ to a thickness of $10$ micrometres on both sides, using a cell of $12V$. Calculate the energy spent by the cell in the process of deposition. If this energy is used to heat $100g$ of water, calculate the rise in the temperature of the water. $\text{ECE}$ of copper $= 3 \times 10^{-7}\ kg \ C^{-1}$ and specific heat capacity of water $= 4200J\ kg^{-1}.$
View full solution →
Q 93 Marks Question3 Marks
A coil of resistance $100\Omega$ is connected across a battery of emf $6.0V$. Assume that the heat developed in the coil is used to raise its temperature. If the heat capacity of the coil is $4.0J/K,$ how long will it take to raise the temperature of the coil by $15^\circ C$?
View full solution →
Q 113 Marks Question3 Marks
An electric bulb, when connected across a power supply of 220V, consumes a power of 60W. If the supply drops to 180V, what will be the power consumed? If the supply is suddenly increased to 240V, what will be the power consumed?
View full solution →
Q 125 Marks Questions5 Marks
A servo voltage stabiliser restricts the voltage output to $220V ± 1\%$. If an electric bulb rated at $220V, 100W$ is connected to it, what will be the minimum and maximum power consumed by it?
View full solution →
Q 135 Marks Questions5 Marks
The coil of an electric bulb takes 40 watts to start glowing. If more than 40W is supplied, 60% of the extra power is converted into light and the remaining into heat. The bulb consumes 100W at 220V. Find the percentage drop in the light intensity at a point if the supply voltage changes from 220V to 200V.
View full solution →
Q 145 Marks Questions5 Marks
A bulb with rating $250V, 100W$ is connected to a power supply of $220V$ situated $10m$ away using a copper wire of area of cross$-$section $5\ mm^2.$ How much power will be consumed by the connecting wires? Resistivity of copper $1.7\times10^{-8}\Omega-\text{m}$.
View full solution →
Q 165 Marks Questions5 Marks
A heater coil is to be constructed with a nichrome wire $(\rho=1.0\times10^{-6}\Omega-\text{m})$ which can operate at $500W$ when connected to a $250V$ supply.
  1. What would be the resistance of the coil?
  2. If the cross$-$sectional area of the wire $0.5\ mm^2,$ what length of the wire will be needed?
  3. If the radius of each turn is $4.0\ mm,$ how many turns will be there in the coil?
View full solution →
