A (1, 1), B (5, 1), C (4, 2) and D (2, 2) are vertices of a quadrilateral. Name the quadrilateral ABCD. A, B, C, and D are reflected in the origin on to A’, B’, C’ and D’ respectively. Locate A’, B’, C’ and D’ on the graph sheet and write their co-ordinates .
Are D, A, A’ and D’ collinear?
Exercise 12 (B) | Q 12 | Page 171
Download our app for free and get started

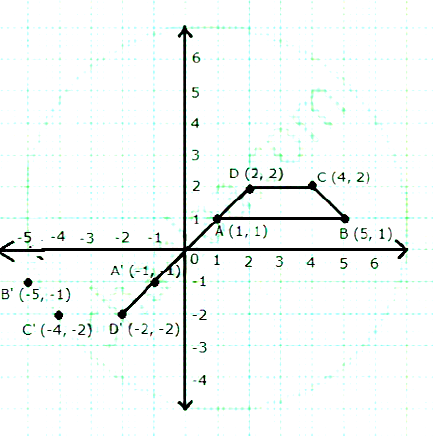

Quadrilateral ABCD is an isosceles trapezium.
Co-ordinates of A’, B’, C’ and D’ are A'(-1, -1), B'(-5, -1), C'(-4, -2) and D'(-2, -2) respectively.
It is clear from the graph that D, A, A’ and D’ are collinear.
