Question
A $15.0 \mu F$ capacitor is connected to a $220 V , 50 Hz$ source. Find the capacitive reactance and the current (rms and peak) in the circuit. If the frequency is doubled, what happens to the capacitive reactance and the current?
✓
Answer
The capacitive reactance is
$
X_C=\frac{1}{2 \pi v C}=\frac{1}{2 \pi(50 Hz )\left(15.0 \times 10^{-6} F \right)}=212 \Omega
$
The rms current is
$
I=\frac{V}{X_C}=\frac{220 V }{212 \Omega}=1.04 A
$
The peak current is
$
i_m=\sqrt{2} I=(1.41)(1.04 A )=1.47 A
$
This current oscillates between $+1.47 A$ and $-1.47 A$, and is ahead of the voltage by $\pi / 2$.
If the frequency is doubled, the capacitive reactance is halved and consequently, the current is doubled.
$
X_C=\frac{1}{2 \pi v C}=\frac{1}{2 \pi(50 Hz )\left(15.0 \times 10^{-6} F \right)}=212 \Omega
$
The rms current is
$
I=\frac{V}{X_C}=\frac{220 V }{212 \Omega}=1.04 A
$
The peak current is
$
i_m=\sqrt{2} I=(1.41)(1.04 A )=1.47 A
$
This current oscillates between $+1.47 A$ and $-1.47 A$, and is ahead of the voltage by $\pi / 2$.
If the frequency is doubled, the capacitive reactance is halved and consequently, the current is doubled.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A gas is enclosed in a cylindrical vessel fitted with a frictionless piston. The gas is slowly heated for some time. During the process, $10J$ of heat is supplied and the piston is found to move out $10\ cm$. Find the increase in the internal energy of the gas. The area of cross section of the cylinder $= 4\ cm^2$ and the atmospheric pressure $= 100\ kPa.$
→Obtain the equation of electric potential energy of a system of two electric charges in external electric field.
A block of mass $2.00\ kg$ moving at a speed of $10.0\ m/s$ accelerates at $3.00\ m/s^2$ for $5.00s.$ Compute its final kinetic energy.

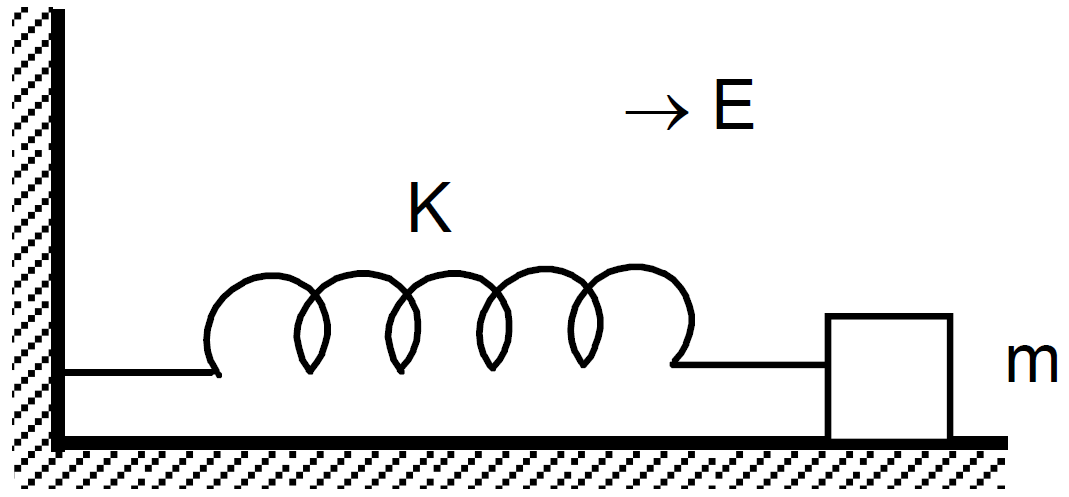

→A block of mass m having a charge q is placed on a smooth horizontal table and is connected to a wall through an unstressed spring of spring constant k as shown in figure. A horizontal electric field E parallel to the spring is switched on. Find the amplitude of the resulting SHM of the block.
