2. Electric potential and capacitance — Physics STD 12 Science — Question

CBSE BoardEnglish MediumSTD 12 SciencePhysics2. Electric potential and capacitance1 Mark
MCQ
A capacitor of capacitance $C$ is charged to a potential difference $V$ from a cell and then disconnected from it. A charge $+Q$ is now given to its positive plate. The potential difference across the capacitor is now $Q$

 if $V < CV$

  • A
    $V$
  • B
    $V + \frac{Q}{C}$
  • ✓
    $V + \frac{Q}{{2C}}$
  • D
    $V - \frac{Q}{C}$ ,
✓

Answer

Correct option: C.
$V + \frac{Q}{{2C}}$
c

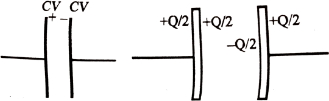

After redistribution half of total charge remains on outer surface and then apply

conservation of charge on each plate.

Charge on outer plates $=\frac{Q+C V-C V}{2}=\frac{Q}{2}$

Charge of innerface of first plate,

$=Q+C V-\frac{Q}{2}=\frac{Q}{2}+C V$

Charge on innerface of second plate $=-\left(\frac{Q}{2}+C V\right)$

$V^{\prime}=\frac{Q / 2+C V}{C}=V+\frac{Q}{2 C}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 2. Electric potential and capacitance→2. Electric potential and capacitance — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

The equivalent resistance of resistors connected in series is always
→
If the ionisation potential of helium atom is 24.6 volt, the energy required to ionise it will be
→
The two plates $X $ and $Y$ of a parallel plate capacitor of capacitance $C$ are given a charge of amount $Q$ each. $X$ is now joined to the positive terminal and $Y$ to the negative terminal of a cell of $emf$ $E = Q/C$.
→
Assertion : Coloured spectrum is seen when we look through a muslin cloth.
Reason : It is due to the diffraction of white light on passing through fine slits.
→

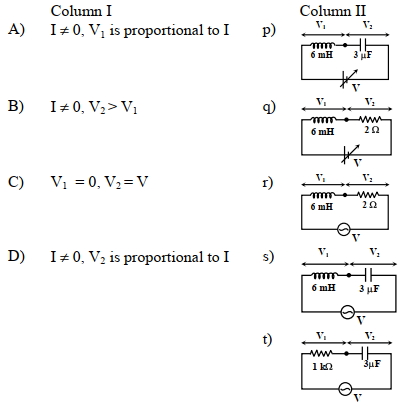

You are given many resistances, capacitors and inductors. These are connected to a variable $DC$ voltage source (the first two circuits) or an $\mathrm{AC}$ voltage source of $50 \mathrm{~Hz}$ frequency (the next three circuits) in different ways as shown in Column $II$. When a current $I$ (steady state for $DC$ or rms for $AC$) flows through the circuit, the corresponding voltage $\mathrm{V}_1$ and $\mathrm{V}_2$. (indicated in circuits) are related as shown in Column $\mathrm{I}$. Match the two
