Question
A Carnot engine is working between ice point and steam point. It is desired to increase its efficiency by 20% (a) by changing temperature of hot reservoir alone, (b) by changing temperature of colder reservoir only. Calculate the change in temperature in each case.
✓

Answer

Here, T1 = 100°C = 373K and T2 = 0°C = 273K

$\eta=\frac{\text{T}_1-\text{T}_2}{\text{T}_1}=\frac{373-273}{373}$

$=\frac{100}{373}=0.268$

As we want to increase its efficiency by 20%, hence new efficiency is,

$\eta'=26.\%+20\%=46.8\%$

  1. If keeping temperature of colder reservoir fixed the temperature of hot reservoir is changed to $\text{T}_1'$ then

$46.8=\frac{\text{T}_1'-273}{\text{T}'_1}\times100$

$\Rightarrow46.8\text{T}_1'=100$

$\text{T}_1'-27300$

$\Rightarrow53.2\text{T}'_2=27300$ or $\frac{27300}{53.2}=\text{513.2}\text{K}$

$\therefore\text{T}_1'-\text{T}_1=513.2-373=140.2\text{K}$

It means that temprature of hot resevoir be raised by 140.2K

  1. If keeping temperature of hot reservoir fixed, the temperature of colder reservoir is changed to $\text{T}_2',$ then

$46.8=\frac{\text{T}_1-\text{T}_2'}{\text{T}_1}\times100$

$=\frac{373-\text{T}'_2}{373}\times100$

$\therefore373\times46.8=373\times100-100\text{T}_2'$

$\Rightarrow100\text{T}_2'=373\times(100-46.8)$

$=373\times53.2$

$\Rightarrow\text{T}'_2=\frac{373-53.2}{100}=198.4\text{K}$

$\therefore\text{T}_2-\text{T}_2'=273-198.4$

$=74.6\text{K}=74.6^\circ\text{C.}$

It means that temparture of colder reservoir be lowered by 74.6°C.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Thermodynamics→Thermodynamics — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

A body of mass 2kg is lying on a rough inclined plane of inclination 30°. Find the magnitude of the force parallel to the incline needed to make the block move:
  1. Up the incline
  2. Down the incline. Coefficient of static friction = 0.2.
→
A uniform ladder of length 10.0m and mass 16.0kg is resting against a vertical wall making an angle of 37° with it. The vertical wall is frictionless but the ground is rough. An electrician weighing 60.0kg climbs up the ladder. If he stays on the ladder at a point 8.00m from the lower end, what will be the normal force and the force of friction on the ladder by the ground? What should be the minimum coefficient of friction for the elctrician to work safely?
→
Answer the following:
What is the temperature of the triple-point of water on an absolute scale whose unit interval size is equal to that of the Fahrenheit scale?
→

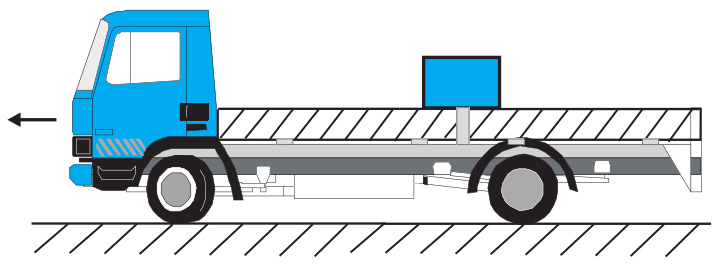

The rear side of a truck is open and a box of 40kg mass is placed 5m away from the open end as shown in Fig. The coefficient of friction between the box and the surface below it is 0.15. On a straight road, the truck starts from rest and accelerates with 2ms-2. At what distance from the starting point does the box fall off the truck? (Ignore the size of the box).

→
