Question
A cell whose electromotive force is 2 volt and internal resistance 0.1 is joined with an external resistance of 3,9 . Find the terminal voltage of the cell.
✓
Answer
Given that : $ E=2 V $
Internal resistance of the cell,
$r=0.1 \Omega$ and $R =3.9 \Omega$
Current voltage of the cell,
$ I=\frac{E}{R+r} $
Putting the value
$I=\frac{2}{3.9+0.1}=\frac{2}{4}=\frac{1}{2}=0.5 A$
Terminal voltage of the cell,
$V = E - Ir =2-0.5 \times 0.1$
$=2-0.05=1.95 V$
or $V = IR =0.5 \times 3.9=1.95 V$
Internal resistance of the cell,
$r=0.1 \Omega$ and $R =3.9 \Omega$
Current voltage of the cell,
$ I=\frac{E}{R+r} $
Putting the value
$I=\frac{2}{3.9+0.1}=\frac{2}{4}=\frac{1}{2}=0.5 A$
Terminal voltage of the cell,
$V = E - Ir =2-0.5 \times 0.1$
$=2-0.05=1.95 V$
or $V = IR =0.5 \times 3.9=1.95 V$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
What is the width of the depletion layer of a P-N junction when it is (i) forward biased (ii) reverse biased?
A source of sound with adjustable frequency produces 2 beats per second with a tuning fork when its frequency is either 476Hz or 480Hz. What is the frequency of the tuning fork?
Give an example for which $\overrightarrow{\text{A}}.\overrightarrow{\text{B}}=\overrightarrow{\text{C}}.\overrightarrow{\text{B}}$ but $\overrightarrow{\text{A}}\neq\overrightarrow{\text{C}}.$
→What is the reason, why the diameter of the objective of a telescope should be large for a good resolution?
Explain the sources of electric and magnetic field.

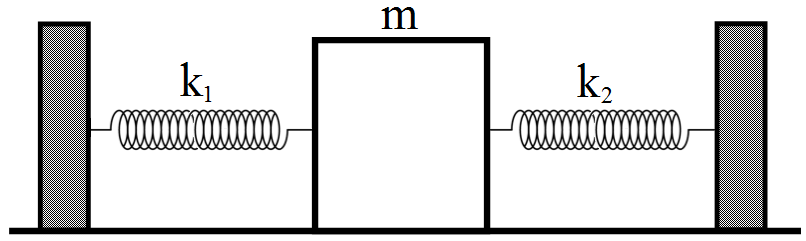

Both the springs shown in figure are unstretched. If the block is displaced by a distance x and released, what will be the initial acceleration?
