Current Electricity — PHYSICS STD 9 — Question

ICSE BoardEnglish MediumSTD 9PHYSICSCurrent Electricity2 Marks
Question
(a) Complete the circuit given in Fig. by inserting between the terminals A and C. an ammeter.

(b) In the diagram, mark the polarity at the terminals of ammeter and indicate clearly the direction of flow of current in the circuit when the circuit is complete.

(c) Name and state the purpose of Rh in the circuit.
✓

Answer

(a) (b)
(c) A rheostat is used to control the current in the circuit.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "[2 Mark Question Answer]" from Current Electricity→Current Electricity — all question types→PHYSICS STD 9 question papers→ICSE Board STD 9 question papers→ICSE Board question paper generator→

Similar questions

A body measures 25 m . State the unit and the magnitude of unit in the statement.
→
Define one newton. What is the ratio of SI to $CGS$ units of force?
→
Write an expression for the pressure at a point inside a liquid. Explain the meaning of the symbols used.
→
A piece of ice floating in a glass of water melts, but the level of water in the glass does not change. Give reasons. Hint: Ice contracts on melting.
→
The figure shows a freely suspended magnet in rest position. Copy the diagram and on it show :
(a) Angle of declination
(b) Angle in dip
→
A charge of 75 C is brought from infinity to a given point in an electric field, when amount of work done is 3.75 J . Calculate the electrical potential at that point.
→
A body experiences an upthrust $F_1$ in river water and $F_2$ in sea water when dipped up to the same level. Which is more, $F _1$ or $F _2$ ? Give reason.
→

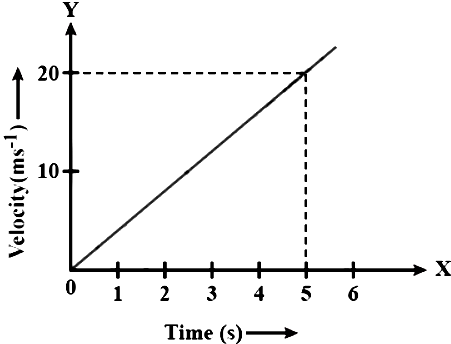

Figure shows the velocity-time graph of a particle of mass 100 g moving in a straight line. Calculate the force acting on the particle.
