A concave lens of focal length 15 cm forms an image 10 cm from the lens. How far is the object placed from the lens? Draw the ray diagram.
Download our app for free and get started
f = -15 cm, v = -10 cm Using lens formula, we have$\frac{1}{\text{f}}=\frac{1}{\text{v}}-\frac{1}{\text{u}}$
$\Rightarrow \ \frac{1}{\text{u}}=\frac{1}{\text{v}}-\frac{1}{\text{f}}$
$\frac{1}{\text{u}}=\frac{1}{-10}-\frac{1}{-15}=\frac{-5}{150}$
$\text{u}=\frac{150}{-5}=-30 \ \text{cm}$

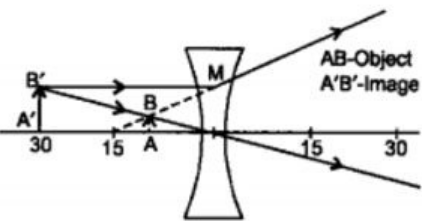

Therefore, the object is placed at 30 cm from the lens. The ray diagram is given as follows:
$\Rightarrow \ \frac{1}{\text{u}}=\frac{1}{\text{v}}-\frac{1}{\text{f}}$
$\frac{1}{\text{u}}=\frac{1}{-10}-\frac{1}{-15}=\frac{-5}{150}$
$\text{u}=\frac{150}{-5}=-30 \ \text{cm}$
Therefore, the object is placed at 30 cm from the lens. The ray diagram is given as follows:
