“A concave mirror of focal length ‘f’ can form a magnified erect as well as an inverted image of an object placed in front of it.” Justify this statement stating the position of the object with respect to the mirror in each case for obtaining these images.
CBSE OUTSIDE DELHI - SET 1 2013
Download our app for free and get started
When the object is placed at a distance less than ‘f’ (focal length) from the mirror, the image formed is virtual, magnified and erect. When the object is placed at a distance of ‘f’ (focal length) from the mirror, the image is real, inverted and highly magnified. When the object is placed at a distance more than (focal length) but less than ‘2f’, the image formed is real, inverted and magnified. When the object is placed at the distance of “If from the mirror, the image is real, inverted and same size of the object. When the object is placed at a distance more than ‘If from the mirror, the image formed is real, inverted and diminished.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionA communications satellite in orbit sends a parallel beam of signals down to earth. If these signals obey the same laws of reflection as light and are to be focussed onto a small receiving aerial, what should be the best shape of the metal 'dish' used to collect them?
- 2View SolutionIdentify the device used as a spherical mirror or lens in following cases, when the image formed is virtual and erect in each case.Object is placed between infinity and device, image formed is diminished and between pole and focus, behind it.

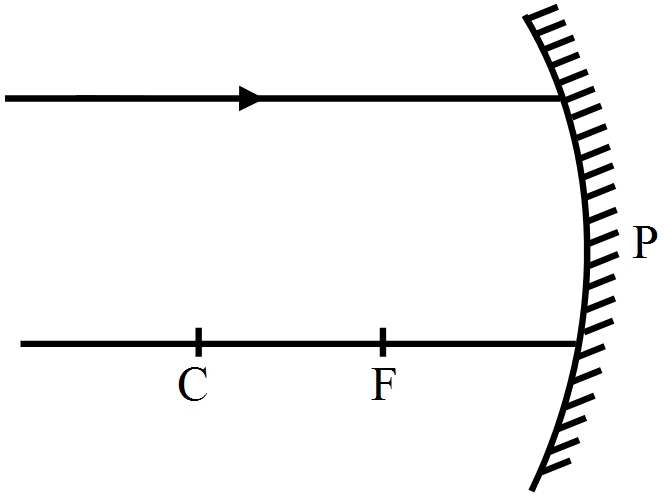

- 3Redraw the following diagram on your answer sheet and show the path of the reflected ray. Also mark the angle of incidence $(\angle\text{i})$ and the angle of reflection $(\angle\text{r})$ on the diagram.View Solution
