PART - 2 CH - 14 Waves — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsPART - 2 CH - 14 Waves2 Marks
Question
A disturbance pulse takes 0.2 second to travel across a long wire and return. Tension is created in the wire by continuously hanging a weight 100 times the total weight of the wire on a pulley. Find the total length of the wire. Here g = 9.8 m/s.
✓

Answer

For the velocity of non-progressive wave.
$ \begin{aligned} v & =\sqrt{\frac{T}{m}} \\ v & =\sqrt{\frac{m \times l \times 100 \times g}{m}} \\ & {[\because \text { Total weight of wire }=(m l) g] } \\ \therefore v & =\sqrt{100 l g}\ldots\ldots (1) \end{aligned} $
Given : $\quad t=0.2=\frac{2 l}{ v }=\frac{2 l}{\sqrt{100 l g}}$
Put value from equation (1)
Taking square both side
$ \Rightarrow \quad(0.2)^2=\frac{4 l^2}{100 l g} $
$\Rightarrow \quad 0.04=\frac{4 l^2}{100 l g}$
$\Rightarrow \quad 0.04 \times 100=\frac{4 l}{g}$
$\begin{array}{ll}\Rightarrow & 4=\frac{4 l}{g} \\ \Rightarrow & l=g=9.8 meter\end{array}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from PART - 2 CH - 14 Waves→PART - 2 CH - 14 Waves — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Two bombs of 20kg and 30kg are thrown from a cannon with the same velocity in the same direction. Which bomb will reach the ground first?
→
A farsighted person cannot see objects placed closer to 50cm. Find the power of the lens needed to see the objects at 20cm.
→
Explain the difference between weight and mass.
→
A ball is thrown vertically upward with a speed of 20m/s. Draw a graph showing the velocity of the ball as a function of time as it goes up and then comes back.
→
If the earth were made of lead of relative density 11.3 , what then would be the value of acceleration due to gravity on the surface of the earth? Radius of the earth $=6.4 \times 10^6 m$ and $G =6.67 \times 10^{-11} Nm ^2 kg^{-2}$.
→

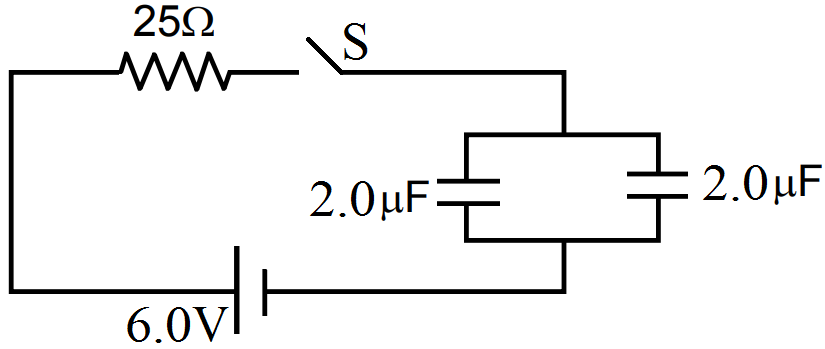

Find the charge on each of the capacitors 0.20ms after the switch S is closed in the figure.
→
