A galvanometer gives full scale deflection with $0.006$ A current. By connecting it to a $4990 \ \Omega$ resistance, it can be converted into a voltmeter of range $0-30 \ V$. If connected to a $\frac{2 n }{249} \Omega$ resistance, it becomes an ammeter of range $0-1.5 \ A$. The value of $n$ is:
  • A
    $2$
  • B
    $3$
  • C
    $4$
  • D
    $5$
✓

Answer

$\frac{6}{1000}(G+4990)=30 $

$\Rightarrow G+4990=\frac{30,000}{6}=5000 $

$\Rightarrow G=10 $

$\frac{6}{1000} \times 10=\left(1.5-\frac{6}{1000}\right) S $

$\Rightarrow S =\frac{60}{1494}=\frac{2 n}{249} $

$\Rightarrow=\frac{249 \times 30}{1494}=\frac{2490}{498}=5$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "MCQ" from Magnetic Effect of Current→Magnetic Effect of Current — all question types→JEE physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

In the circuit as shown in the figure, the heat produced by $6$ oh resistance due to current flowing in it is $60$ calorie per second. Th heat generated across $3\ ohm$ resistance per second will be
→
In charging a battery of motor-car, the following effect of electric current is used
→
The number of turns in the coil of an ac generator is $5000$ and the area of the coil is $0.25 \mathrm{~m}^2$. The coil is rotated at the rate of $100$ cycles $/ \mathrm{sec}$ in a magnetic field of $0.2 \mathrm{~W} / \mathrm{m}^2$. The peak value of the emf generated is nearly
→
In a region of uniform magnetic induction $B=10^{-2}$ tesla, a circular coil of radius $30 \mathrm{~cm}$ and resistance $\pi \mathrm{ohm}$ is rotated about an axis which is perpendicular to the direction of $B$ and which forms a diameter of the coil. If the coil rotates at $200 \mathrm{rpm}$ the amplitude of the alternating current induced in the coil is
→
A uniform cube is subjected to volume compression. If each side is decreased by $1 \%$, then bulk strain is
→
Bulk modulus was first defined by
→
The temperature of a piece of iron is $27^{\circ} \mathrm{C}$ and it is radiating energy at the rate of $Q \mathrm{kWm}^{-2}$. If its temperature is raised to $151^{\circ} \mathrm{C}$, the rate of radiation of energy will become approximately
→
An object accelerates from rest to a velocity $27.5 m / s$ in $10 sec$ then find distance covered by object in next $10 sec$
→
The measurement of voltmeter in the following circuit is


→

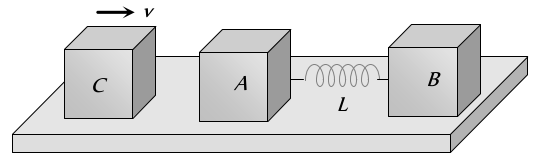

Two blocks $A$ and $B$ each of mass $m$ are connected by a massless spring of natural length $L$ and spring constant $K$. The blocks are initially resting on a smooth horizontal floor with the spring at its natural length as shown in figure. A third identical block $C$ also of mass $m$ moves on the floor with a speed $v$ along the line joining $A$ and $B$ and collides with $A$. ThenImage
→
