Dual Nature of Radiation and Matter — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsDual Nature of Radiation and Matter5 Marks
Question
A horizontal cesium plate ($\phi$ = 1.9eV) is moved vertically downward at a constant speed u in a room full of radiation of wavelength 250 run and above. What should be the minimum value of u so that the vertically upward component of velocity is nonpositive for each photoelectron?
✓

Answer

When $\lambda=250\text{nm}$

Energy of photon

$=\frac{\text{hc}}{\lambda}=\frac{1240}{250}=4.96\text{ev}$

$\therefore\text{K.E.}=\frac{\text{hc}}{\lambda}-\text{w}=4.96-1.9\text{ev.}$

Velocity to be non positive for each photo electron

The minimum value of velocity of plate should be = velocity of photo electron

$\therefore$ Velocity of photo electron $=\sqrt{\frac{2\text{KE}}{\text{m}}}$

$=\sqrt{\frac{3.06}{9.1\times10^{-31}}}$

$=\sqrt{\frac{3.06\times1.6\times10^{-19}}{9.1\times10^{-31}}}=1.04\times10^6\text{m/sec.}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Dual Nature of Radiation and Matter→Dual Nature of Radiation and Matter — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

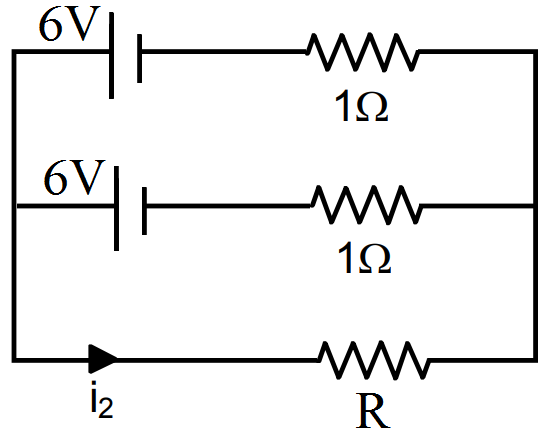

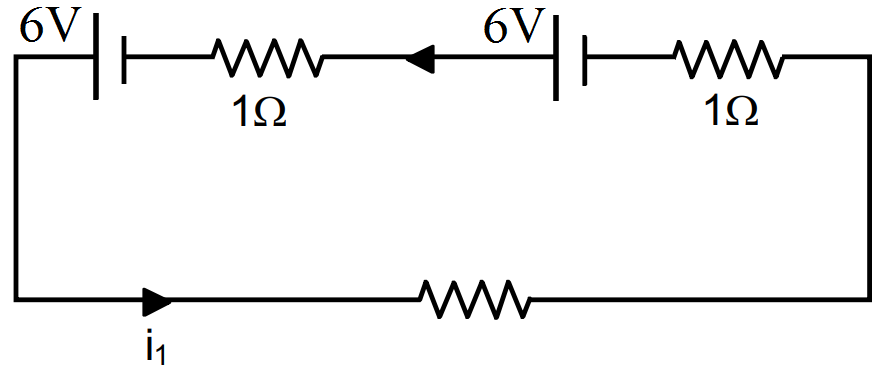

Find the value of $\frac{\text{i}_1}{\text{i}_2}$ in the figure. if (a) $\text{R}=0.1\Omega$ (b) $\text{R}=1\Omega$ and (c) $\text{R}=10\Omega.$ Note from your answers that in order to get more current from a combination of two batteries, they should be joined in parallel if the external resistance is small and in series if the external resistance is large, compared to the internal resistance.

→

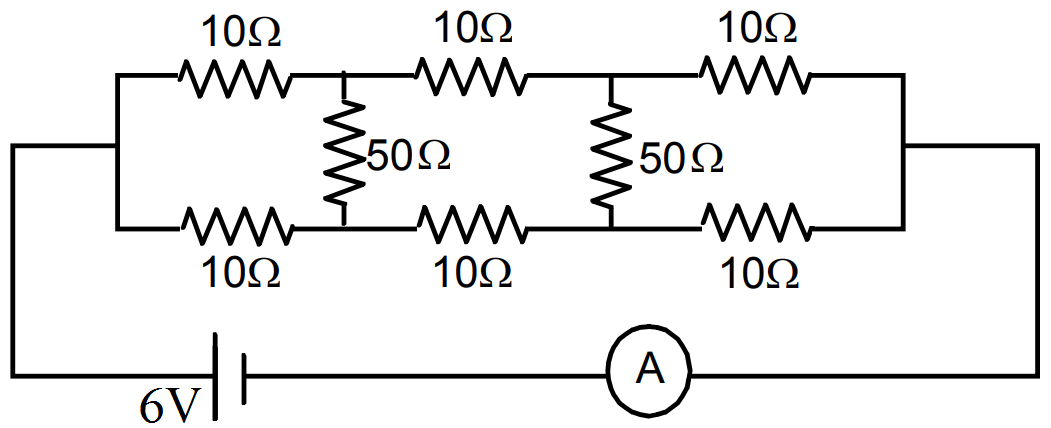

Find the current measured by the ammeter in the circuit shown in the figure.

→
