Question

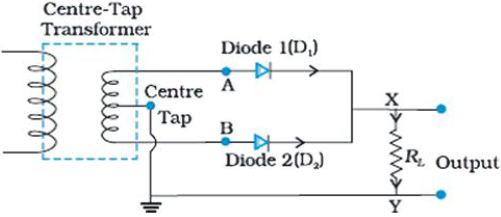

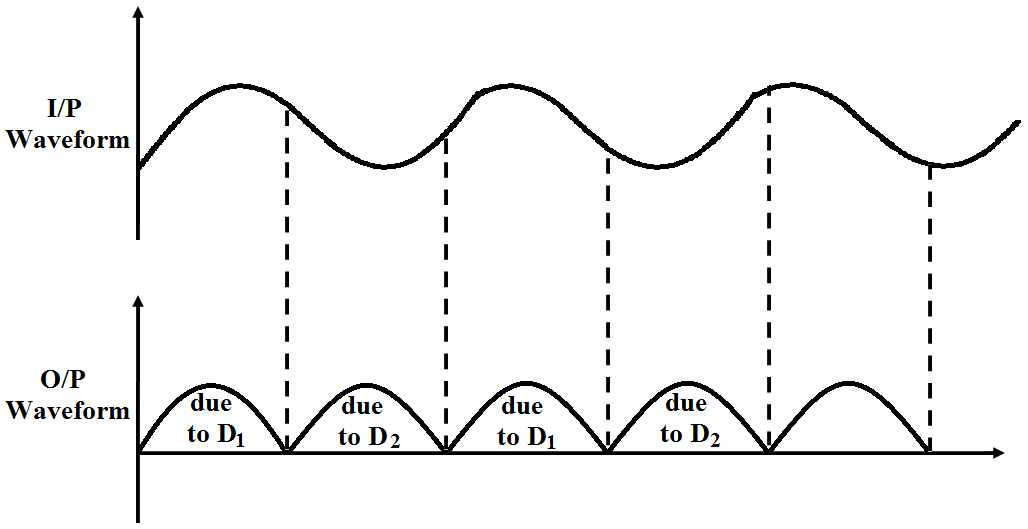

Draw the circuit diagram of a fullwave rectifier using p-n junction diode. Explain its working and show the output, input waveforms.

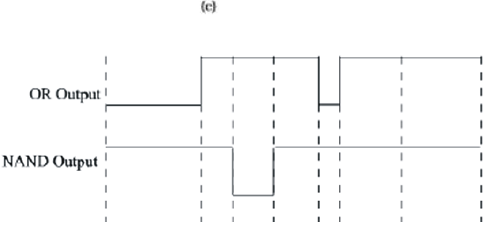

Show the output waveforms (Y) for the following inputs A and B of
1. OR gate.
2. NAND gate.

✓

Answer

Duringfirsthalf cycle:

A is positive w.r.t centre tap but B is negative, hence only diode D₁ conducts and current flows through the load in the sense X to Y.

During the second half cycle:

B is positive w.r.t centre tap but A is negative hence only diode D₂ conducts and again send currents through load from X and Y.

$\therefore$ Current through the load, in both the halves of input, is unidirectional.
