A horizontal right angle pipe bend has crosssectional area $=$ $10 $ $cm^2$ and water flows through it at speed $=$ $20$ $m/s$. The force on the pipe bend due to the turning of water is ........ $N$
Medium
Download our app for free and get started
Mass flowing per sec through pipe is $=$ density $\times$ area $\times$ velocity change in velocity $V \times 2^{\frac{1}{2}}$
force$=(\text {density} \times \text {area} \times \text {velocity}) \times\left(\text {velocity} \times 2^{\frac{1}{2}}\right)$
$=565.7 N$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionConstruction of submarines is based on
- 2A sphere of solid material of relative density $9$ has a concentric spherical cavity and floats having just sinked in water. If the radius of the sphere be $R$, then the radius of the cavity $(r)$ will be related to $R$ as :-View Solution
- 3The density $\rho $ of water of bulk modulus $B $ at a depth y in the ocean is related to the density at surface ${\rho _0}$ by the relationView Solution
- 4There is a $1\, mm$ thick layer of glycerine between a flat plate of area $100\, cm^2$ and a big plate. If the coefficient of viscosity of glycerine is $1.0\, kg\, (m-s)$, then ....... $N$ force is required to move the plate with a velocity of $7\, cm/s$ .View Solution

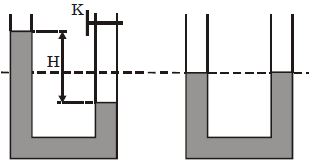

- 5A $U$ -tube of small and uniform cross section contains water of total length $4H$. The height difference between the water columns on the left and on the right is $H$ when the valve $K$ is closed. The valve is suddenly open, and water is flowing from left to right. Ignore friction. The speed of water when the heights of the left and the right water columns are the same, is :-View Solution
