A large square container with thin transparent vertical walls and filled with water (refractive index $\frac{4}{3}$ ) is kept on a horizontal table. A student holds a thin straight wire vertically inside the water $12 cm$ from one of its corners, as shown schematically in the figure. Looking at the wire from this corner, another student sees two images of the wire, located symmetrically on each side of the line of sight as shown. The separation (in $cm$ ) between these images is . . . . .

A
$1.60$
B
$1.65$
✓
$1.73$
D
$1.75$

✓

Answer

Correct option: C.

$1.73$

c

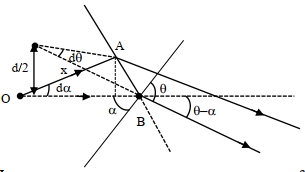

We will assume that observer sees the image of object through edge $\Rightarrow \alpha=45^{\circ}$

$AB =\frac{12 d \alpha}{\cos \alpha}=\frac{ xd \theta}{\cos \theta}$

By applying Snell's Law

$\frac{4}{3} \sin \alpha=1 \sin \theta$

$\frac{4}{3} \cos \alpha d \alpha=\cos \theta d \theta$

$\Rightarrow \frac{9}{\cos ^2 \alpha}=\frac{x}{\cos ^2 \theta}$

$1 \sin \theta=\frac{4}{3} \sin \alpha$

$\Rightarrow \sin \theta=\frac{2 \sqrt{2}}{3} \Rightarrow x=18 \times \frac{1}{9}=2$

$d=2 x \sin (\theta-\alpha)$

$=4 \times \frac{1}{\sqrt{2}}\left(\frac{2 \sqrt{2}}{3}-\frac{1}{3}\right)=\frac{8-2 \sqrt{2}}{3} \approx 1.73 \approx 2$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Water is filled in a cylindrical container to a height of $3m. $ The ratio of the cross-sectional area of the orifice and the beaker is $ 0.1. $ The square of the speed of the liquid coming out from the orifice is ....... $m^2/s^2$ ($g = 10 m/s^2$)

A 3 m long wire of radius 3 mm shows an extension of 0.1 mm when loaded vertically by a mass of 50 kg in an experiment to determine Young's modulus. The value of Young's modulus of the wire as per this experiment is $\mathrm{P} \times 10^{11} \mathrm{Nm}^{-2}$, where the value of $P$ is: (Take $\left.g=3 \pi \mathrm{~m} / \mathrm{s}^{2}\right)$

A rod of length is $3 \;m$ and its mass acting per unit length is directly proportional to distance $x$ from one of its end then its centre of gravity from that end will be at

If a copper wire is stretched to increase its length by $20 \% $. The percentage increase in resistance of the wire is $..........\%$

In the circuit shown initially $C_1, C_2$ are uncharged. After closing the switch

A particle of mass $m$ moving towards west with speed $v$ collides with another particle of mass $m$ moving towards south. If two particles stich to each other, the speed of the new particle of mass $2 m$ will be ..........

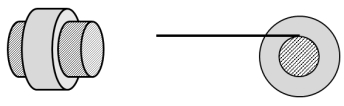

A small roller of diameter $20 cm$ has an axle of diameter $10 cm$ (see figure below on the left). It is on a horizontal floor and a meter scale is positioned horizontally on its axle with one edge of the scale on top of the axle (see figure on the right). The scale is now pushed slowly on the axle so that it moves without slipping on the axle, and the roller starts rolling without slipping. After the roller has moved $50 cm$, the position of the scale will look like (figures are schematic and not drawn to scale)-
