Question
A long charged cylinder of linear charge density $+\lambda_1$ is surrounded by a hollow coaxial conducting cylinder of linear charge density $-\lambda_2$. Use Gauss’s law to obtain expressions for the electric field at a point (i) in the space between the cylinders, and (ii) outside the larger cylinder.

Answer

As Gauss’s Law states:$\oint\overrightarrow{E}.\vec{ds}=\frac{q}{\epsilon_0}$
  1. $\oint\overrightarrow{E_1}.\vec{ds}=\frac{\lambda_1l}{\epsilon_0}$
$\Longrightarrow\overrightarrow{E_1}=\frac{\lambda_1}{2\pi\epsilon_0r_1}\hat{r_1}$
  1. $\oint\overrightarrow{E_2}.\vec{ds}=\frac{(\lambda_1-\lambda_2)l}{\epsilon_0}$
$\Longrightarrow\overrightarrow{E_2}=\frac{(\lambda_1-\lambda_2)}{2\pi\epsilon_0r_2}\hat{r_2}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

You are given two circuits as shown in Fig. 14.46, which consist of NAND gates. Identify the logic operation carried out by the two circuits.
  1.
  1.
Prove that the instantaneous rate of change of the activity of a radioactive substance is inversely proportional to the square of its half-life.

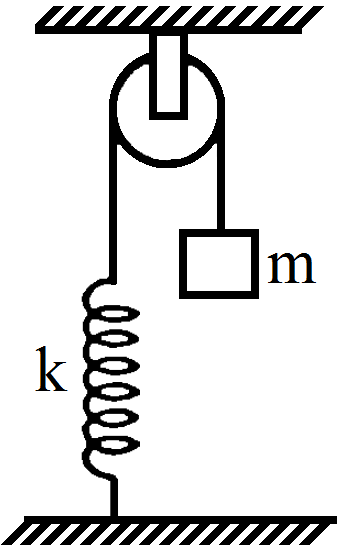

The string, the spring and the pulley shown in figure are light. Find the time period of the mass m.
