Question
A parallel beam of monochromatic light is incident on a narrow rectangular slit of width $1\,mm$. When the diffraction pattern is seen on a screen placed at a distance of $2\,m$. the width of principal maxima is found to be $2.5\,mm$. The wave length of light is-$.............\mathring A$
✓

Answer

a
(a)

Here the width of principal maxima is $2.5\,mm$, therefore its half width is $\frac{\beta}{2}=\frac{2.5}{2}=1.25 \times 10^{-3}\,m$

Diffraction angle $\theta=\frac{\beta / 2}{ D }=\frac{1.25 \times 10^{-3}}{2}$

$\therefore a \theta=\lambda \therefore \theta=\lambda / a =\frac{1.25 \times 10^{-3}}{2}$

$\lambda=\frac{1.25 \times 10^{-3}}{2} \times a =\frac{1.25 \times 10^{-3} \times 10^{-3}}{2}$

$\lambda=6.25 \times 10^{-7} m =6250 \mathring A$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

An air filled parallel plate capacitor has capacity $C$. If distance between plates is doubled and it is immersed in a liquid then capacity becomes twice. Dielectric constant of the liquid is
→
The self-induced $e.m.f$. in a $0.1\, H$ coil when the current in it is changing at the rate of $200$ $ampere/second$ is......$V$
→
A man standing in front of a mountain beats a drum at regular intervals. The rate of drumming is generally increased and he finds that the echo is not heard distinctly when the rate becomes $40$ per minute. He then moves nearer to the mountain by $90 m$ and finds that echo is again not heard when the drumming rate becomes $60$ per minute. The distance between the mountain and the initial position of the man is .... $m$
→
The acceleration due to gravity at a height $1\, km$ above the earth is the same as at a depth $d$ below the surface of earth. Then  $d\,=$ ......... $km$
→
Four lenses of focal length $+ 15\, cm, + 20\,cm, + 150\,cm$ and $+ 250\, cm$ are available for making an astronomical telescope. To produce the largest magnification, the focal length of the eye-piece should be.....$cm$
→
A spring mass system executes damped harmonic oscillations given by the equation

$y = A{e^{ - \frac{{bt}}{{2m}}}}\sin (\omega 't + \phi )$

where the symbols have their usual meanings. If a $2\ kg$ mass $(m)$ is attached to a spring of force constant $(K)$ $1250\ N/m$ , the period of the oscillation is $\left( {\pi /12} \right)s$ . The damping constant $‘b’$ has the value. ..... $kg/s$

→
Let $\mathop A\limits^ \to  $ be a unit vector along the axis of rotation of a purely rotating body and $\mathop B\limits^ \to  $ be a unit vector along the velocity of a particle $ P$ of the body away from the axis. The value of $\mathop A\limits^ \to  .\mathop B\limits^ \to  $ is
→
A moving coil galvanometer has $100$ turns and each turn has an area of $2.0 \mathrm{~cm}^2$. The magnetic field produced by the magnet is $0.01 \mathrm{~T}$ and the deflection in the coil is $0.05$ radian when a current of $10 \mathrm{~mA}$ is passed through it. The torsional constant of the suspension wire is $\mathrm{x} \times 10^{-5} \mathrm{~N}-\mathrm{m} / \mathrm{rad}$. The value of $\mathrm{x}$ is____.
→
In the circuit shown the cells $A$ and $B$ have negligible resistance. For $V _{ A }=12\; V , R _{1}=500\; \Omega$ and $R =100\; \Omega$ the galvanometer $(G)$ shows no deflection. The value of $V_{B}$ is .... $V$
→

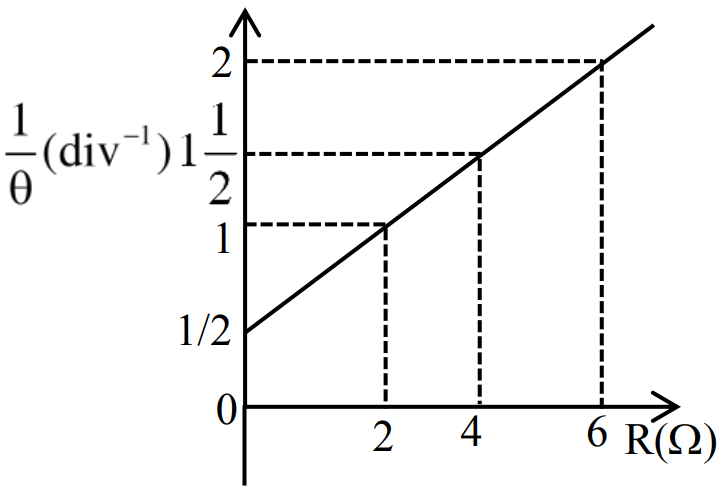

In the experiment to determine the galvanometer resistance by half $-$ deflection method, the plot of $\frac{1}{\theta}$ vs the resistance $(R)$ of the resistance box is shown in the figure. The figure of merit of the galvanometer is $........ \times 10^{-1} A$ division. $[$The source has emf $2V]$

→
