A parallel-plate capacitor having plate area 20cm2 and separation between the plates 1.00mm is connected to a battery of 12.0V. The plates are pulled apart to increase the separation to 2.0mm.
  1. Calculate the charge flown through the circuit during the process.
  2. How much energy is absorbed by the battery during the process?
  3. Calculate the stored energy in the electric field before and after the process.
  4. Using the expression for the force between the plates, find the work done by the person pulling the plates apart.
  5. Show and justify that no heat is produced during this transfer of charge as the separation is increased.
✓

Answer

Area = a = 20cm2 = 2 × 10-2m2

d = Separation = 1mm = 10-3m

$\text{C}_{\text{i}}=\frac{\in_0\times2\times10^{-3}}{10^{-3}}=2\in_0$

$\text{C}_{\text{f}}=\frac{\in_0\times2\times10^{-3}}{2\times10^{-3}}=\in_0$

$\text{q}_{\text{i}}=24\in_0$

$\text{q}_{\text{f}}=12\in_0$

  1. So, q flown out $12\in_0.$ i.e., qi - qf

So, q = 12 × 8.85 × 10-12 = 106.2 × 10-12C = 1.06 × 10-10C

  1. Energy absorbed by battery during the process

= q × v = 1.06 × 10-10C × 12

= 12.7 × 10-10J

  1. Before the process

$\text{E}_{\text{i}}=\Big(\frac{1}{2}\Big)\times\text{C}_{\text{i}}\times\text{V}^2$

$=\Big(\frac{1}{2}\Big)\times2\times8.85\times10^{-12}\times144$

$=12.7\times10^{-10}\text{J}$

After the force

$\text{E}_{\text{f}}=\Big(\frac{1}{2}\Big)\times\text{C}_{\text{f}}\times\text{V}^2$

$=\Big(\frac{1}{2}\Big)\times8.85\times10^{-12}\times144$

$=6.35\times10^{-10}\text{J}$

  1. Workdone = Force × Distance

$=\frac{1}{2}\frac{\text{q}^2}{\in_0\text{A}}=1\times10^{3}$

$=\frac{1}{2}\times\frac{12\times12\times\in_0\times\in_0\times10^{-3}}{\in_0\times2\times10^{-3}}$

  1. From (c) and (d) we have calculated, the energy loss by the separation of plates is equal to the work done by the man on plate. Hence no heat is produced in transformer.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Long Answer Type Questions [5M]" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

Figure shows a situation similar to the previous problem. All parameters are the same except that a battery of emf $\in$ and a variable resistance R are connected between O and C. The connecting wires have zero resistance. No external force is applied on the rod (except gravity, forces by the magnetic field and by the pivot). In what way should the resistance R be changed so that the rod may rotate with uniform angular velocity in the clockwise direction? Express your answer in terms of the given quantities and the angle $\theta$ made by the rod OA with the horizontal.

→
What is electric dipole? Find and expression for electric potential at any point due to an electric dipole.
→

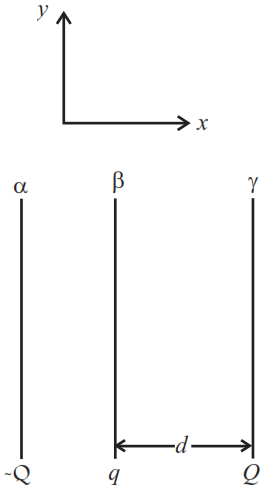

Two fixed, identical conducting plates $(\alpha\ \&\ \beta)$, each of surface area S are charged to -Q and q, respectively, where Q > q > 0. A third identical plate $(\gamma)$, free to move is located on the other side of the plate with charge q at a distance d (Fig.). The third plate is released and collides with the plate $\beta$. Assume the collision is elastic and the time of collision is sufficient to redistribute charge amongst $\beta\ \&\ \gamma$.
