Question
A parallel plate capacitor with air between its plates has a capacitance of 8 pF(1 pF = 10-12F) . What will be the capacitance if the distance between the plates is reduced by half, and the space between them is filled with a substance of dielectric constant 6?
✓

Answer

(i) Here is a parallel plate capacitor, which has air between its plates.
$C_1=\frac{\in_0 A}{d}=8 pF =8 \times 10^{-12} F$
(ii) When a substance of dielectric constant 6 is filled in the space between the plates
$C _2= K \frac{\in_0 A}{d^{\prime}}$
Here it is given K = 6 d' = d / 2
$C _2=\frac{6\left(\in_0 A\right)}{d / 2}=2 \times 6 \times\left(\frac{\in_0 A}{d}\right)$
$C_2=12 C_1$
but $C_1=8 \times 10^{-12} F$
Hence on putting values
$C _2=12 \times 8 \times 10^{-12} F$
$=96 \times 10^{-12} F=96 pF$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

Find the moment of inertia of a uniform square plate of mass m and edge a about one of its diagonals.
→
The centre of mass is defined as $\overrightarrow{\text{R}}=\frac{1}{\text{M}}\sum\limits_\text{i}\text{m}_\text{i}\overrightarrow{\text{r}_{\text{i}}}.$ Suppose we define "centre of charge" as $\overrightarrow{\text{R}}_\text{c}=\frac{1}{\text{Q}}\sum\limits_\text{i}\text{q}_\text{i}\overrightarrow{\text{r}_{\text{i}}}$ where qi represents the ith charge placed at $\overrightarrow{\text{r}_\text{i}}$ and Q is the total charge of the system.
  1. Can the centre of charge of a two-charge system be outside the line segment joining the charges?
  2. If all the charges of a system are in X-Y plane, is it necessary that the centre of charge be in X-Y plane?
  3. If all the charges of a system lie in a cube, is it necessary that the centre of charge be in the cube?
→
Two lenses of power 10D and -5D are placed in contact.
  1. Calculate the power of lens combination.
  2. Where should an object be held from the lens, so as to obtain a virtual image of magnification 2?
→
Find the electric field intensity due to a uniformly charged spherical shell at a point (i) outside the shell and (ii) inside the shell. Plot the graph of electric field with distance from the centre of the shell.
→

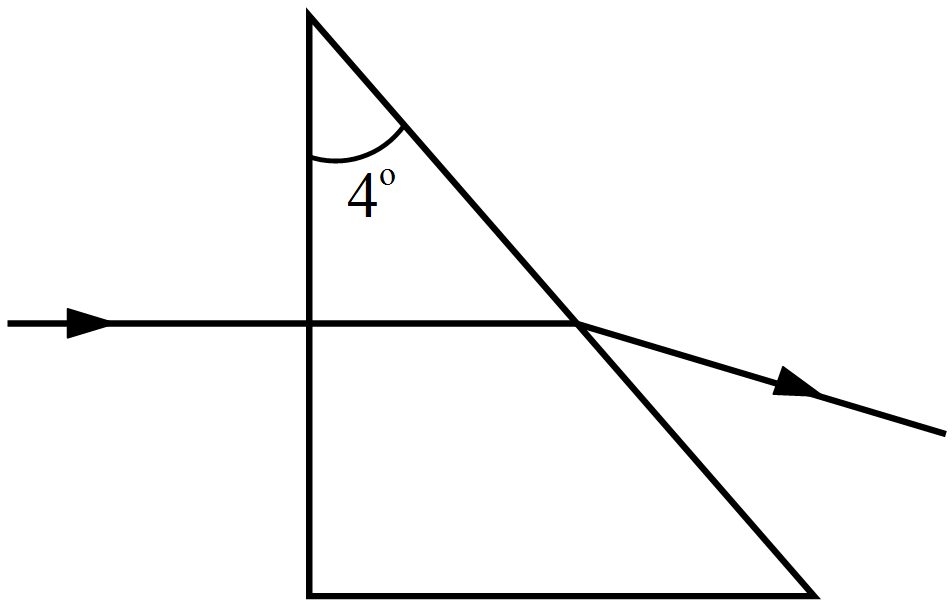

Find the angle of deviation suffered by the light ray shown in figure. The refractive index $\mu=1.5$ for the prism material.

→
